OLED is a self-luminous material, which does not require a backlight board. At the same time, the viewing angle is wide, the image quality is uniform, the reaction speed is fast, the color is easy to be colorized, and the simple driving circuit can be used to achieve illumination, simple process, and can be made into a flexible panel. In line with the principle of light and thin, the application range is small and medium size panels.
Display characteristics: active illumination, large viewing angle range; fast response, stable image, high brightness, rich color and high resolution.
Working conditions: low driving voltage, low energy consumption, and can be matched with solar cells, integrated circuits, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.66 inch 64X48 OLED|Graphic White OLED module | SPI Iterface | 7-pin connector HTM-OLED0.66-01A-W | oled module | 64x48 |
|
19.0X22.9X2.8 | 0.66 | 0.66 | 13.42X10.06 | 90cd/m2 | SPI | EMI Shielding | -40~85℃ | +3.3V | ? 控制器型號： | |||

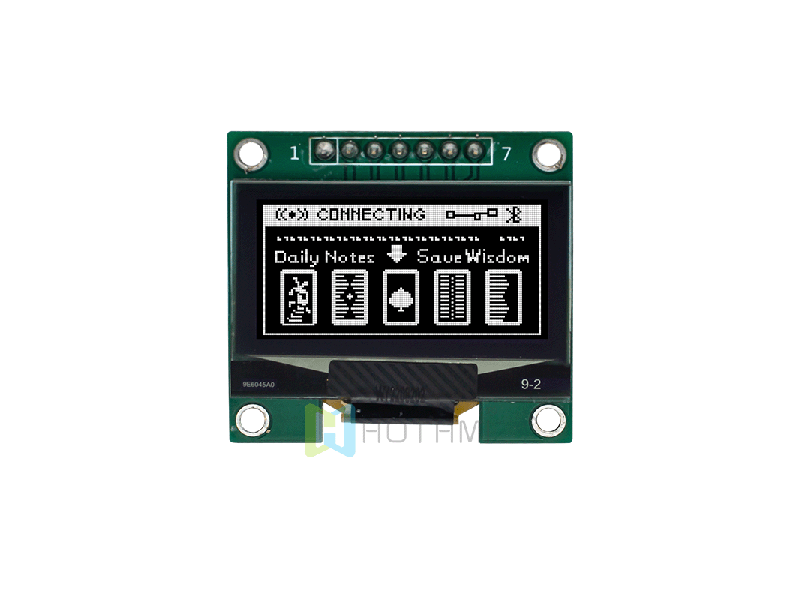

| 1.3 inch 128x64 White Graphic OLED Module MONO DISPLAY SSD1306/HTM-OLED1.30-SPI-W | OLED Module | 128x64 |
|
35.4x33.5x5.0 | 1.3 | 1.3 | 29.42x14.70 | 100cd/m2 | 7pin | SPI | EMI shielding | -40~85℃ | 3.3V | SSD1306/SH1106 | ||

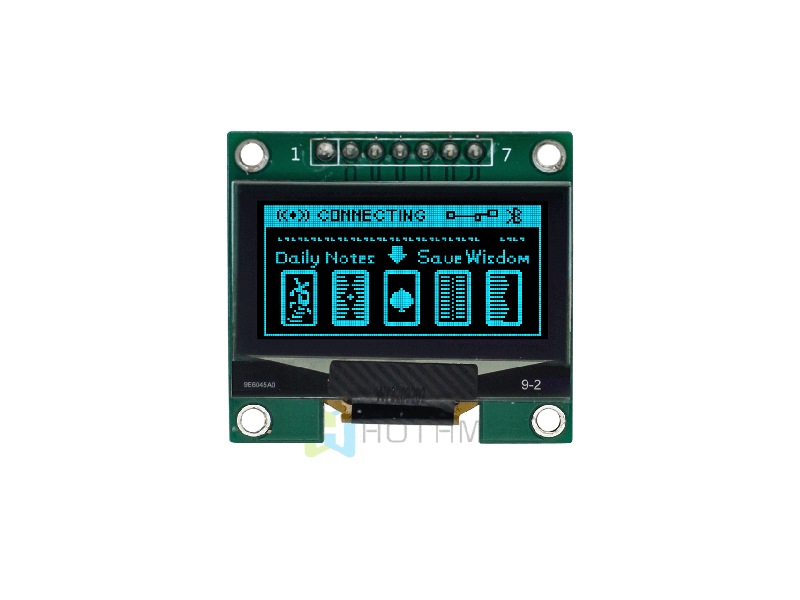

| 1.3 inch 128x64 Blue Graphic OLED Module MONO DISPLAY SSD1306/HTM-OLED1.30-SPI-W | OLED Module | 128x64 |
|
35.4x33.5x5.0 | 1.3 | 1.3 | 29.42x14.70 | 100cd/m2 | 7pin | SPI | EMI shielding | -40~85℃ | 3.3V | SSD1306/SH1106 | ||

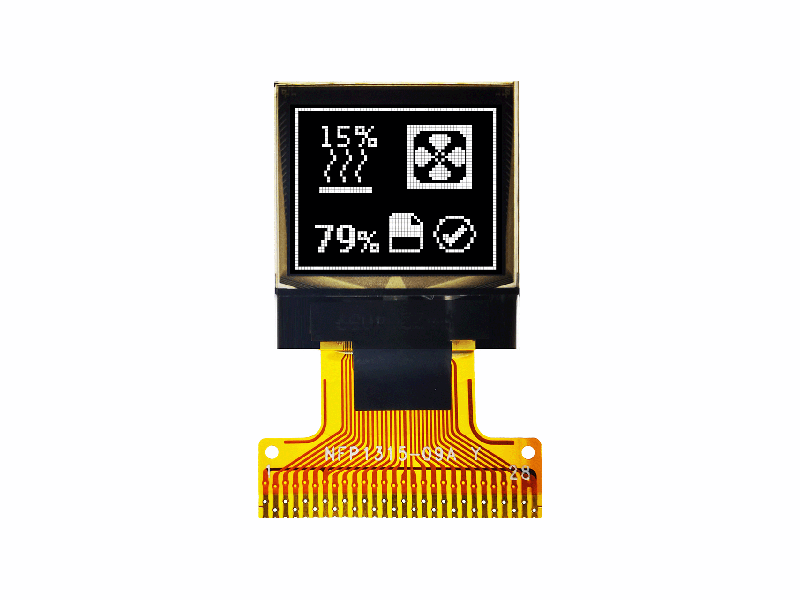

| 0.66 inch 64x48 White Graphic OLED MONO DISPLAY SSD1315/OLED-H066-SPI-W | OLED | 64x48 |
|
16.42x16.9x1.25 | 0.66 | 0.66 | 13.42x10.06 | 190cd/m2 | 28PIN | 8-bit 8080 Parallel, 4-wire SPI, I2C | EMI shielding | -40~85℃ | 3.3V | SSD1315 | ||

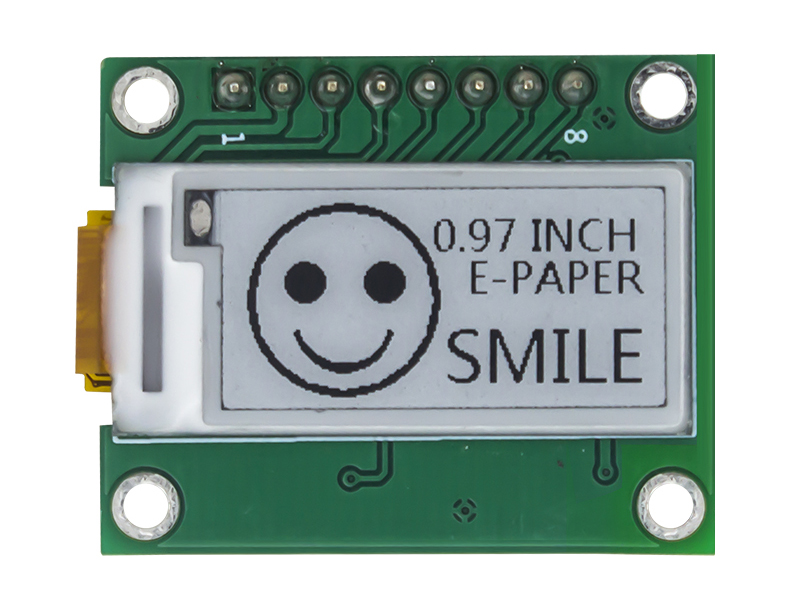

| 0.97" Inch 88x184 COG SSD1680 E-paper Display Module With Equipment Control PCB Frame HTE-P097-SPI | E-paper Display | 88x184 |
|
24x32 | 0.97 | 0.97 | 10.65x22.26 | 12H | 8pin | SPI | Anti-static ESD 8KV | 0~50℃ | 3.3V | SSD1680 | ||
| 0.97" Inch COG 88x184 SSD1680 E-paper Display With Equipment Control HTE-P097 | E-paper Display | 88x184 |
|
14.15x30 | 0.97 | 0.97 | 10.65x22.26 | 12H | SPI | Anti-static ESD 8KV | 0~50℃ | 3.3V | SSD1680 | |||
| 1.5" Inch 128x128 COG SH1107 OLED Display Module With Equipment Control+PCB+Frame OLED150-12828KSWKG01-H25 | OLED Module | 128x128 |
|
33.9x37.3 | 1.5 | 1.5 | 26.855x26.855 | 100cd/m2 | 25pin | SPI | Anti-static ESD 8KV | -40~80℃ | 3.3V | SH1107 | ||

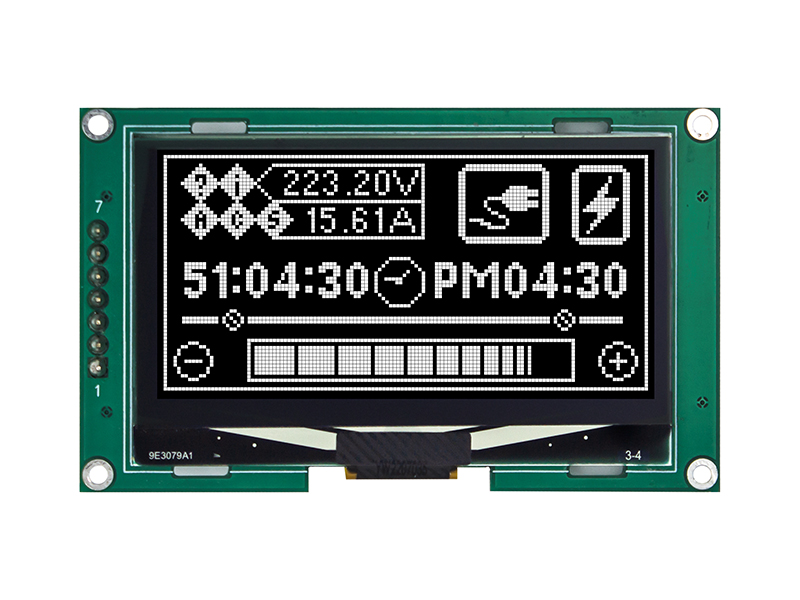

| 2.42" inch 128x64 COG SSD1309 OLED with equipment control+PCB+Frame HTM-OLED2.42-SPI | OLED Module | 128x64 |
|
60.5x37 | 2.42 | 2.42 | 55.01x27.49 | 90cd/m2 | 7pin | SPI | Anti-static ESD 8KV | -40~80℃ | 3.3V | SSD1309 | ||
| OLED Display List | OLED List |
|
0.42"--3.12" | 0.42"--2.7" | -40~+85℃ | |||||||||||

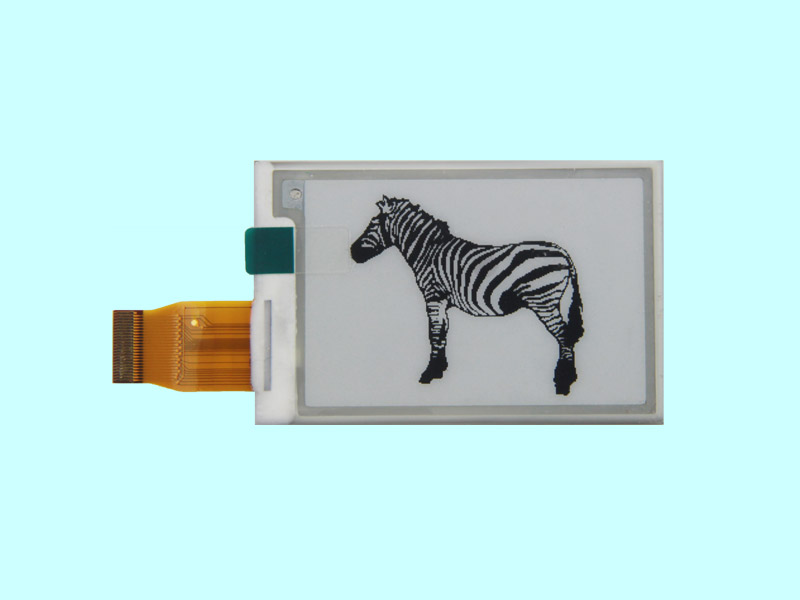

| 2.7'' E-PAPER DISPLAY/HT-ED027W3 | E-PAPER DISPLAY | 264x176 |
|
45.8x70.42x0.98 | 2.7 | 2.7 | 38.192x57.288 | Full View | FPC-24PIN | SPI | -20~70℃ | 3.3v |
