Product type：OLED Module
Show contents：128x64

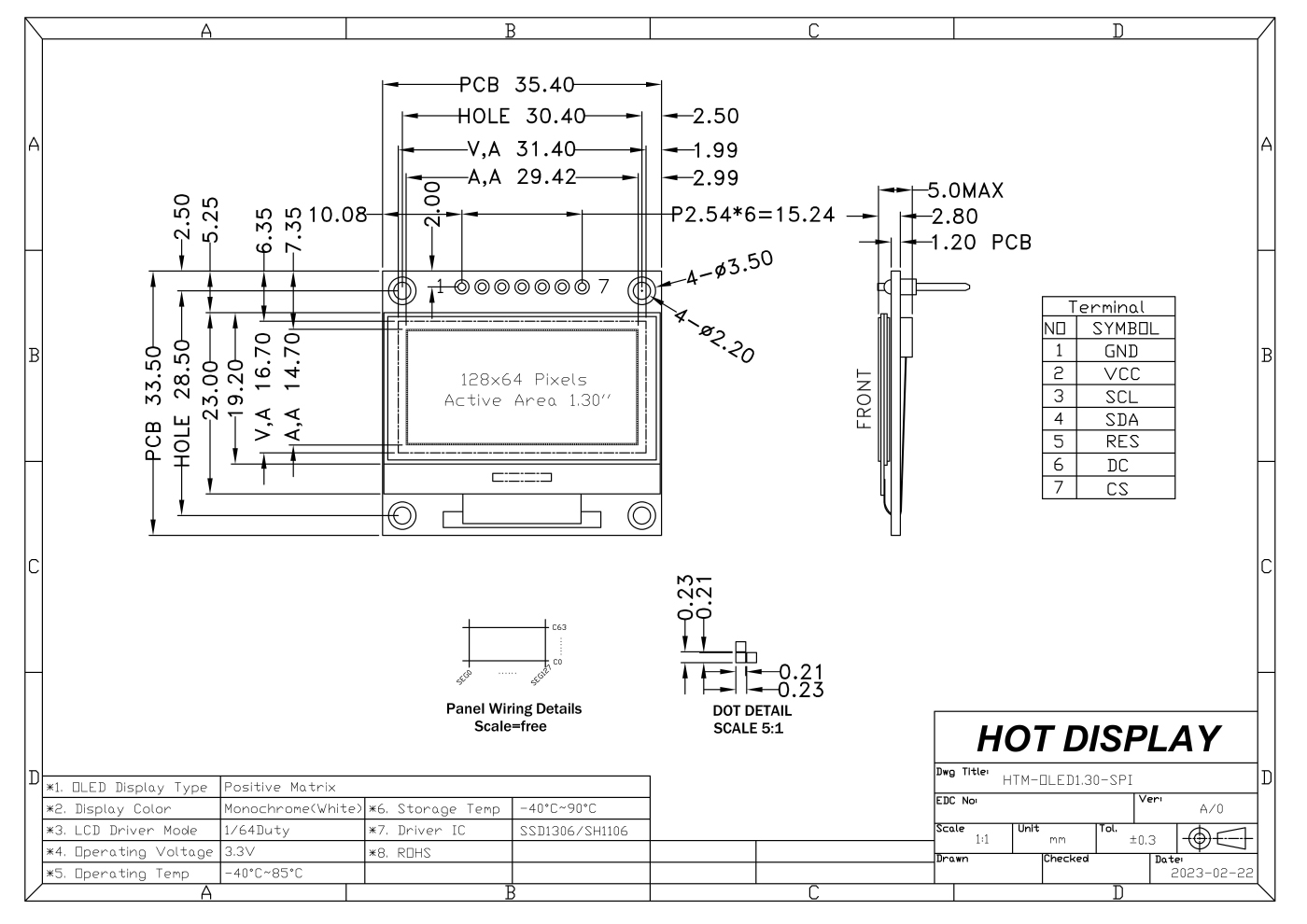

Outline size(mm) ：35.4x33.5x5.0
Size of View Window(mm)：1.3
Display size(mm) ：1.3
Effective size(mm)：29.42x14.70
Product application：Instrumentation
Backlight type or brightness：100cd/m2
Connection PIN Number：7pin
Interface mode：SPI
Special instructions：EMI shielding
Working temperature：-40~85℃
Power supply voltage：3.3V
Driver chip model：SSD1306/SH1106
This 1.30-inch Blue monochrome graphic OLED display features a built-in SSD1306 controller and requires a power supply of 3.3 V. It offers great viewing angles and crisp, vibrant graphics. The display module can be interfaced using either serial or parallel communication. It operates in a wide temperature range of -40 to 85 degrees Celsius, making it ideal for use in a variety of environments, including harsh ones. The display is compatible with Arduino and other popular development boards. It also comes with a touchscreen and EMI-shielded FPC.and is RoHS compliant.
