Location:Home  >  Product Center  >  Smart TFT Modules | RS232| UART|CAN|| WIth Board/Touch
Smart TFT Modules | RS232| UART|CAN|| WIth Board/Touch

The intelligent serial screen (resistive touch) is a new series of products introduced by Xin Hongtai HOTLCD. It has a wide range of display sizes. The products are widely used in various industrial industrial control fields with excellent product performance.
All display and operation of Xin Hongtai intelligent LCD module are based on the variable configuration file preset in the module. When using, the interface designed by the computer can be switched into the intelligent display module through the interface to switch and refresh between different display interfaces.

Screening results
Checklist Model Product type Show contents Product map Outline size
(mm)
Horizon
(mm)
Display size
mm/inch
Effective size
mm
Visual angle Brightness Pin Interface Instructions Working temperature Voltage Driver chip model

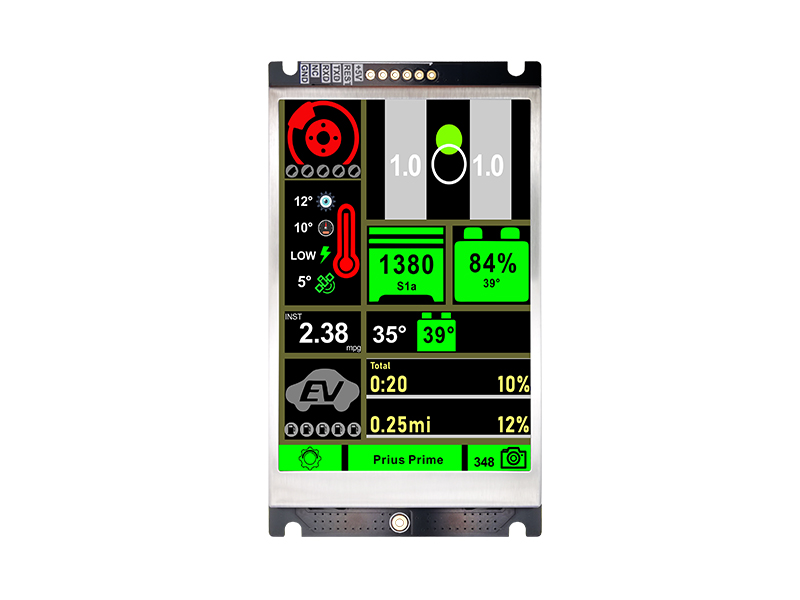

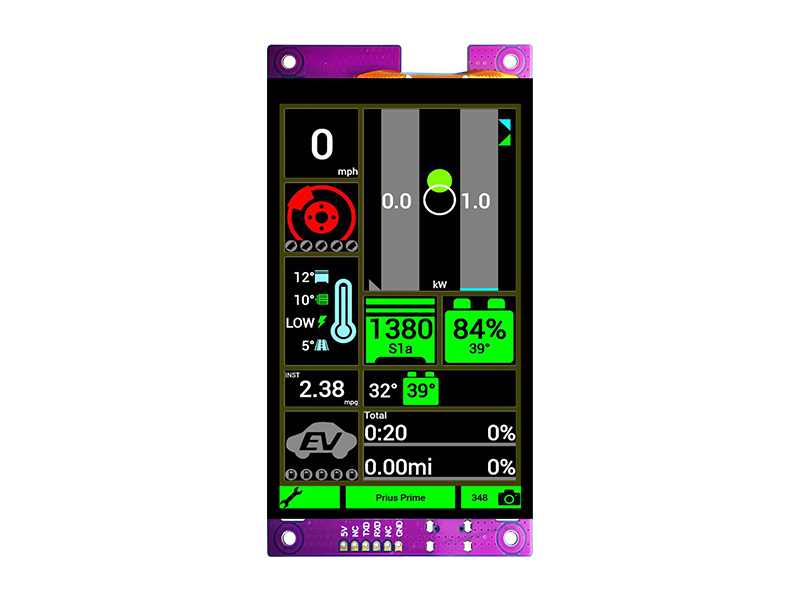

3.5 Inch UART Resistive Touch 320x480 sunlight readable TFT MODULE PANEL Smart Serial Screen HTM-H035A12-UART TFT Module 320x480 57.0x98.0x7.35 3.5 3.5 48.96x73.44 Full view 1000cd/m2 6pin UART/RS232 Anti-static ESD 8KV -20~70℃ 5.0V

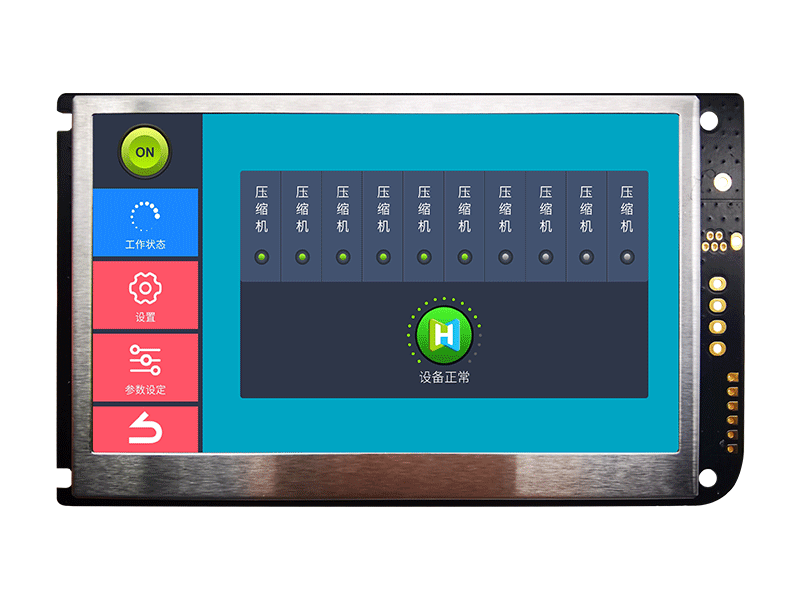

4.3 Inch TFT 480x800 Intelligent Serial Screen Pcap Monitor HTM-TFT043A07-UART TFT Module 480x800 62.46x119.60x13.25 4.3 4.3 56.16x93.60 Full view 350cd/m2 6pin UART/RS232 Anti-static ESD 8KV -20~70℃ 5.0V

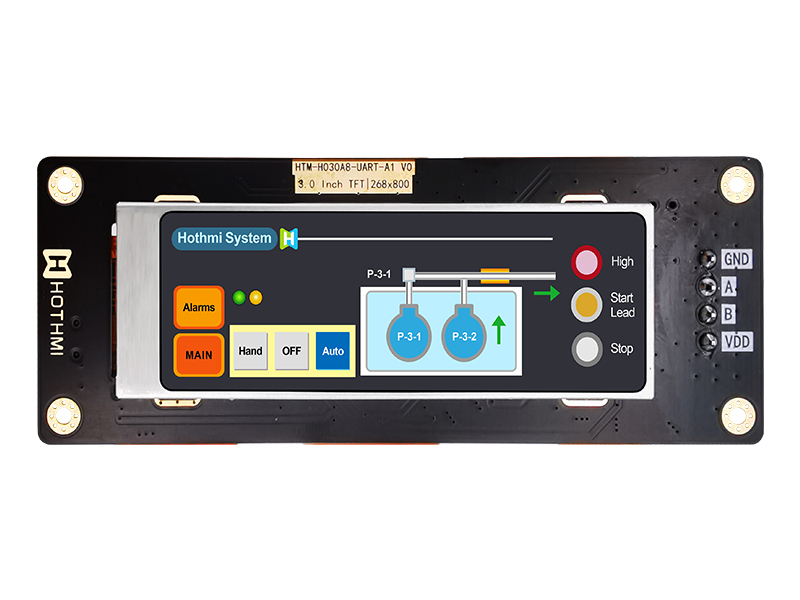

3.0 Inch UART TFT LCD 268x800 Display TFT MODULE PANEL WITH LCD CONTROLLER BOARD HTM030A8-UART TFT Module 268x800 40x110x11.15 3.0 3.0 24.12x72 Full view 800cd/m2 4pin UART/RS232 Anti-static ESD 8KV -20~70℃ 12V~24V

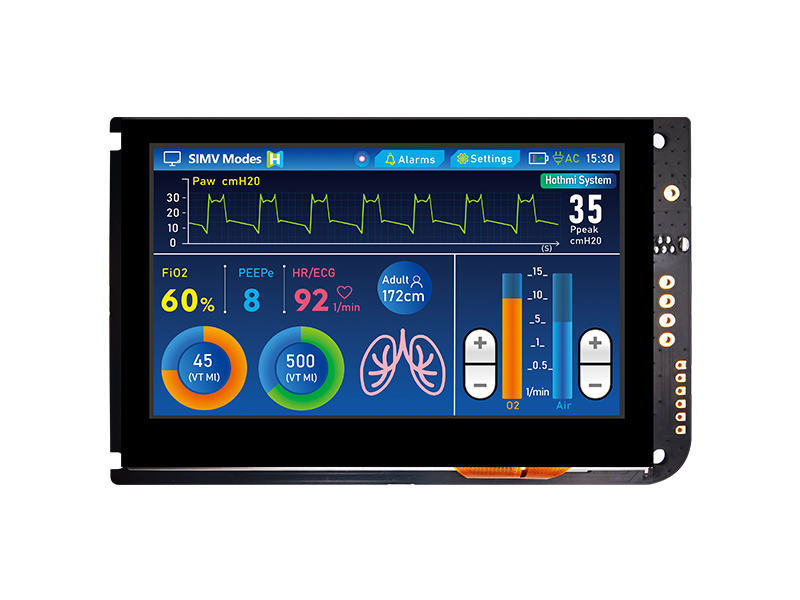

4.3 Inch UART Capacitive Touch Screen TFT LCD 800x480 Display WITH LCD CONTROLLER BOARD HTM-H043A10-UART-CTP TFT Module 800x480 122.5x73.2x7.9 4.3 4.3 95.04x53.86 Full view 500cd/m2 10pin UART/RS232 With capacitive touch function -20~70℃ 5.0V
4.3 Inch UART Capacitive Touch Screen TFT LCD 480x272 Display WITH LCD CONTROLLER BOARD HTM-H043A10-UART232-CTP TFT Module 480x272 122.5x73.2x7.9 4.3 4.3 95.04x53.86 Full view 500cd/m2 10pin UART/RS232 With capacitive touch function -20~70℃ 5.0V

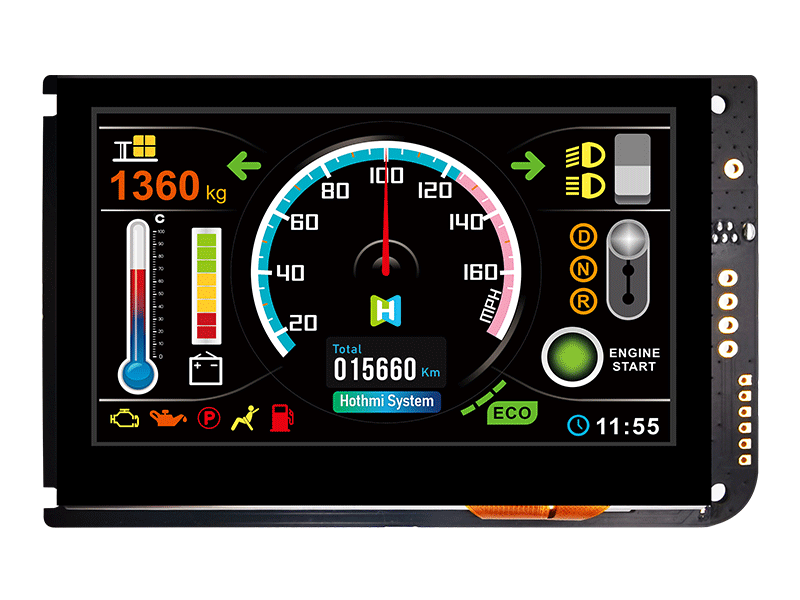

4.3 Inch UART Resistive Touch Screen TFT LCD 800x480 Display WITH LCD CONTROLLER BOARD HTM-H043A2-UART TFT Module 800x480 122.5x73.2x5.0 4.3 4.3 95.04x53.86 Full view 500cd/m2 10pin UART/RS232 Anti-static ESD 8KV -20~70℃ 5.0V
4.3 Inch UART Resistive Touch Screen TFT LCD 480x272 Display WITH LCD CONTROLLER BOARD HTM-H043A2-A5-UART-RTP-480x272 TFT Module 480x272 122.5x73.2x5.0 4.3 4.3 95.04x53.86 Full view 500cd/m2 10pin UART/RS232 Anti-static ESD 8KV -20~70℃ 5.0V

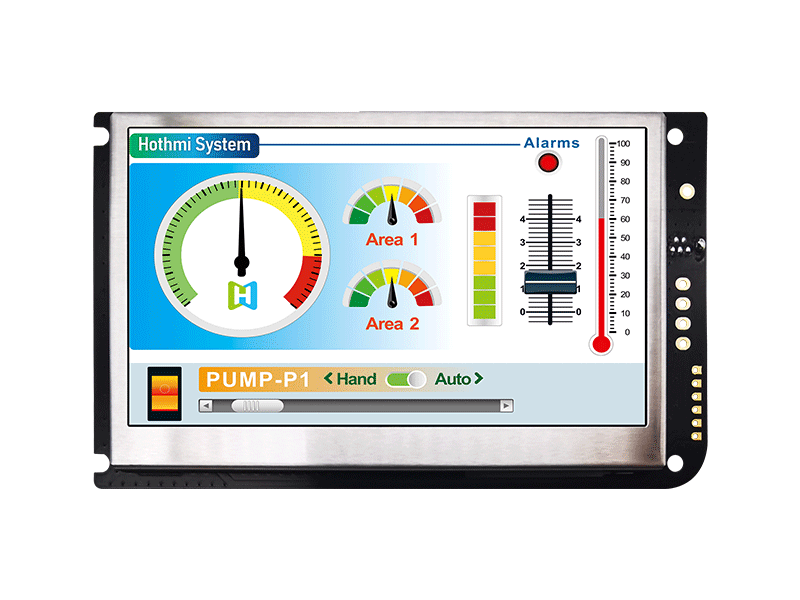

4.3 Inch UART TFT MODULE TFT LCD 800x480 Display PANEL WITH LCD CONTROLLER BOARD HTM-H043A2-A5-UART TFT Module 800x480 122.5x73.2x5.0 4.3 4.3 95.04x53.86 Full view 500cd/m2 10pin UART/RS232 Anti-static ESD 8KV -20~70℃ 5.0V
4.3 Inch UART TFT LCD 480×272 Display TFT MODULE PANEL WITH LCD CONTROLLER BOARD HTM-H043A2-A5-UART TFT帶板模塊 480x272 122.5x73.2x5.0 4.3 4.3 95.04x53.86 Full view 500cd/m2 10pin UART/RS232 Anti-static ESD 8KV -20~70℃ 5.0V

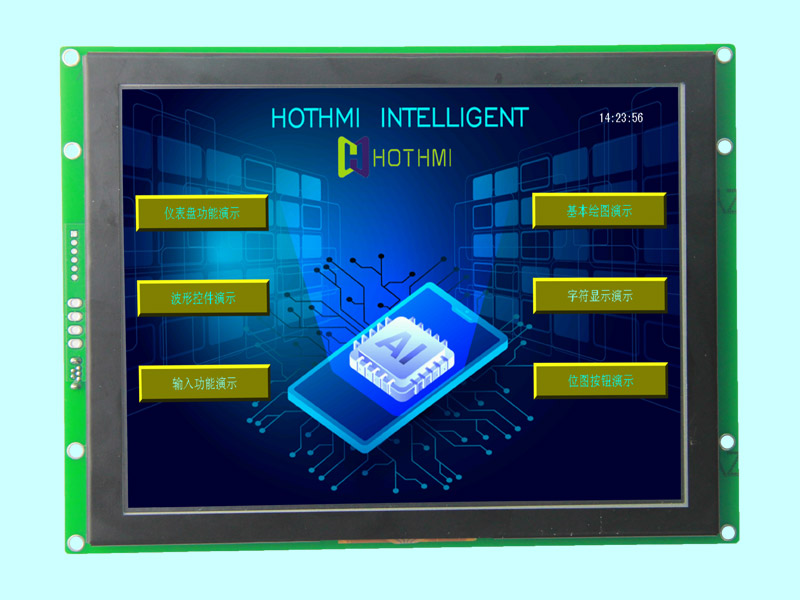

8.0 inch |resistance touch screen | 800 * 600 resolution configuration screen | EzUIH08 TFT LCM 800x600 199.4x148.8x10.1 8.0 8.0 163.0x121.5 6H 300cd/m2 USB+RS232 UART/RS232 Anti-static ESD 8KV -20~70℃ 5.0V
