Location:Home  >  Product Center  >  Smart TFT Modules | RS232| UART|CAN|| WIth Board/Touch
Smart TFT Modules | RS232| UART|CAN|| WIth Board/Touch

The intelligent serial screen (resistive touch) is a new series of products introduced by Xin Hongtai HOTLCD. It has a wide range of display sizes. The products are widely used in various industrial industrial control fields with excellent product performance.
All display and operation of Xin Hongtai intelligent LCD module are based on the variable configuration file preset in the module. When using, the interface designed by the computer can be switched into the intelligent display module through the interface to switch and refresh between different display interfaces.

Screening results
Checklist Model Product type Show contents Product map Outline size
(mm)
Horizon
(mm)
Display size
mm/inch
Effective size
mm
Visual angle Brightness Pin Interface Instructions Working temperature Voltage Driver chip model

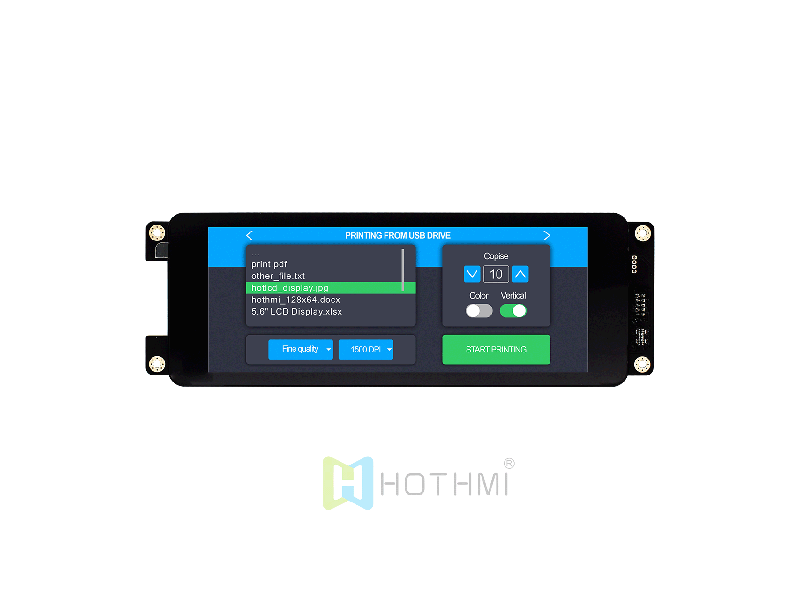

6.86 inch 480x1280 TFT LCD display module URAT intelligent serial port screen capacitive touch HMI IPS/HTMH068A04-UART TFT Module 480x1280 73.5x210.0x.9.25 6.86 6.86 60.192x160.512 Full view 800cd/m2 FPC-10PIN UART(TTL) With capacitive touch function -20~70℃ 5.0V T.B.D

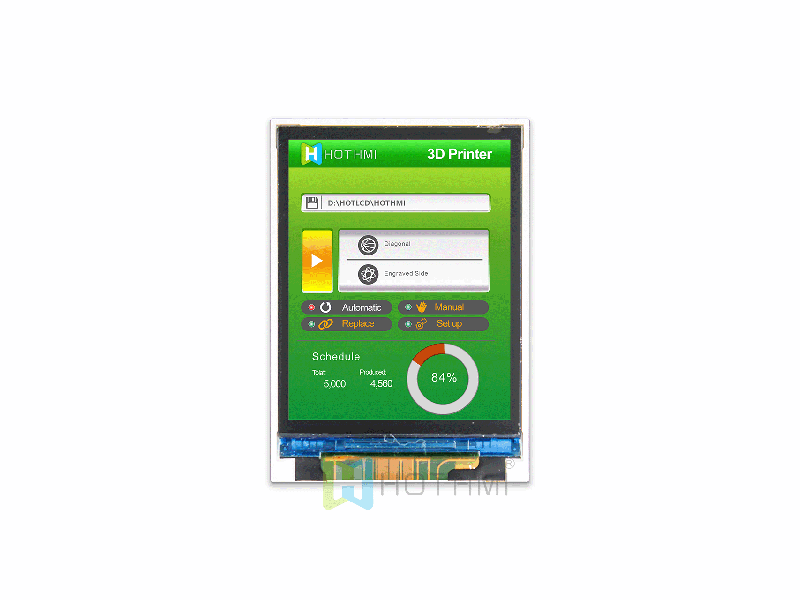

2.0 inch smart serial screen 240x320 pixels IPS UART HMI smart serial screen TFT display module readable under sunlight/LCM-EU020T61NL TFT LCD 240x320 36.0x52.0x5.3 2.0 2.0 30.6x40.8 Full view 750cd/m2 FPC-5PIN UART(TTL) Anti-static ESD 8KV -10~60℃ 5.0V T.B.D

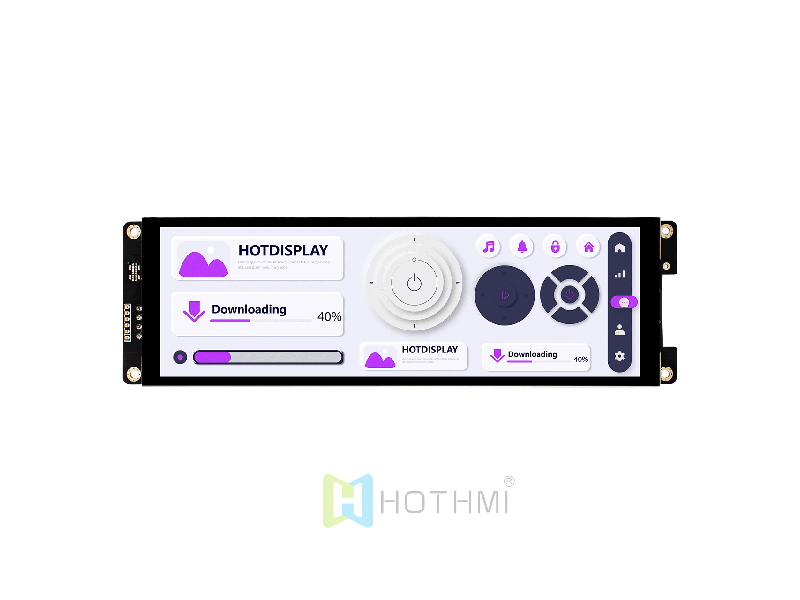

7.84 inch TFT LCD Display MODULE HMI URAT IPS 1280x400 Smart serial port screen Readable sunlight/HTM-H078A02-UART-A01C TFT Module 1280x400 227.5x69.1x11.0 7.84 7.84 190.08x59.40 Full view 600cd/m2 FPC-10PIN UART(TTL) With capacitive touch function -20~70℃ 5.0V T.B.D

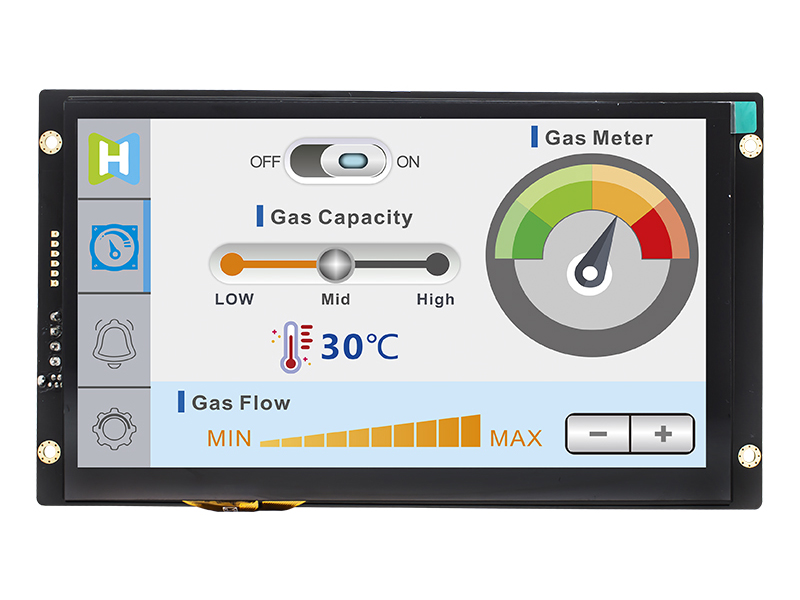

7.0 inch 800x480 px UART TFT smart serial screen with capacitive touch panel readable in sunlight HTM-H070A16-UART-A05 TFT Module 800x480 166.50x108.05 7.0 7.0 153.84x85.63 6H 500cd/m2 10pin UART/RS232 With capacitive touch function -20~70℃ 12V~24V

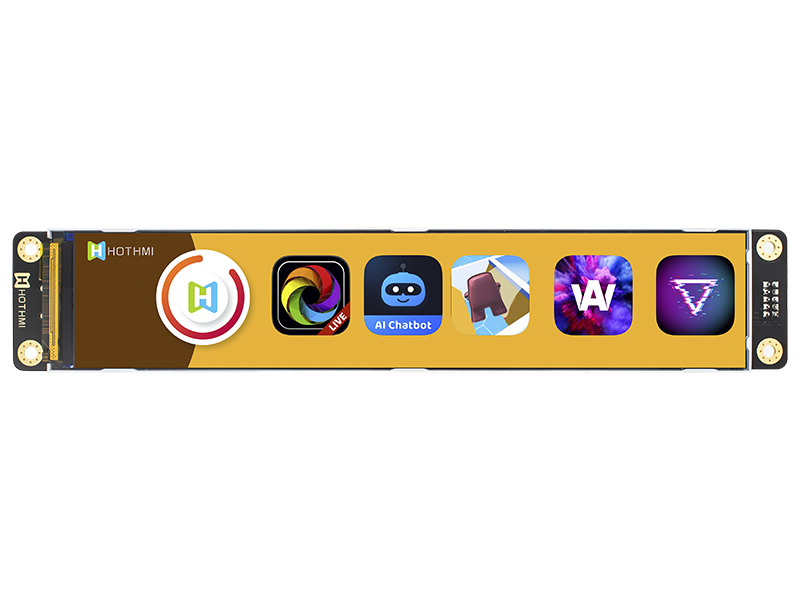

7-inch UART IPS smart serial screen TFT LCD display 280x1424 resolution HTM-H070A18-UART TFT Module 280x1424 206x38.2x5.45 7.0 7.0 170.88x33.6 Full view 500cd/m2 10pin UART/RS232 抗靜電ESD 8KV -20~70℃ 5.0V

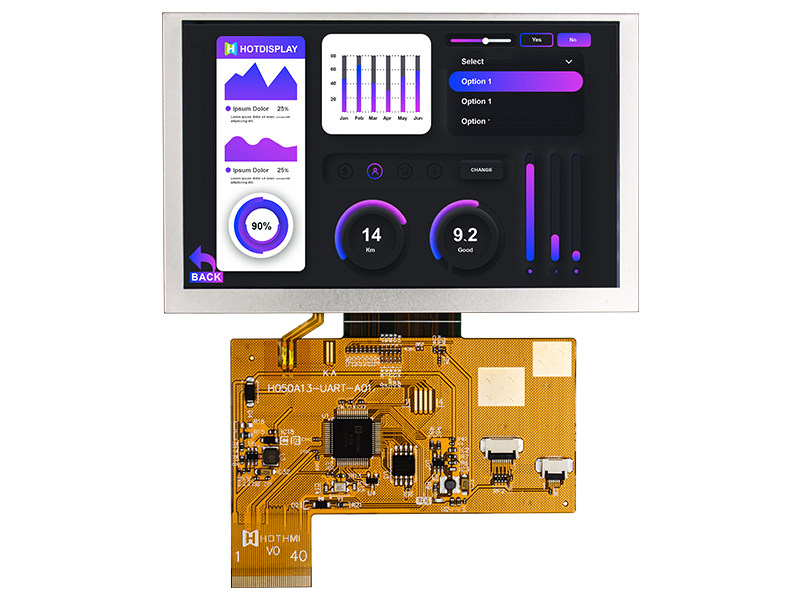

5 Inch 800x480 UART TFT Display With Smart serial screen COF-H050A13-UART-A01 TFT LCD 800x480 120.7x75.8x3.03 5.0 5.0 110x66.8 Full view 1000cd/m2 40pin UART(TTL) Anti-static ESD 8KV -30~70℃ 5.0V

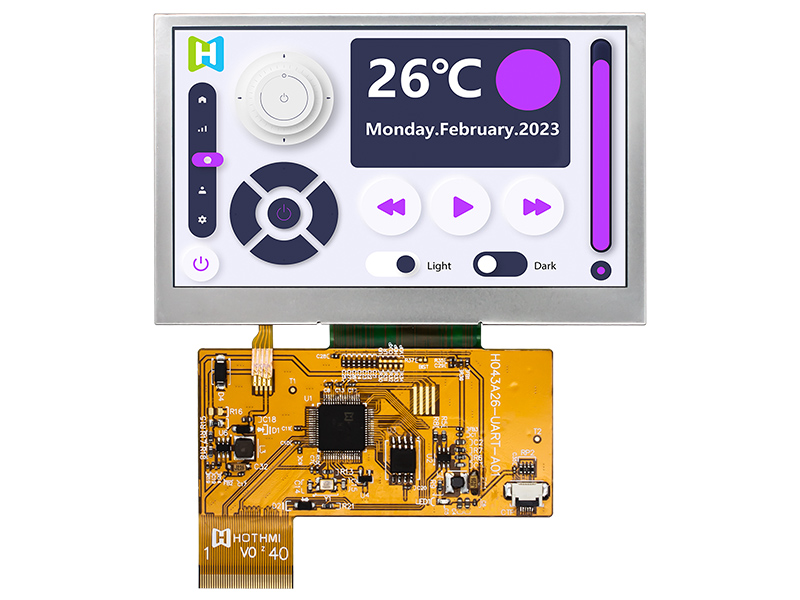

4.3 Inch 800x480 UART TFT Display With Smart serial screen COF-H043A26-UART-A01 TFT LCD 800x480 105.5x67.15x3.05 4.3 4.3 97.22x56.03 Full view 1000cd/m2 40pin UART/RS232 Anti-static ESD 8KV -30~80℃ 5.0V

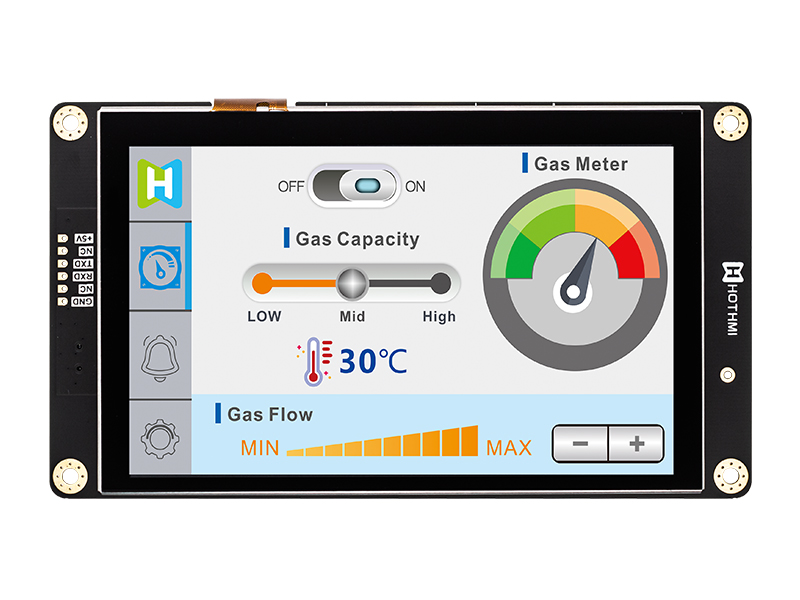

5 Inch Smart Serial Screen 800x480 UART TFT LCD Module Display Panel With Capacitive Touch HTM-H050A1-UART-A5-CTP TFT Module 800x480 143.0x80.0x8.1 5.0 5.0 109.6x66.8 Full view 500cd/m2 6pin UART/RS232 Anti-static ESD 8KV -30~80℃ 5.0V

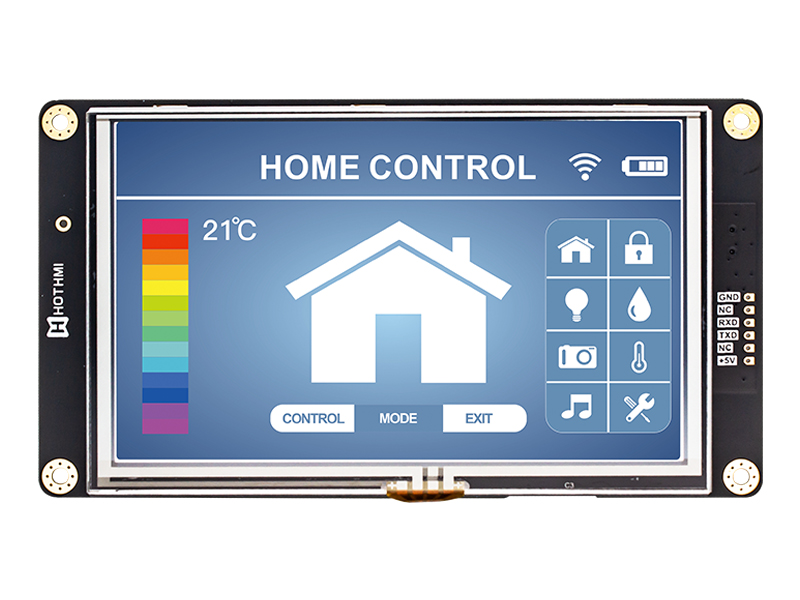

5 inch smart serial screen 800x480 UART TFT LCD module display panel with resistive touch HTM-H050A1-UART-A5-RTP TFT Module 800x480 143x80x8.1 5.0 5.0 109.6x66.8 Full view 500cd/m2 6pin UART/RS232 Anti-static ESD 8KV -30~80℃ 5.0V

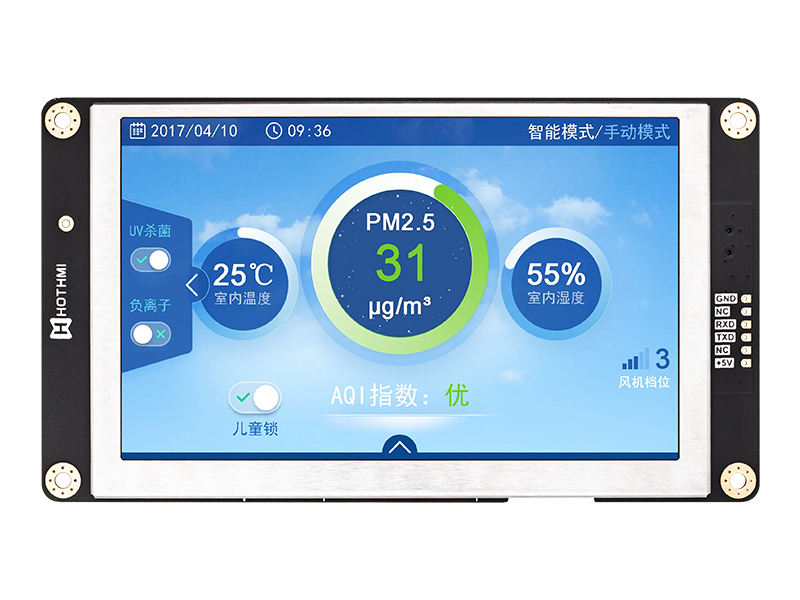

5 Inch 800x480 UART TFT LCD Module Display Panel With Smart serial screen HTM-H050A1-UART TFT Module 800x480 143x80x8.1 5.0 5.0 109.6x66.8 Full view 500cd/m2 6pin UART/RS232 Anti-static ESD 8KV -30~80℃ 5.0V
