Product type：TFT Module
Show contents：480x1280

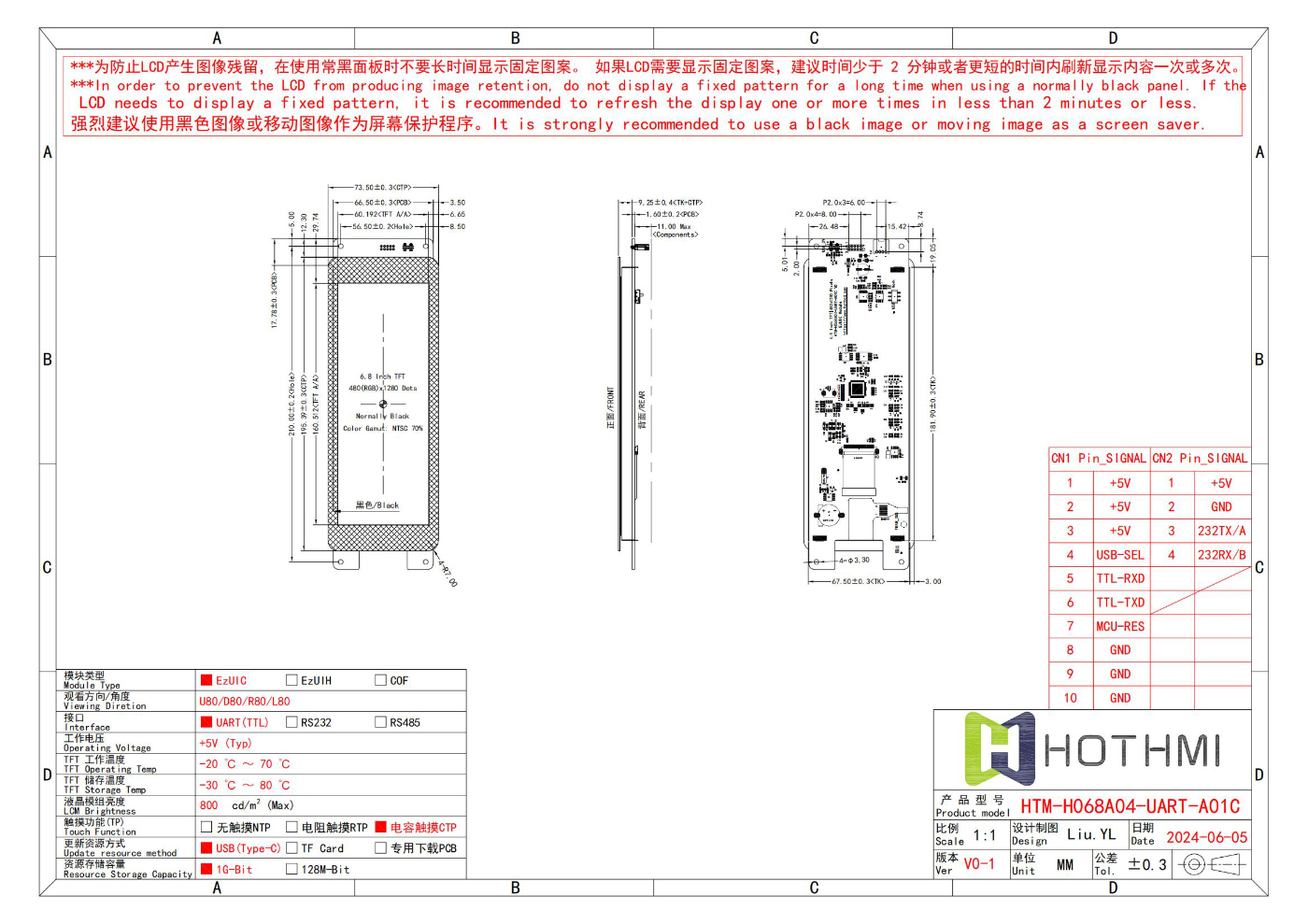

Outline size(mm) ：73.5x210.0x.9.25
Size of View Window(mm)：6.86
Display size(mm) ：6.86
Effective size(mm)：60.192x160.512
Product application：Vehicle, medical, industrial control
Visual angle：Full view
Backlight type or brightness：800cd/m2
Connection PIN Number：FPC-10PIN
Interface mode：UART(TTL)
Special instructions：With capacitive touch function
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：T.B.D
What is a UART display?
HOTDISPLAY UART monitor is an LCD screen that uses a UART serial port for communication. Users send instructions to the serial LCD screen through a single-chip microcomputer, and the serial screen automatically completes all operations for drawing on the LCD screen. Due to its simple operation, even people who do not understand any programming can easily develop the human-computer interaction interface they want.
HOTDISPLAY UART monitor consists of two parts: serial screen hardware and the included serial screen software:
1. The hardware part includes a processor, LCD screen, resistive touch screen or capacitive touch screen FLASH memory RS232 or 485 serial port chip, audio and video decoding chip SD card slot, etc. Some models also include WIFI, 4G, Bluetooth and other modules, voice recognition, facial recognition, fingerprint recognition, etc.
2. The operating software is generally divided into two parts, namely the system software running on the UART monitor and the interface development software UI Editor running on the PC Windows operating system, which is used for program debugging software UI EZUI.
The user first creates a "Project BIN file" using the UI editor, and then downloads the compiled "Project BIN" file to the FLASH of the serial monitor through the UART port, USB port or SD card of the serial monitor.
What are the application fields of UART display?
HOTDISPLAY UART display is widely used in dozens of industries and fields such as industrial automation, power, telecommunications, environmental protection, medical, finance, petroleum, chemical, transportation, energy, geology, metallurgy, public inquiry and monitoring, smart home appliances, transportation, railways, data centers, charging stations, power, medical, national defense security, shared equipment, etc.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections |
Touchscreen Add-On Components: Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design. |
Interface Customization: Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals. |
Cover Glass: Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris. |
