Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  Smart TFT Modules | RS232| UART|CAN|| WIth Board/Touch  >  4.3寸UART 電容式觸摸屏 TFT LCD 480x272 顯示屏帶 LCD 控制板智能屏 HTM-H043A10-UART232-CTP

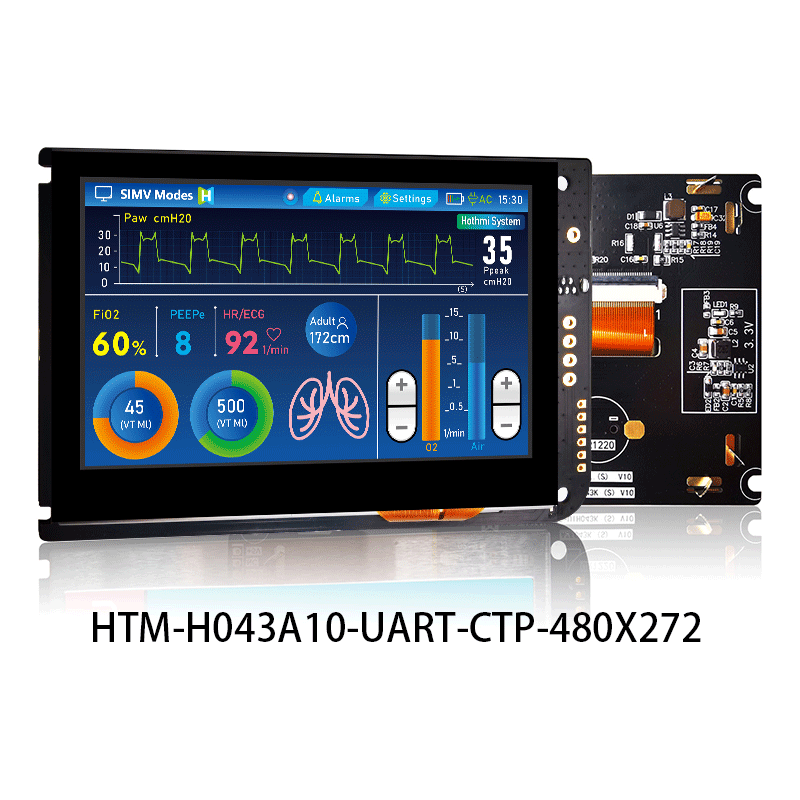

  • Model : 4.3 Inch UART Capacitive Touch Screen TFT LCD 480x272 Display WITH LCD CONTROLLER BOARD HTM-H043A10-UART232-CTP

    Product type:TFT Module

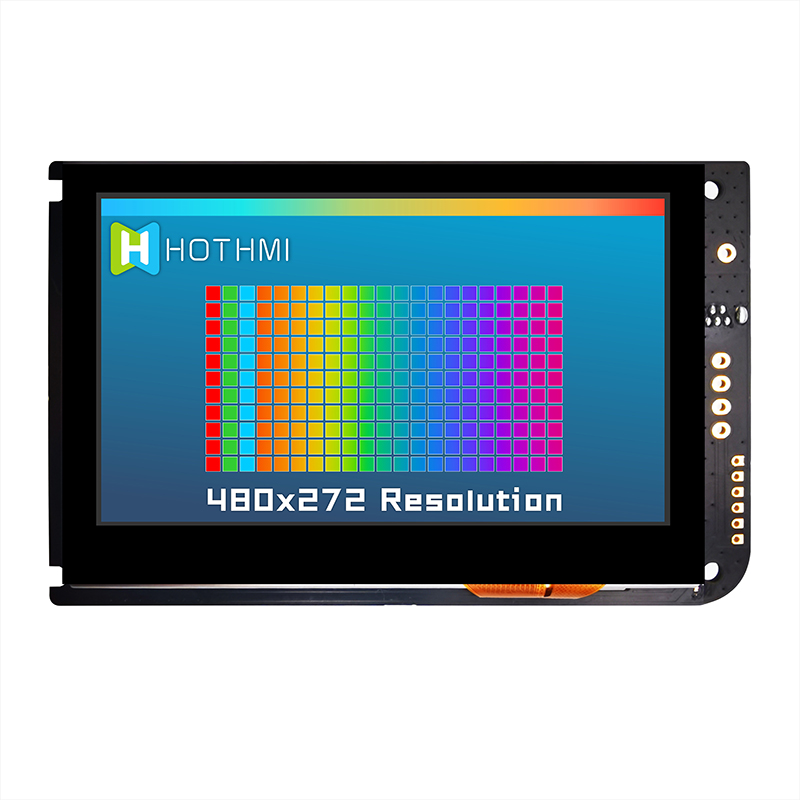

    Show contents:480x272

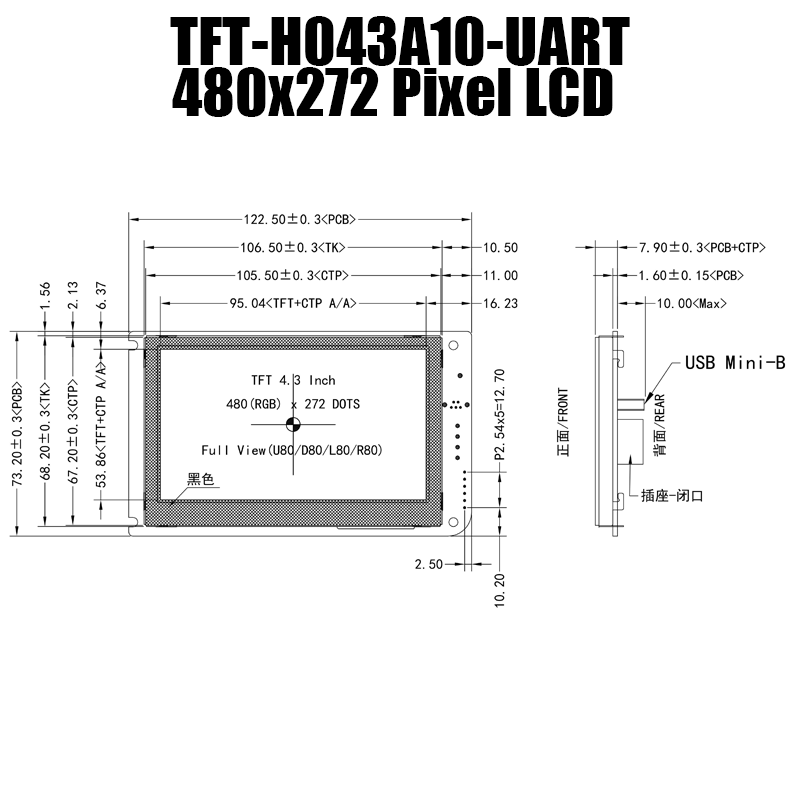

    Outline size(mm) :122.5x73.2x7.9

    Size of View Window(mm):4.3

    Display size(mm) :4.3

    Effective size(mm):95.04x53.86

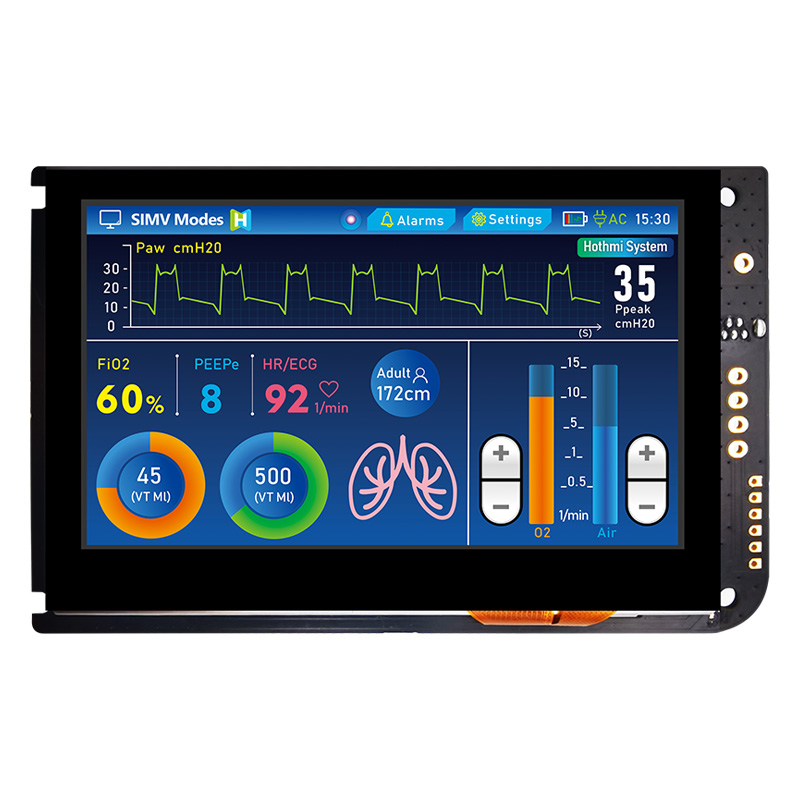

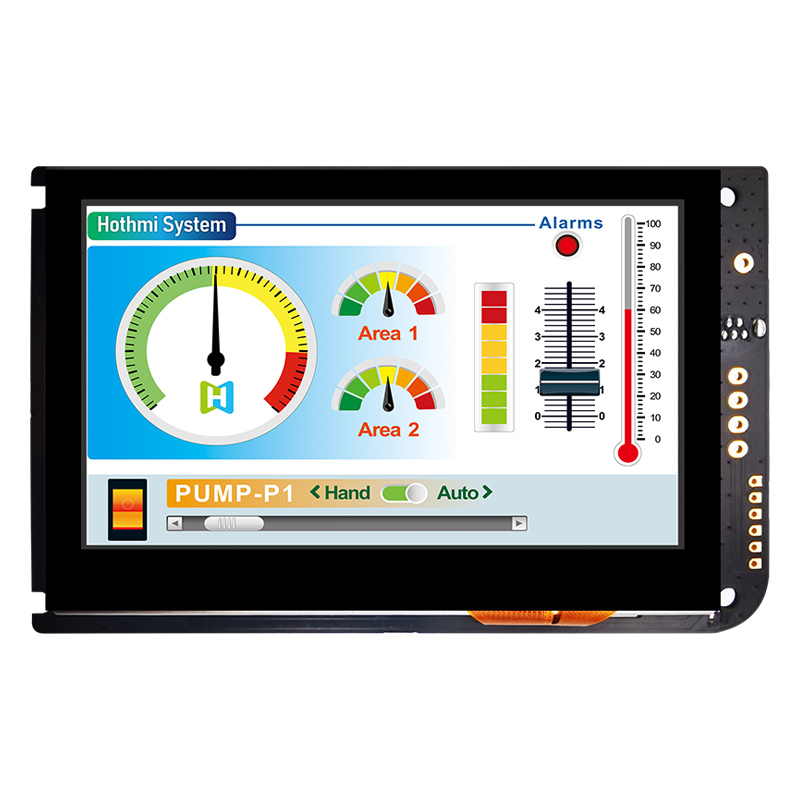

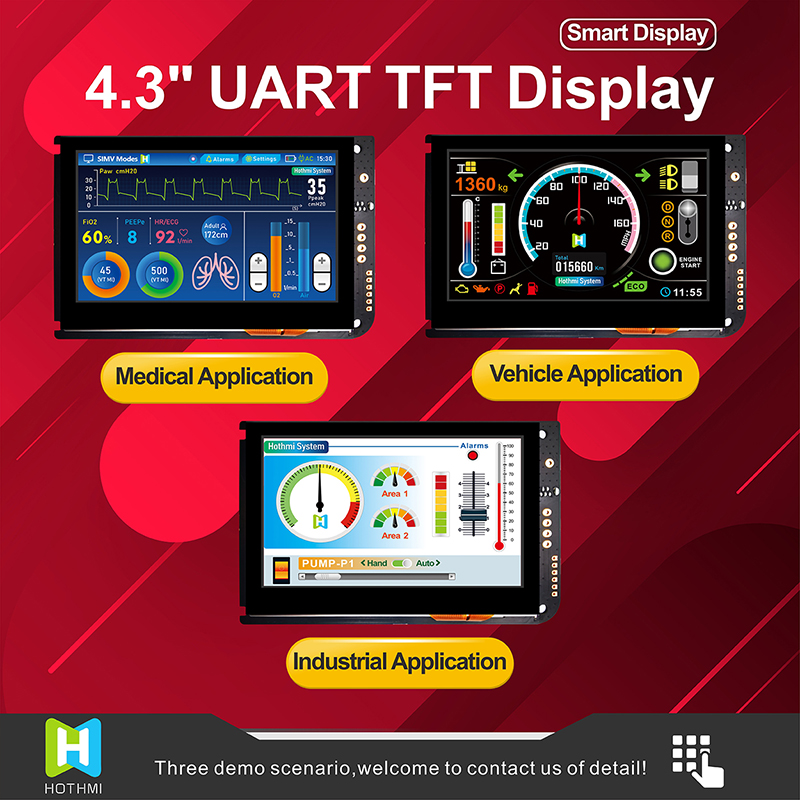

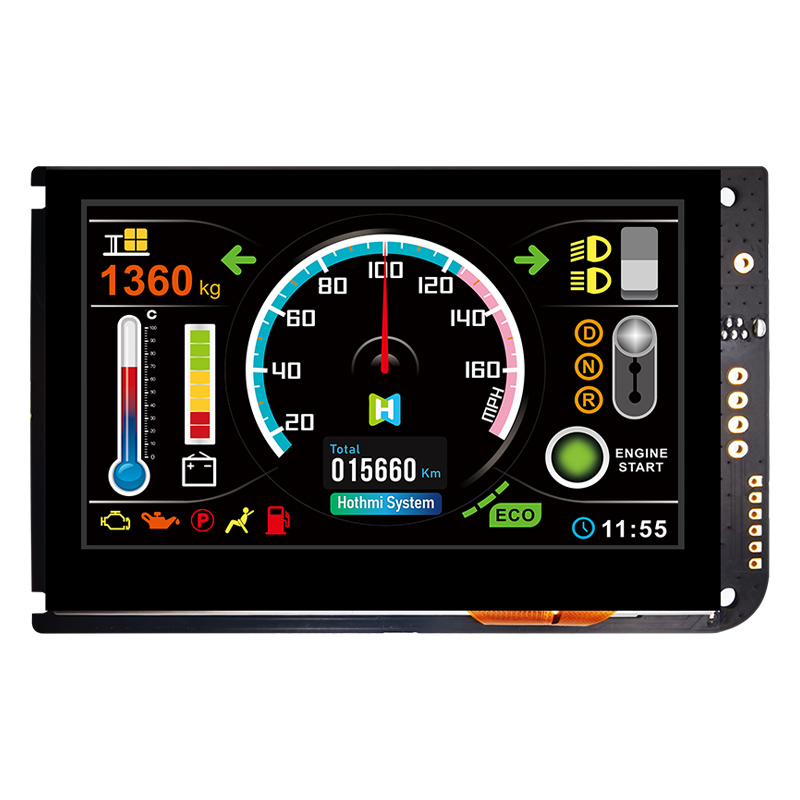

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

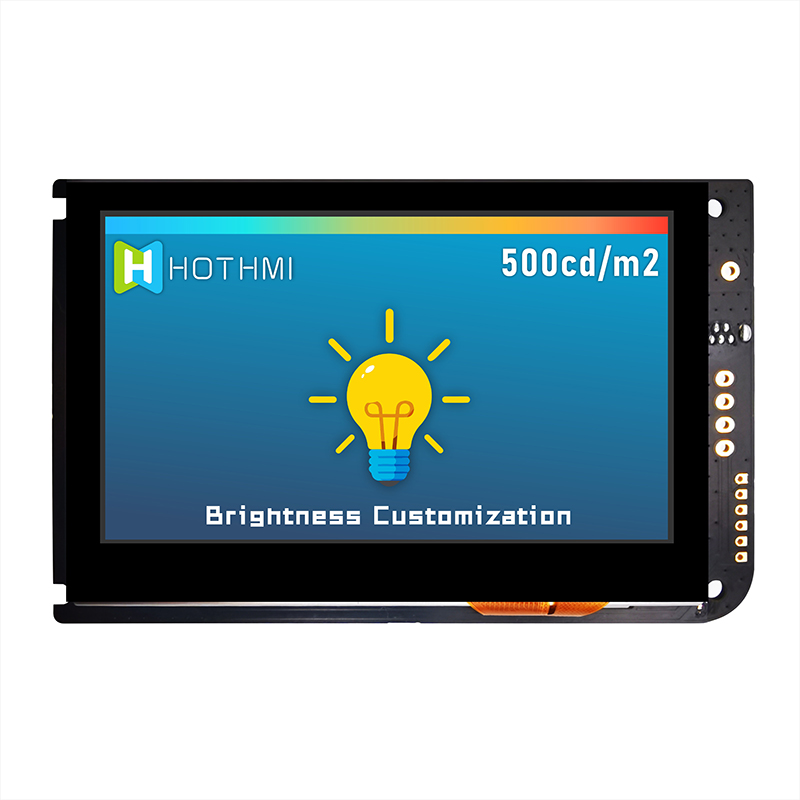

    Backlight type or brightness:500cd/m2

    Connection PIN Number:10pin

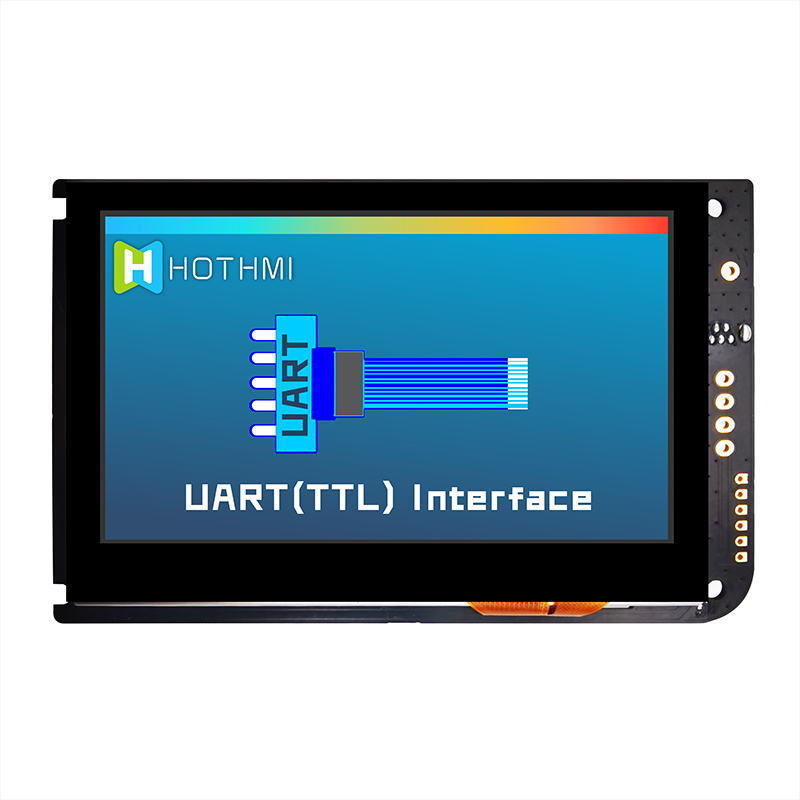

    Interface mode:UART/RS232

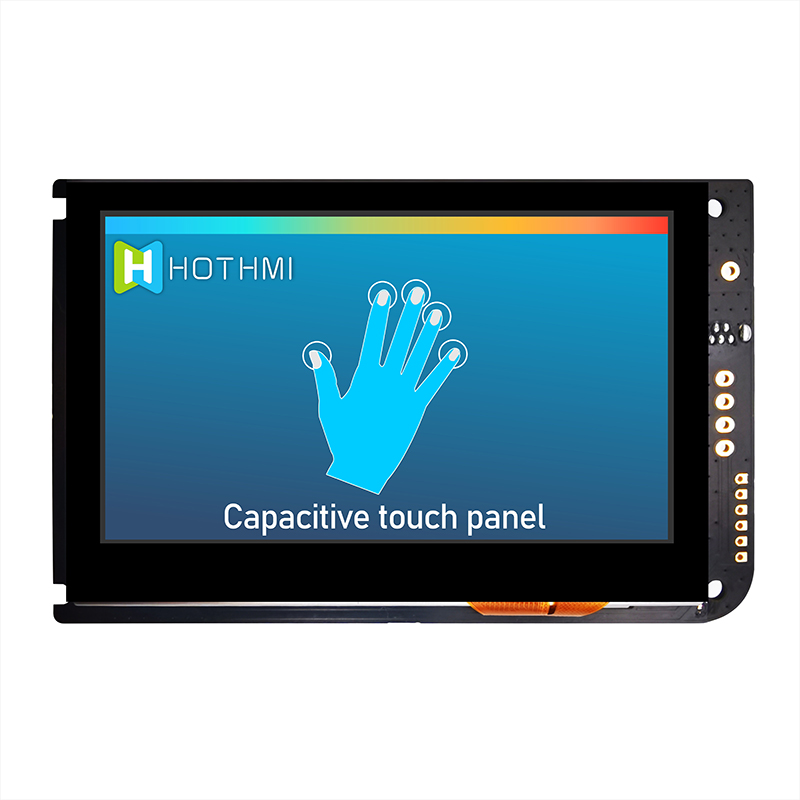

    Special instructions:With capacitive touch function

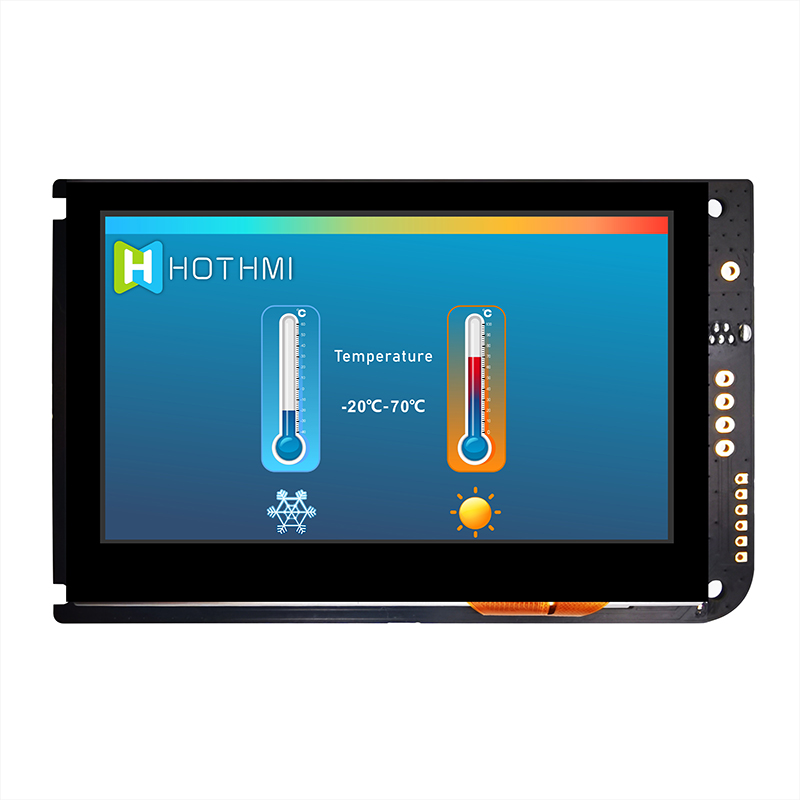

    Working temperature:-20~70℃

    Power supply voltage:5.0V

Product description

4.3 Inch UART Capacitive Touch Screen TFT LCD 480x272 Display WITH LCD CONTROLLER BOARD HTM-H043A10-UART232-CTP

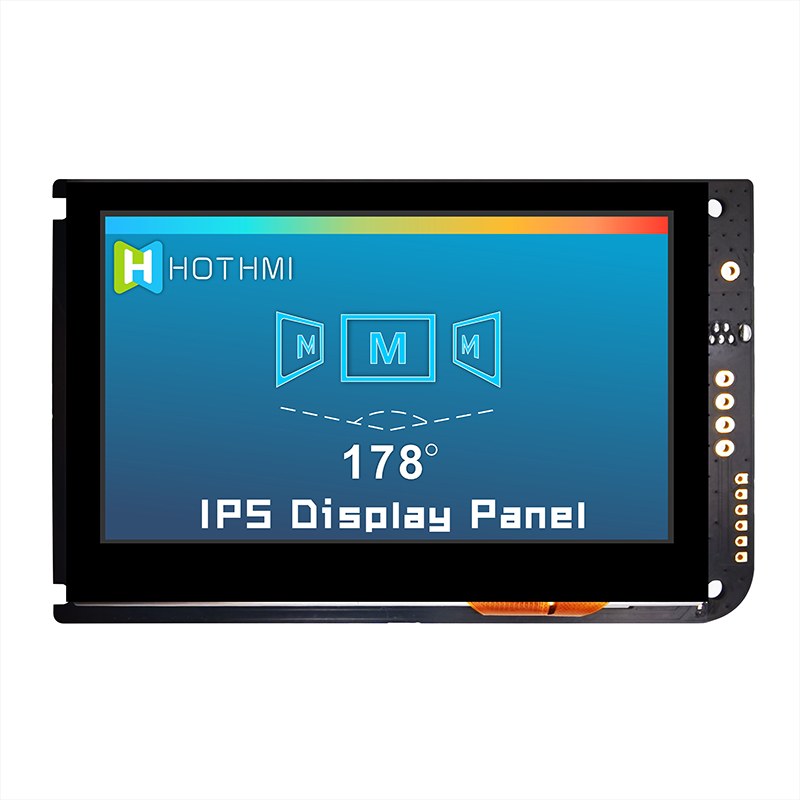

HTM-H043A10-UART232-pcap monitor | 4.3"  IPS LCD Display | 480x272 dots | LCD Controller Board | Luminance 500cd/m2 | Interface UART(TTL) | TFT MODULE | -20°C ~ 70°C | capacitive touch Screen



Introducing the HTM-H043A10-UART232-pcap monitor, a high-quality TFT LCD display with a capacitive touch screen, perfect for a wide range of applications. Featuring a 4.3" IPS LCD display with a resolution of 480x272 dots and a luminance of 500cd/m2, this display offers exceptional clarity and brightness.

The LCD controller board provides seamless integration with your device, and the interface uses UART (TTL) communication for ease of use. The TFT module ensures fast and accurate response times, making it perfect for use in touch-based applications.

With a temperature range of -20°C to 70°C, this display is suitable for use in a wide range of environments. Whether you're looking for a display for industrial use, a touch screen for an embedded system, or a monitor for a consumer product, the HTM-H043A10-UART232-pcap monitor is an excellent choice. Upgrade your display today and experience the high-quality performance of this exceptional product.


Product name: HTM-H043A10-UART series intelligent serial screen


Product Description:


Color TFT display size: 4.3 inches (diagonal)


Resolution: 480x272 dot matrix, 16-bit color depth, HD screen


Internal resource memory size: 128M bytes


Power supply requirements: 5V~24V DC power supply


External interface: serial UART (TTL level) interface


Communication protocol: ASCII string format, suitable for Arduino system and other MCU interface operations


Standard configuration:


4.3-inch diagonal color TFT screen, standard non-touch/resistive touch/capacitive touch


Resolution: 480x272 dot matrix, 65536 colors


Power supply mode: 5V~24V DC power supply


Serial interface: ART serial interface (TTL level), support 9600~1000000bps


Built-in resource memory: 128M bytes


Standard RTC real-time clock module


Built-in 6x10, 8x16, 10x20, 16x32 point ASCII code Western character library


Features:


Support basic drawing instructions, including drawing points, straight lines, rectangles, circular rectangles, circles, arcs, string display, bitmap display, JPEG image display, PNG image display, etc.


Support audio and video playback commands


The resource memory supports GBK2312 secondary Chinese character library, vector font library, BIG5 font library, BMP bitmap, JPEG picture, PNG picture display, ASCII western character library, etc.


Support interface switching effect settings, such as transparency fade-in, random fast fade-in, blinds fade-in, buffer fast switching


Support area button control, can configure various attributes, control message response can be configured


Support bitmap (BMP/JPG/PNG) button controls, which can be configured with various attributes, and the control message response can be configured


Supports numerical controls, can input integers and floating-point numbers, and configures multiple attributes


Support string control, support Chinese and English string input, multiple attribute configurations


Support drop-down selection control, control message response can be configured


Support waveform control, allowing to display up to four waveform lines in the same ID number control


Support progress bar control, control message response can be configured


Support bitmap animation control, control message response can be configured


Support time display and date display controls


Support dial display controls


Support slider control, control message response can be configured


Support QR code




The latest EzUI series intelligent LCD display module launched by HOTHMI has the following characteristics

E (easy to use), z (zero code), UI (user interface). This series of modules can quickly help users develop a full-color graphical touch screen human-machine interface, allowing users to easily design and develop color LCD modules.


The biggest feature of the EzUI series intelligent LCD module is its easy-to-use and rich-featured features. Users can choose simple or complex usage methods to achieve the goal of code-free user interface design. Users can use the interface development tool software (EzUITool) to design, edit, control configuration and response settings of the man-machine interface, and then copy the resource files generated by the tool software to the EzUIH series modules to complete the required man-machine interface. The interactive interface is designed and produced without programming and controlling the microcontroller or other controllers. In order to meet users with special requirements, EzUIH series modules still retain most of the display control commands, enabling users to control the module display more freely. EzUIH is a function and performance enhanced version of EzUI series. Although the hardware platform is different, it is fully compatible with the functions of EzUI series.


Currently, the EzUI series provides a variety of sizes for customers to choose from, including 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 8.0 inches, and 10.1 inches. These modules are commonly used in industrial control equipment and medical equipment.


The characteristics and application scope of EzUI series intelligent LCD module are as follows:


Ease of use: EzUI series modules adopt a simple and easy-to-use design concept, enabling users to get started easily and quickly carry out interface design and development. Through the interface development tool software (EzUITool), users can perform operations such as the design, editing, control configuration, and response setting of the human-machine interface.


Zero code: EzUI series modules realize the goal of code-free user interface design. The user does not need to program and control the microcontroller or other controllers, but only needs to copy the resource files generated by the tool software to the corresponding EzUIH series modules to complete the design and production of the human-computer interaction interface.


Rich functions: EzUI series modules provide rich functions and performance. Users can choose simple or complex usage methods according to their needs, and freely control the display function of the module. EzUIH series modules also retain most of the display control instructions to meet users with special requirements.


Multiple size options: EzUI series provides a variety of sizes for customers to choose from, including 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 8.0 inches and 10.1 inches. These modules of different sizes are suitable for different application scenarios, such as industrial control equipment and medical equipment.


In a word, Xinhongtai HOTHMI's EzUI series intelligent LCD module has the characteristics of easy to use, zero code, and rich functions, which can help users quickly develop full-color graphic touch screen human-machine interface, and is widely used in industrial control equipment and medical equipment and other fields .
