類型：TFT豎屏
顯示像素：480x800
外形尺寸 ：51.32x 86.61x 3.6
VA尺寸：3.5
AA尺寸 ：3.5
有效尺寸mm：45.36x75.60
應用：車載，醫療，工控
視角：全視角
背光/亮度：800cd/m2
引腳：FPC-40PIN
接口方式：RGB
特殊說明：抗靜電ESD 8KV
工作溫度：-20~70℃
供電電壓：3.3V
驅動芯片：ST7701S

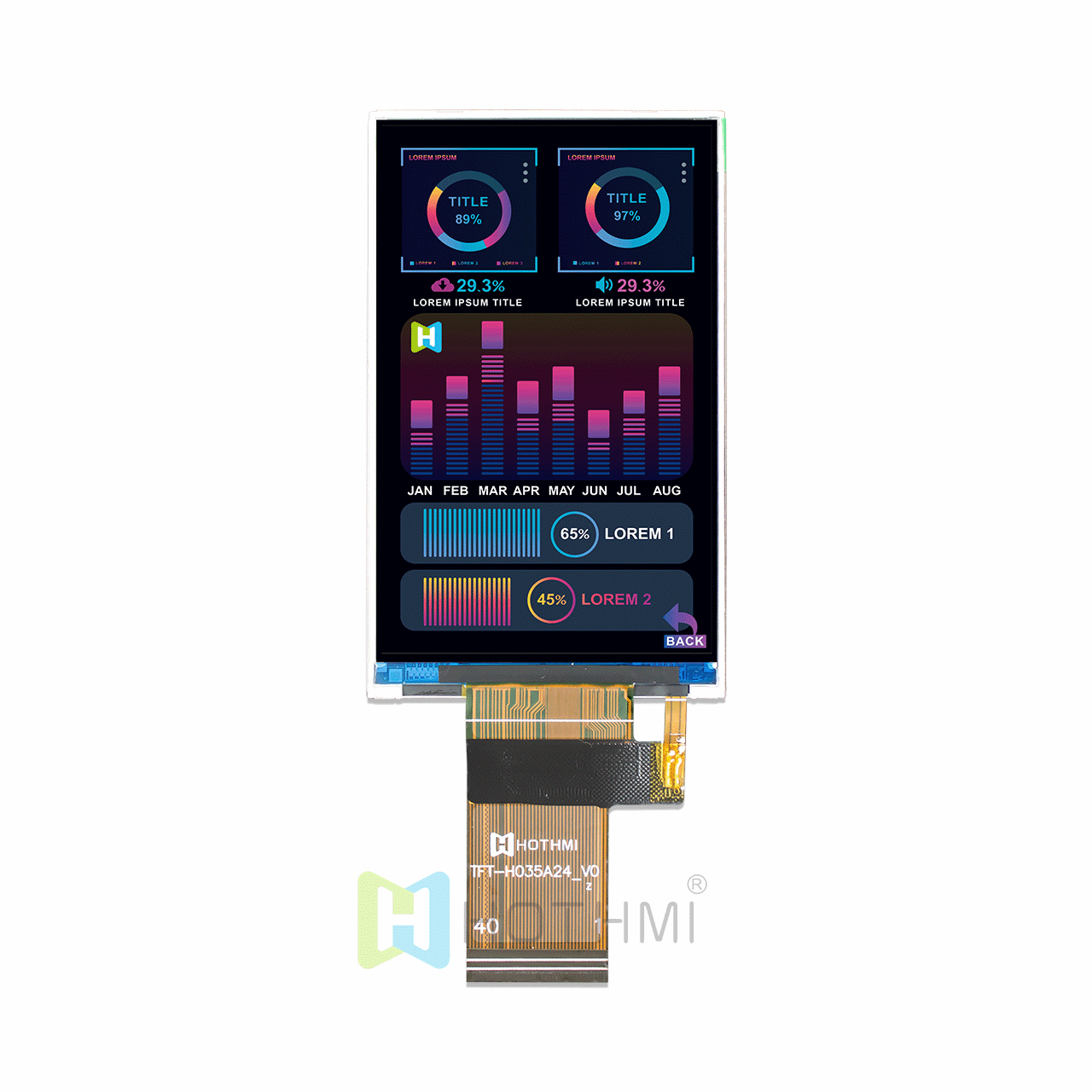

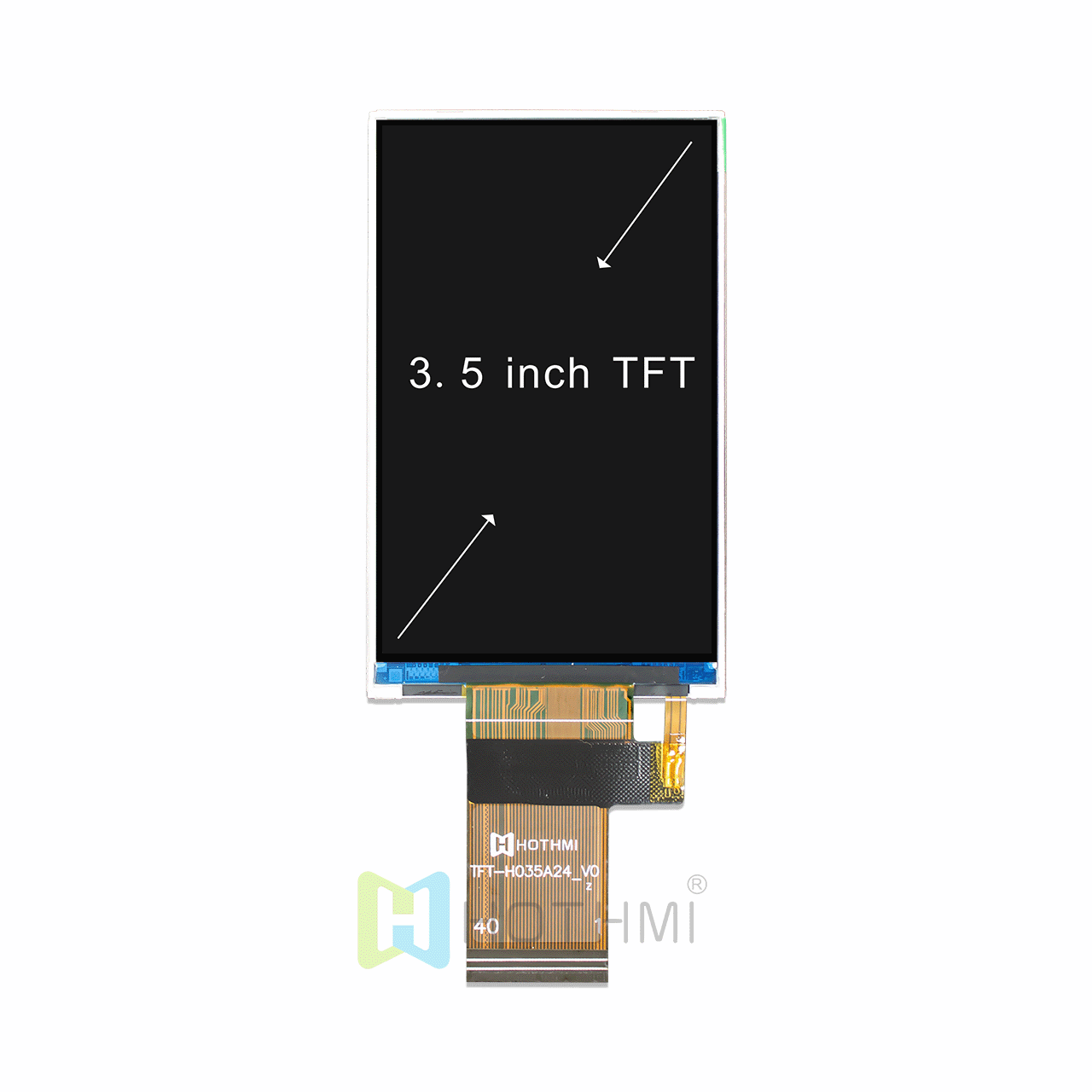

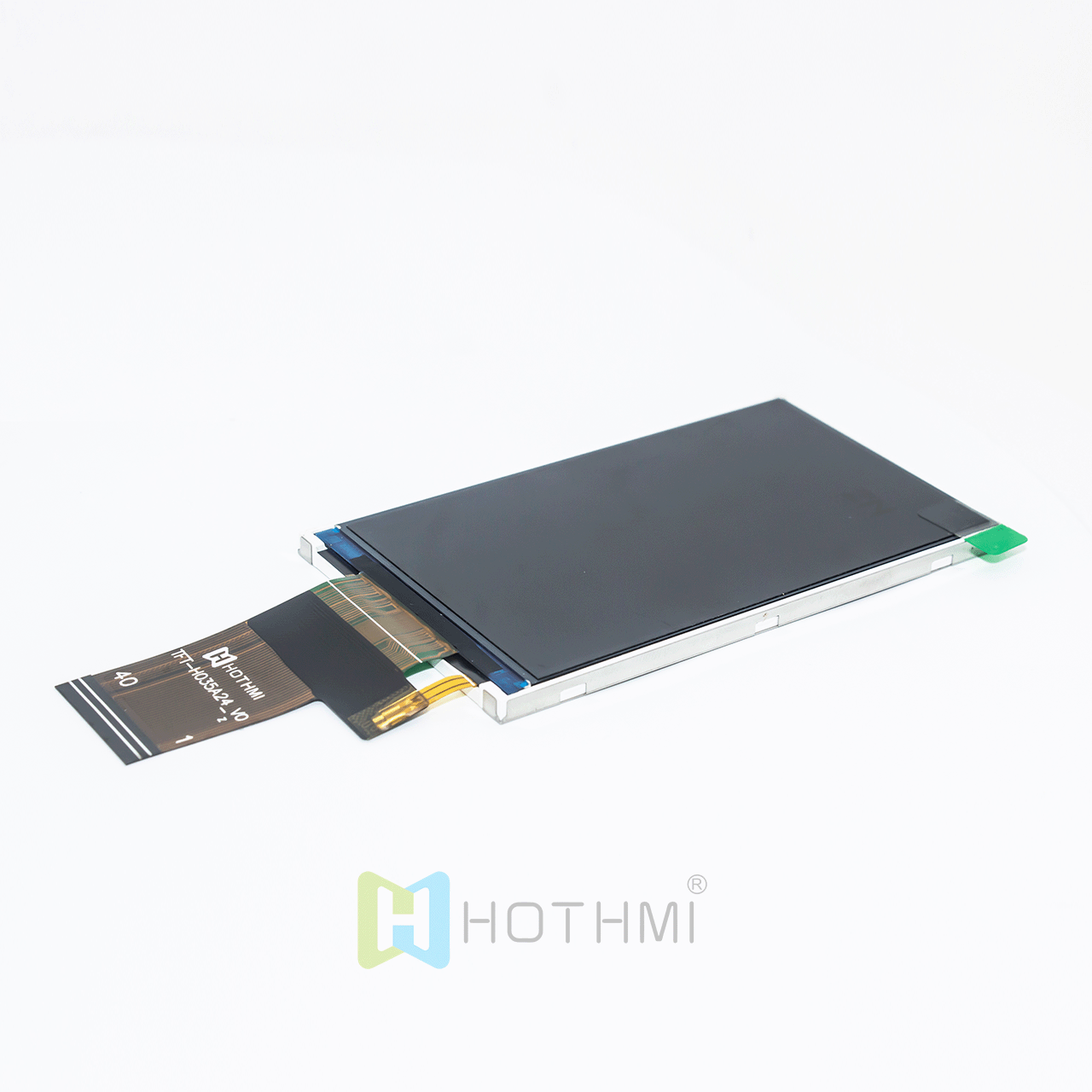

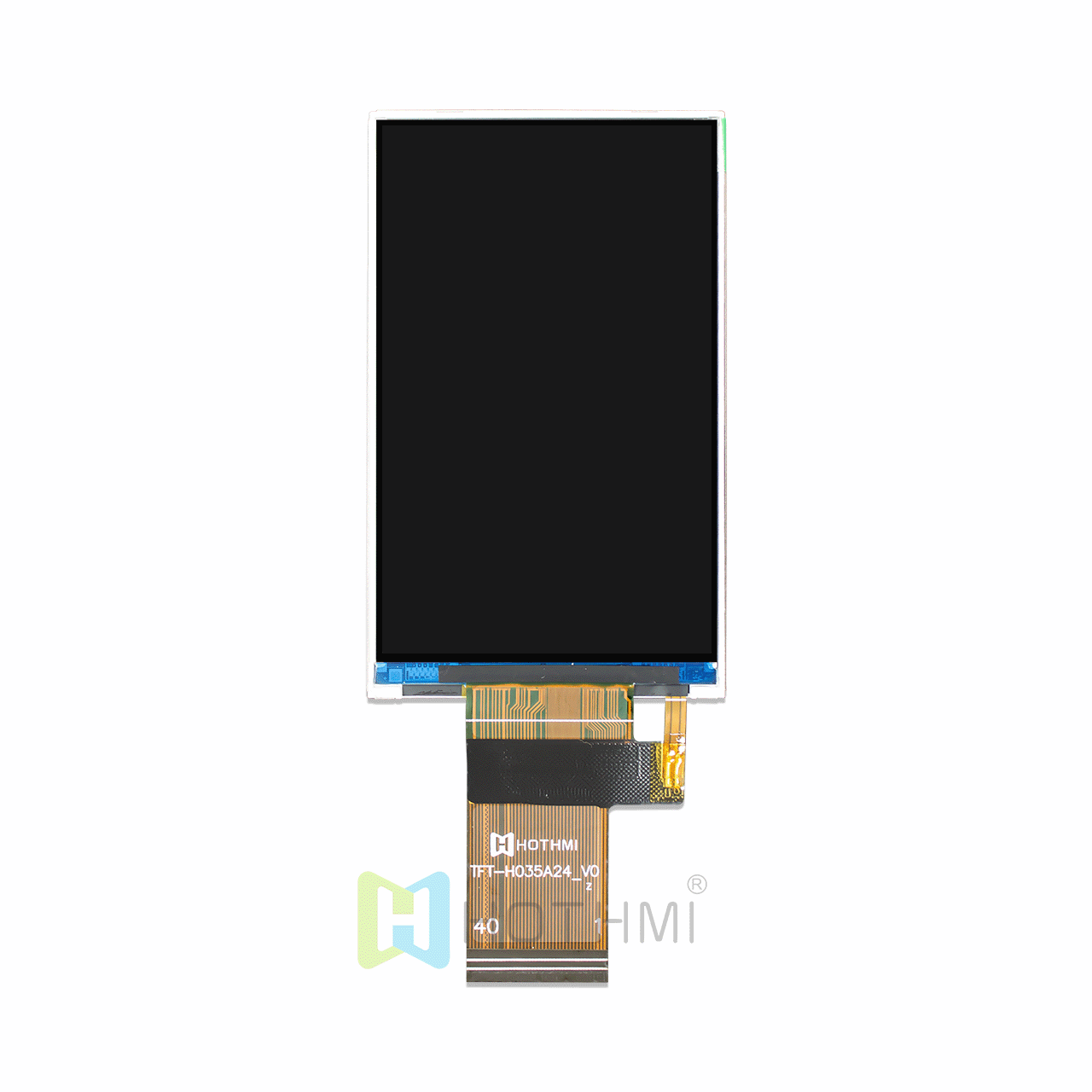

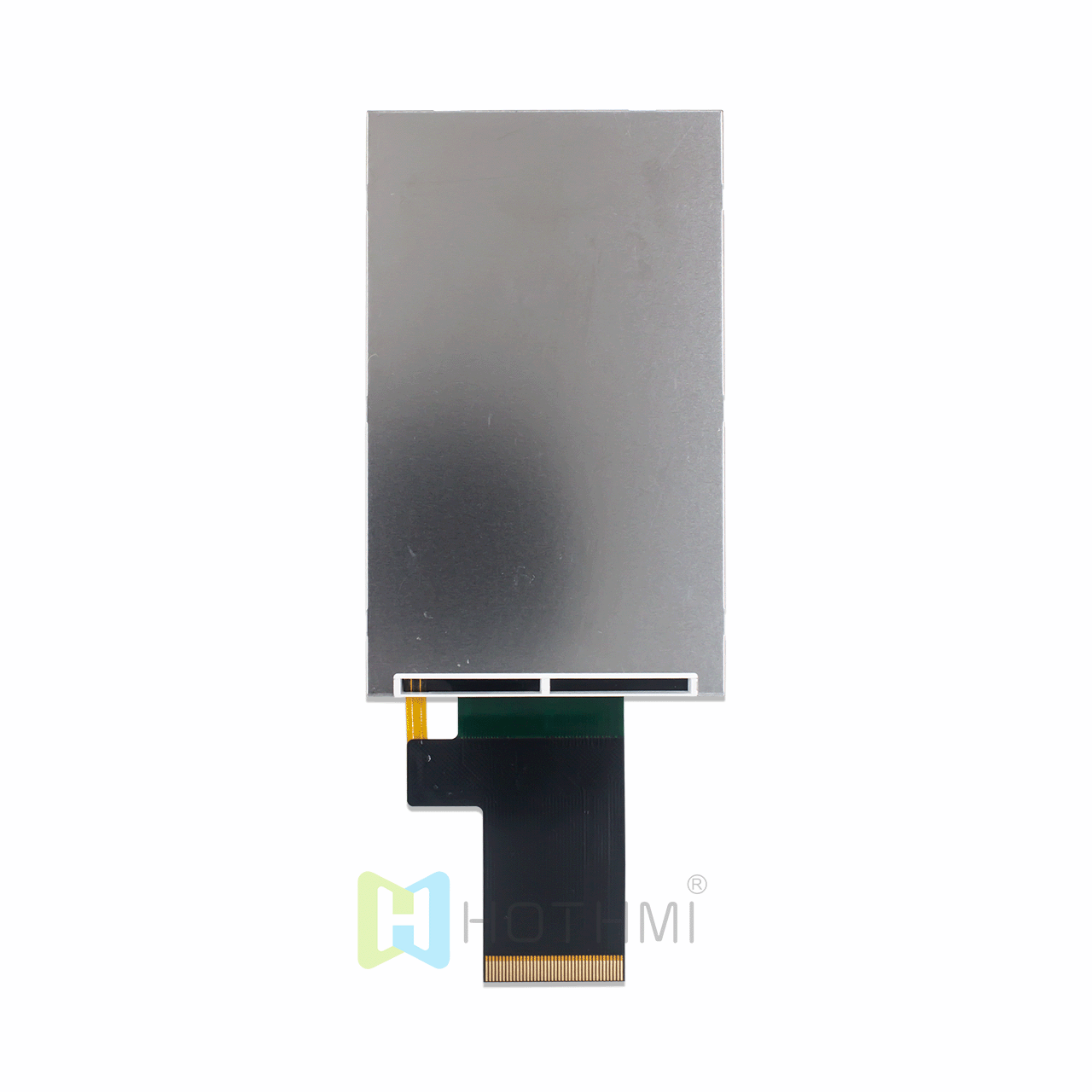

TFT-H035A24WVIST8N40 is a 3.5-inch IPS full-viewing color LCD module, 480x800 resolution, built-in ST7701S controller, optional resistive touch screen and capacitive touch screen (built-in GT911 controller), high image quality, wide viewing angle, Support RGB interface, 8080 8-bit, 9-bit, 16-bit parallel interface and 3-wire, 4-wire serial interface, 16.7M true color, FPC connection (optional connector), 3.3V voltage, support horizontal screen Or display vertically. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
