產品搜尋

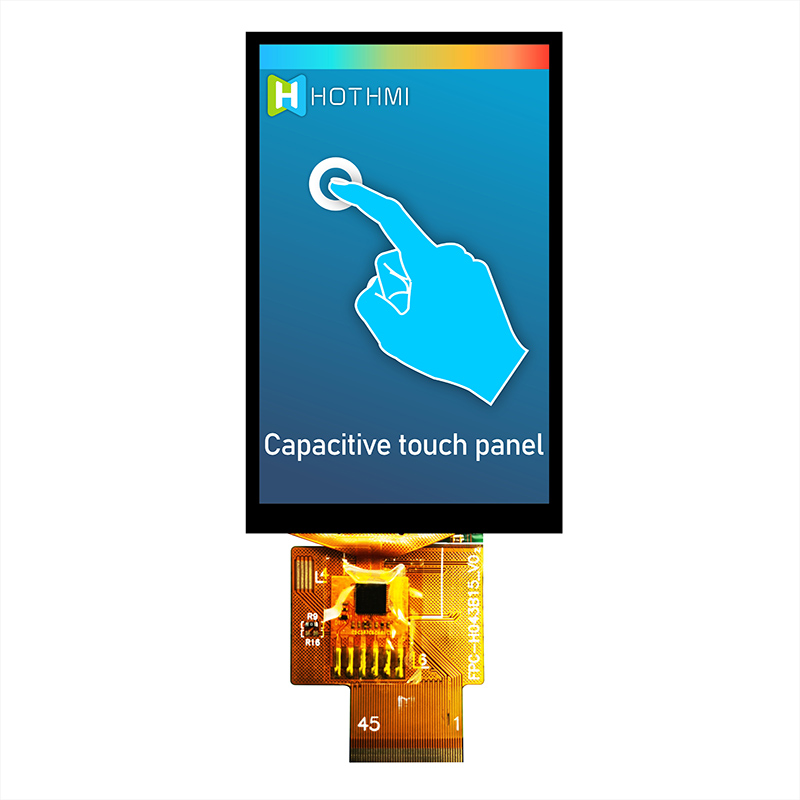

類型：TFT電容觸控屏
顯示像素：480x800
外形尺寸(mm) ：60.86x102.57x2.3

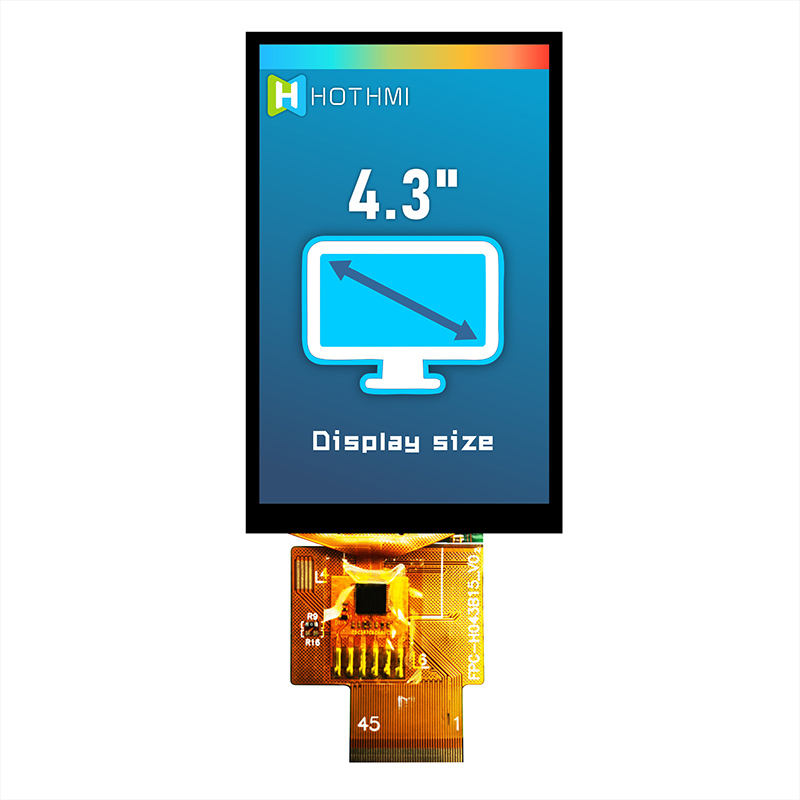

VA尺寸(mm)：4.3
AA尺寸(mm) ：4.3
有效尺寸mm：56.16x93.6
應用：車載，醫(yī)療，工控

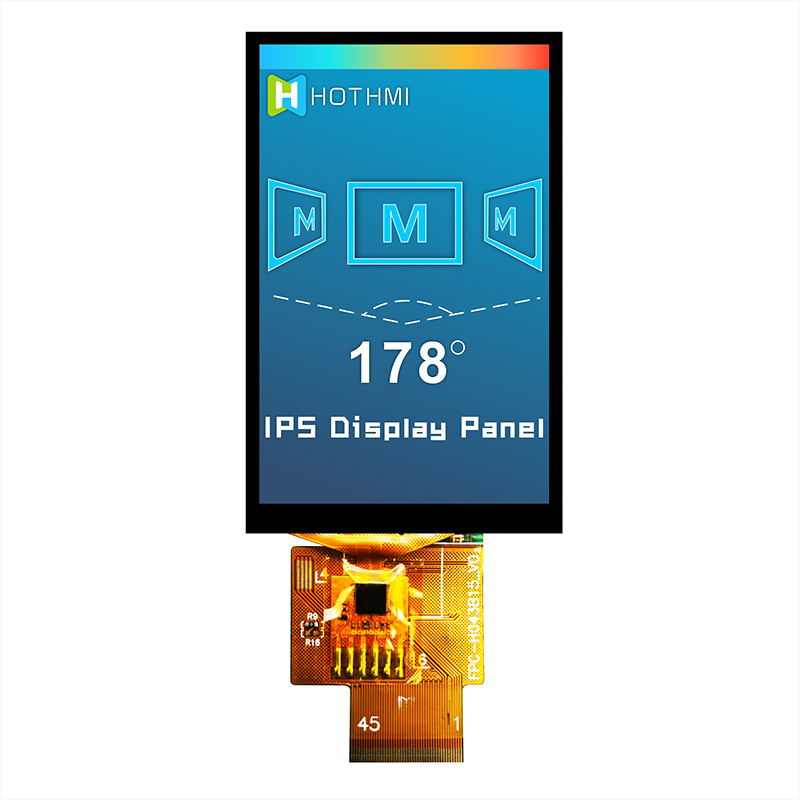

視角：全視角

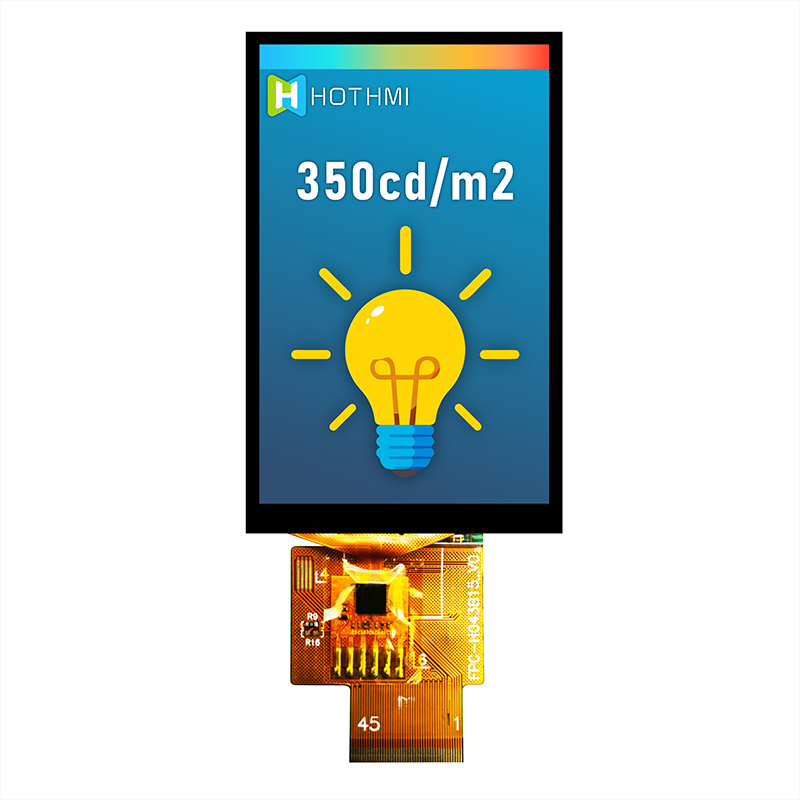

背光/亮度：350cd/m2
引腳：45pin

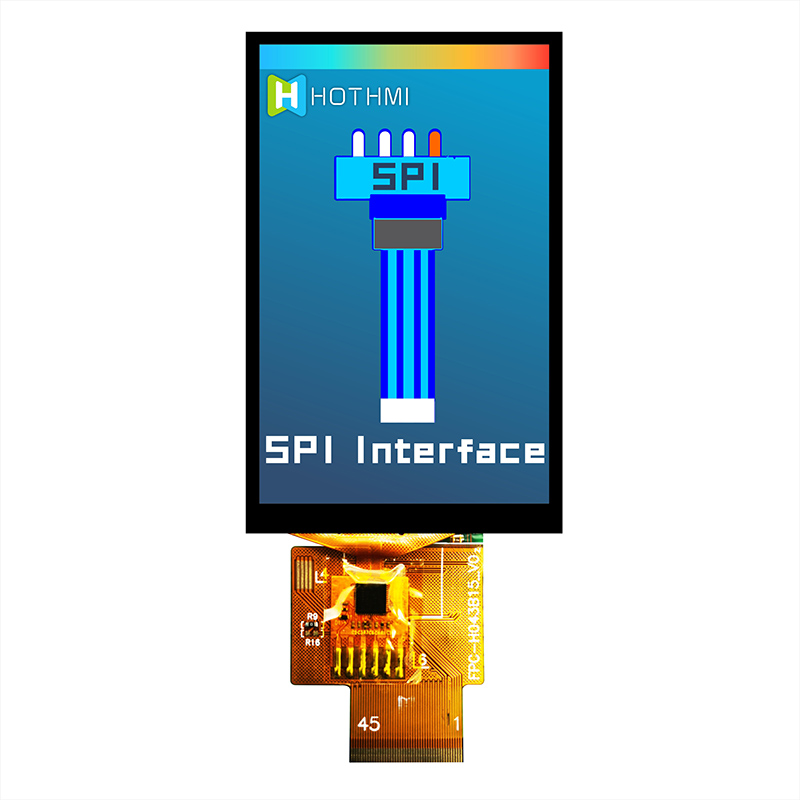

接口方式：SPI

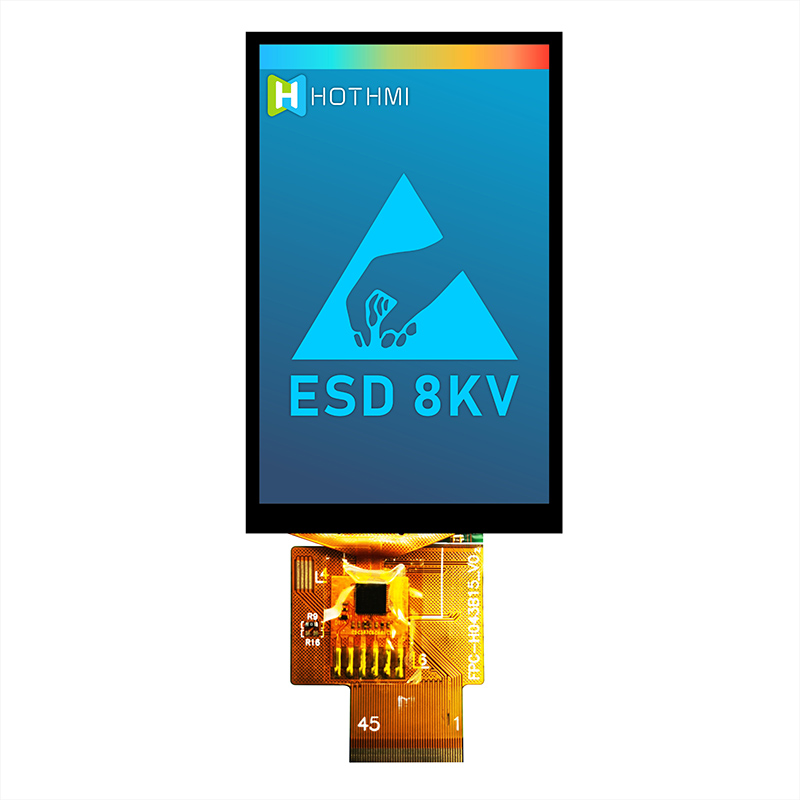

特殊說明：抗靜電ESD 8KV

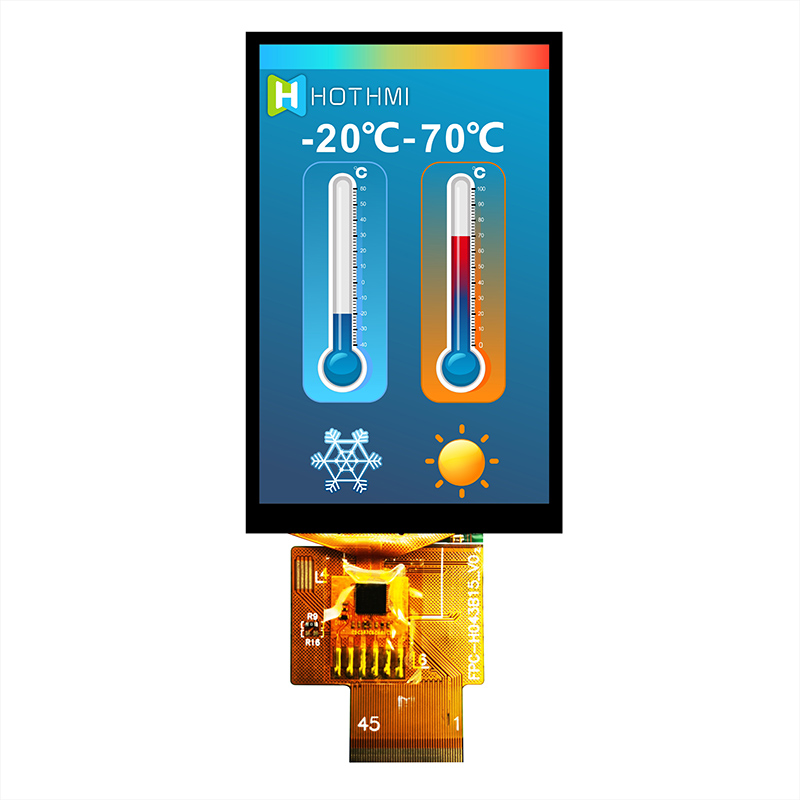

工作溫度：-20~70℃
供電電壓：3.3V

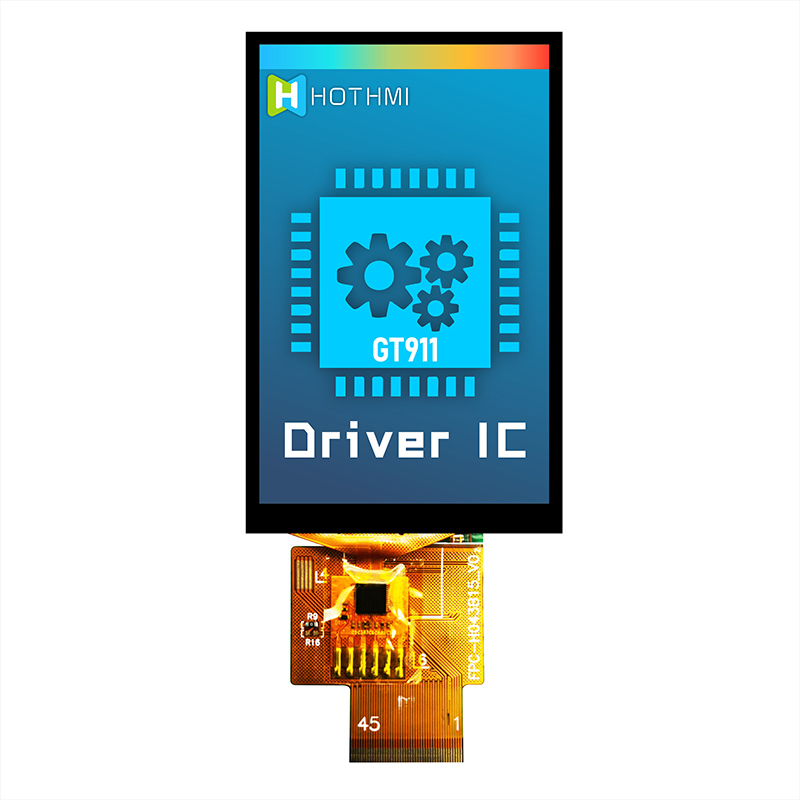

驅動芯片：ST7701S<TFT>,GT911<CTP>

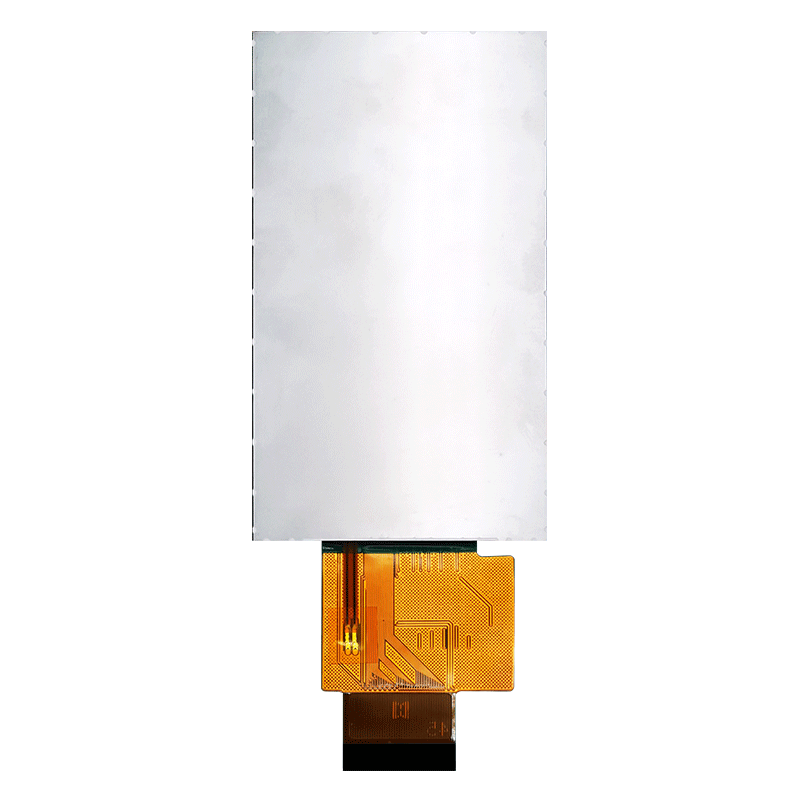

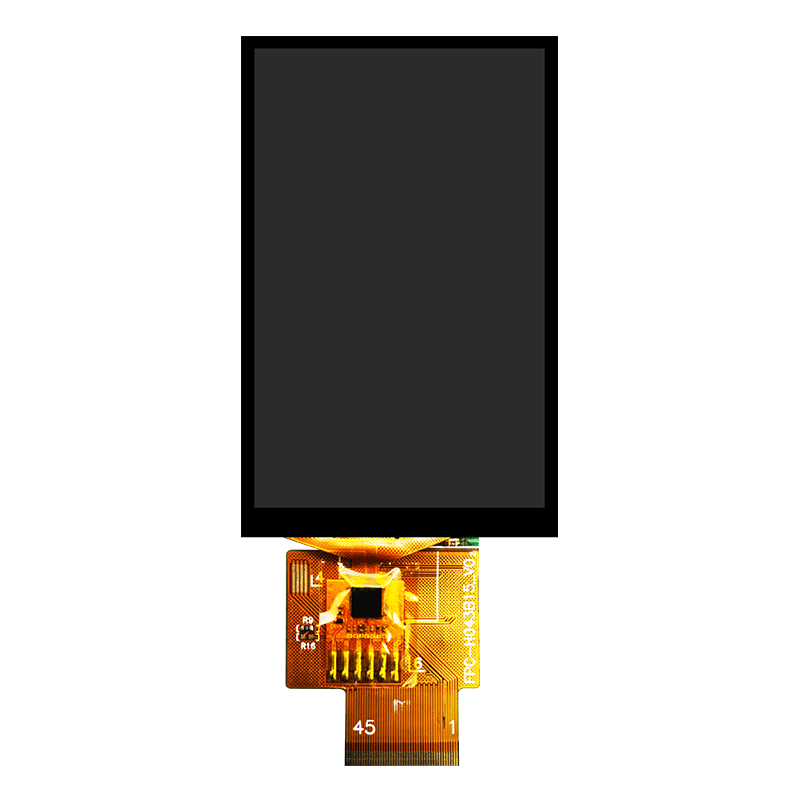

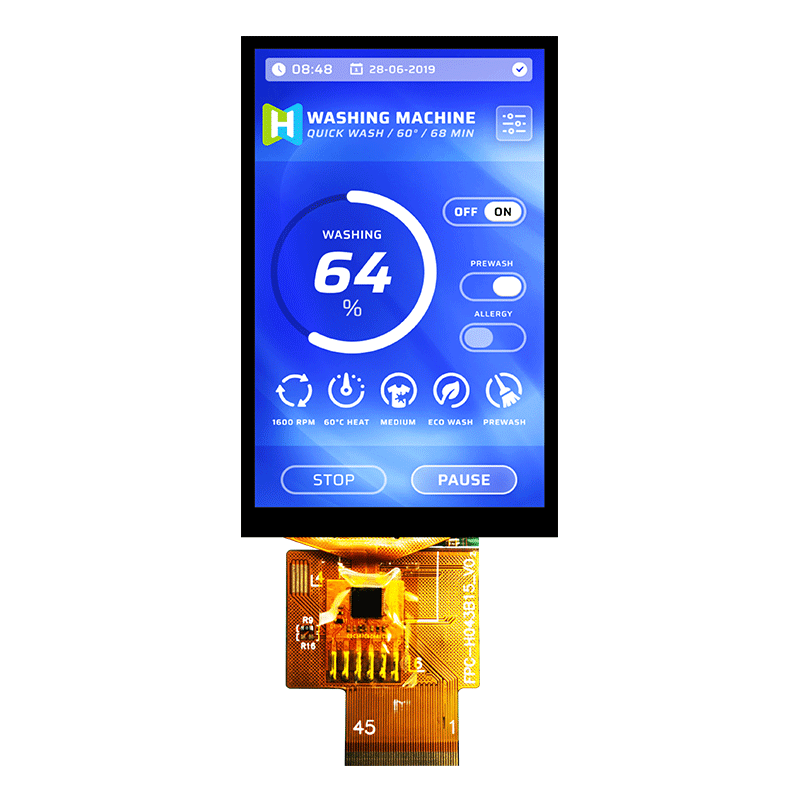

4.3寸TFT IPS全視角 480X800分辨率 LCD電容觸控屏-TFT液晶模組廠 TFT-H043B15WVIST3C45
4.3寸TFT電容觸控屏--工業(yè)級LCD液晶顯示屏制造商--深圳鑫洪泰官網(wǎng)
這是對具有電容式觸摸面板和 3:2 縱橫比的 TFT 顯示模塊的描述。 顯示屏尺寸為4.3英寸，分辨率為480×800像素。 它采用市場上流行的 IPS 面板，提供 80/80/80/80 度的寬視角。
驅動IC GT911支持4通道MIPI接口，背光低功耗。 顯示屏提供 350 cd/m2 的亮度和 800:1 的對比度（典型值）。模塊工作電源電壓范圍為2.6~3.6V，典型值為3.3V。 設計工作溫度范圍為-20至+70℃，存儲溫度范圍為-30至+80℃。
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.3 | Inch | ||
Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||
Active Area | 56.16x93.6mm | mm | ||
Outline Dimension | 62.46x102.97x3.85 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | SPI+RGB | - | ||
Driver IC | ST7701S(TFT)GT911(PCAP) | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3 | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||

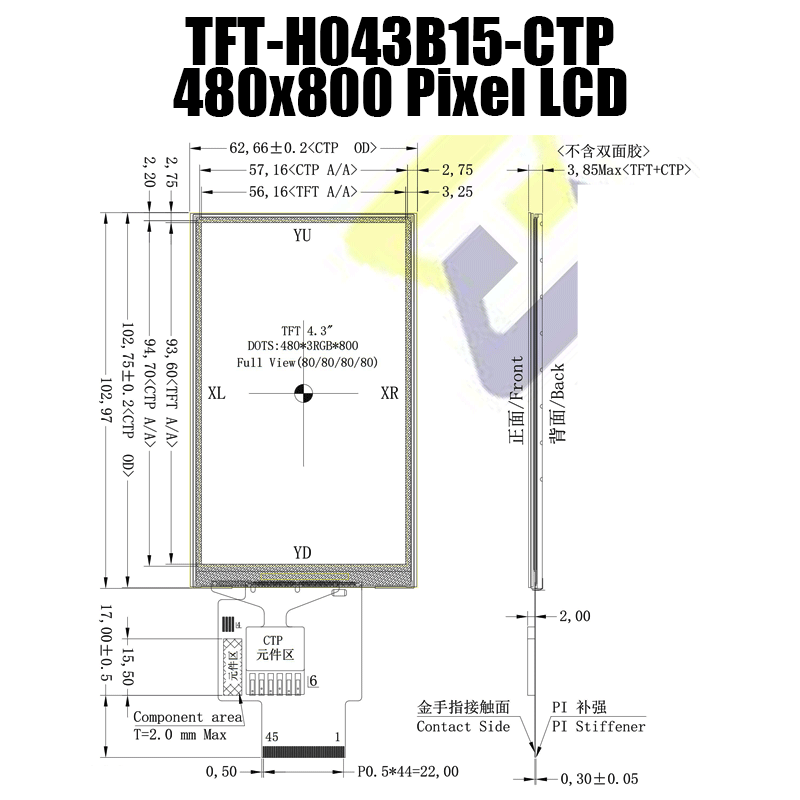

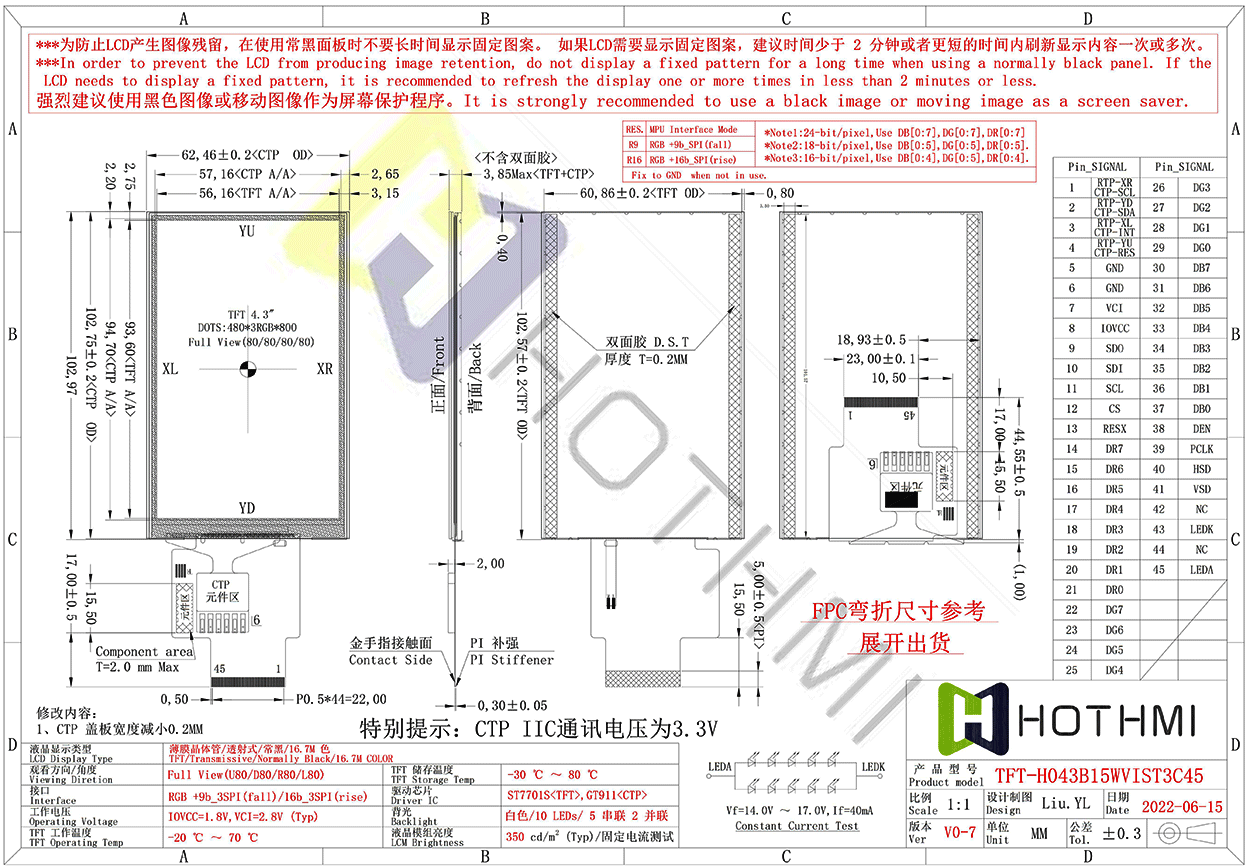

Pin Description
| Pin NO. | Symbol | Description |
| 1 | RTP-XR/CTP-SCL | Touch control pin |
| 2 | RTP-YD/CTP-SDA | Touch control pin |
| 3 | RTP-XL/CTP-INT | Touch control pin |
| 4 | RTP-YU/CTP-RES | Touch control pin |
| 5~6 | GND | Ground |
| 7 | VCI | Digital Power |
| 8 | IOVCC | Power Supply for I/O System |
| 9 | SDO | Serial data output pin used for the SPI Interface. |
| 10 | SDI | Serial data input/output bidirectional pin for SPI Interface. |
| 11 | SCL | Serial clock input for SPI interface. |
| 12 | CS | A chip select signal |
| 13 | RESX | TFT Reset Pin |
| 14~21 | DR[7~0] | Red data bus |
| 22~29 | DG[7~0] | Green data bus |
| 30~37 | DB[7~0] | Blue data bus |
38 |
DEN | Data input enable. Low: access enabled ; High: access inhibited |
| 39 | PCLK | Pixel clock input pin |
| 40 | HSD | Horizontal sync signal |
| 41 | VSD | Vertical sync signal |
| 42 | NC | No Connect |
| 43 | LEDK | LED Cathode |
| 44 | NC | No Connect |
| 45 | LEDA | LED Anode |
