類型：COB LCD Module
顯示像素：128x64
外形尺寸 ：58x51.2x6.2
VA尺寸：54.6x39.2
AA尺寸 ：128x64
點間距mm：0.38x0.32
有效尺寸mm：45.2x27
應用：儀器儀表
視角：6H
引腳：12pin
接口方式：SPI
特殊說明：抗靜電ESD 8KV
工作溫度：-30~80℃
供電電壓：3.3V
驅動芯片：ST7567
介紹HTM-COG12864T01A-SPI，一款可靠且高質量的單色圖形模塊，非常適合需要寬溫度范圍的儀器儀表應用。其工作溫度范圍為-30℃~80℃，該模塊可在惡劣環境和極端條件下運行狀況。該模塊采用 128x64 像素透反式 LCD 顯示屏，提供清晰易讀的視覺效果，6 點鐘視角。FSTN (+) 正極顯示和內置負電壓確保出色的對比度和清晰度，使其適用于適用于明亮和昏暗的環境。HTM-COG12864T01A-SPI 有現貨，可隨時用于您的儀器項目。立即訂購并利用這款可靠的高性能 LCD 模塊來增強您的設計。
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 128x64 | dots |
| Module dimension | 58x51.2x6.2mm | mm |
| View display area | 54.6x39.2mm | mm |
| Dot size | 0.34x0.28 | mm |
| Dot pitch | 0.38x0.32 | mm |
| Operating temp | -30~80 | ℃ |
| Storage temp | -40~80 | ℃ |
| Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V | |
| Viewing direction | 6H | |
| Display mode | FSTN | |
| Display type | TRANSMISSIVE / NEGATIVE | |
| Driver IC | ST7567 | |
| Backlight | WHITE | |
| Product application | industrial control, instrumentation | |
All Products
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |

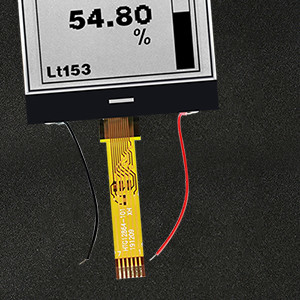

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

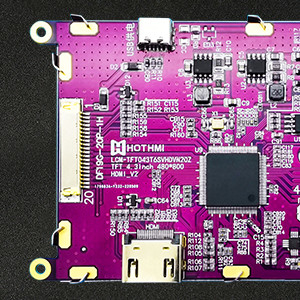

Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.
