產品搜尋
類型：TFT豎屏
顯示像素：800x1280

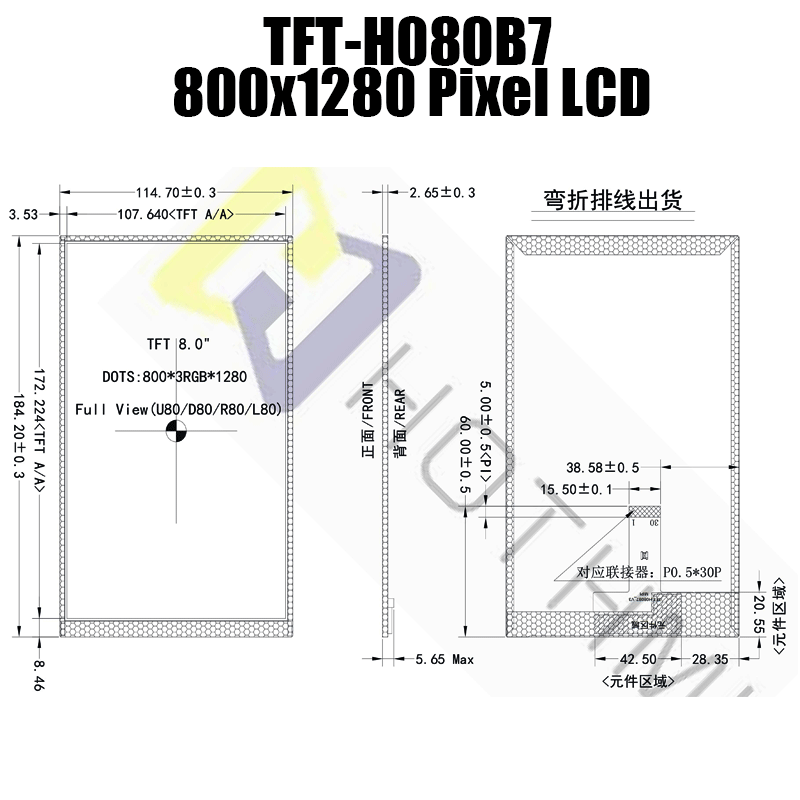

外形尺寸 ：114.70x184.20x2.65
VA尺寸：8.0
AA尺寸 ：8.0
有效尺寸mm：107.64x172.224
應用：車載，醫療，工控
視角：全視角
背光/亮度：600cd/m2
引腳：30pin
接口方式：MIPI
特殊說明：抗靜電ESD 8KV
工作溫度：-20~70℃
供電電壓：2.8v
驅動芯片：NV3051
隆重推出 TFT-H080B7HDINV6N30，這是一款 8.0 英寸 IPS LCD 顯示屏，具有 800x1280 像素的高分辨率，可提供具有鮮艷色彩和清晰細節的驚人視覺效果。 憑借其先進的技術，該顯示器還設計為陽光下可讀，即使在明亮的戶外環境中也能確保最佳可見度。
無論您是將其用于游戲、流媒體視頻還是瀏覽網頁，此 TFT 模塊都是滿足您顯示需求的完美解決方案。 其 MIPI NV3051F1 技術可確?？焖俑咝У臄?shù)據傳輸，而其 IPS 面板可提供寬視角和出色的色彩準確度。
使用 TFT-H080B7HDINV6N30 升級您的設備，體驗全新水平的視覺清晰度和性能。
General information
| Item | Specification | Unit | |
| Outline Dimension | 114.70x184.20x2.65mm | mm | |
| Display area | 107.64x172.224mm | mm | |
| Number of Pixel | 800(H) x 1280(V) | pixels | |
| Pixel pitch | - | mm | |
| Pixel arrangement | RGB Vertical Stripe | ||
| Display mode | Normally Black | ||
| NTSC | 70(Typ.) | % | |
| Surface treatment | Antiglare, Hard-Coating (3H) | ||
| Weight | - | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | NV3051 | W |
| B/L System | - | W | |

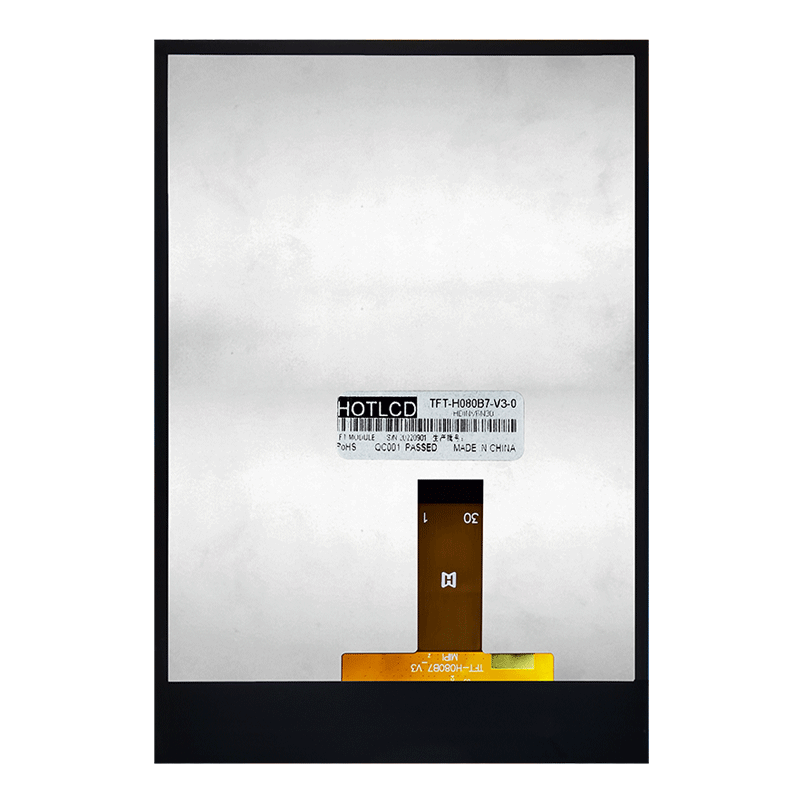

TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | GND | Power supply ground |
| 2 | D2P | LVDS Positive data signal (+) |
| 3 | D2N | LVDS Negative data signal (-) |
| 4 | GND | Power supply ground |
| 5 | D1P | MIPI Positive data signal (+) |
| 6 | D1N | MIPI Negative data signal (-) |
| 7 | GND | Power supply ground |
| 8 | DCKP | MIPI Positive clock signal (+) |
| 9 | DCKN | MIPI Negative clock signal (-) |
| 10 | GND | Power supply ground |
| 11 | D0P | MIPI Positive data signal (+) |
| 12 | D0N | MIPI Negative data signal (-) |
| 13 | GND | Power supply ground |
| 14 | D3P | LVDS Positive data signal (+) |
| 15 | D3N | LVDS Negative data signal (-) |
| 16 ~ 17 | GND | Power supply ground |
| 18 | RESX | Reset pin |
| 19 | IOVCC | IO Supply Voltage |
| 20 | NC | Not connected |
| 21 ~ 22 | VCI | Power supply |
| 23 | NC | Not connected |
| 24 ~ 26 | LEDK | LED cathode |
| 27 | NC | Not connected |
| 28 ~ 30 | LEDA | LED anode |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

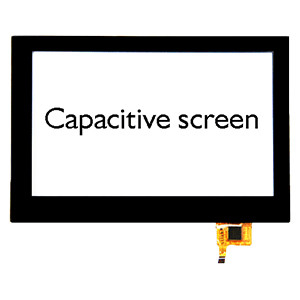

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
