Compatible with mainstream operating systems and embedded operatingsystems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
Supports multi-point USB interface drive-free capacitive touch screen
Support OSD control buttons to help users adjust the LCD screen to the
best state for different appl ication environments， OSD menu can be switched
in Chinese and Engl ish。
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

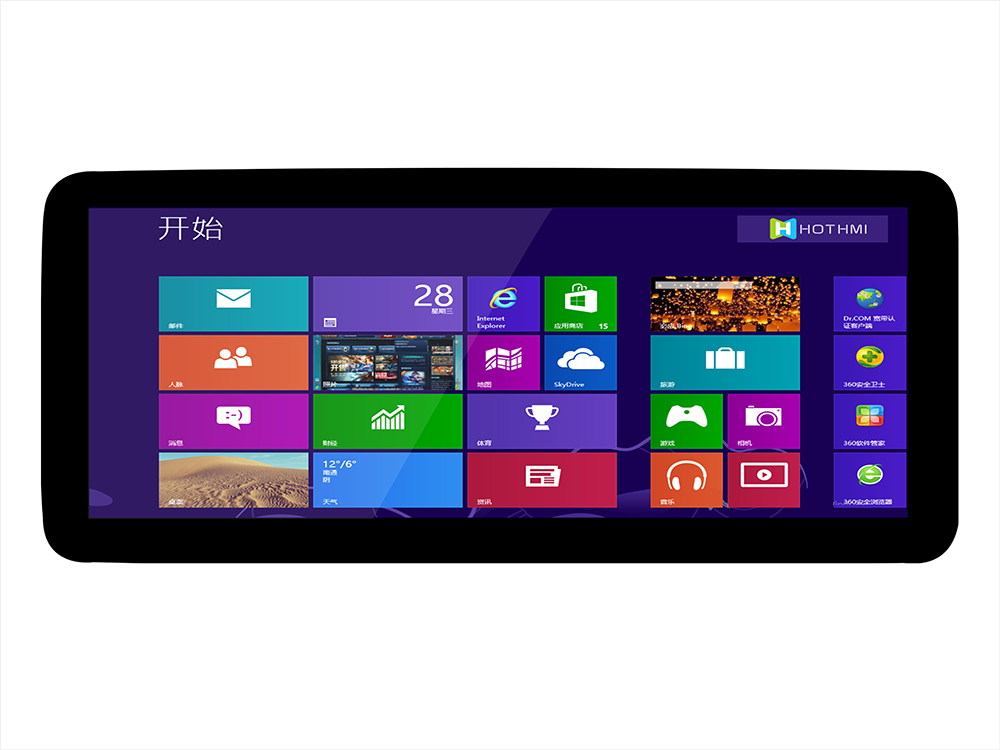

| 12.3" For VGA Signal Interface IPS TFT-LCD (For Raspberry Use) | DISPLAY | 1920x720 |
|
328.128x142.128 | 12.3 | 12.3 | 292.032x109.512 | Full view | 750cd/m2 | VGA | With USB Cap Touch | -20~70℃ | 12V~24V | |||

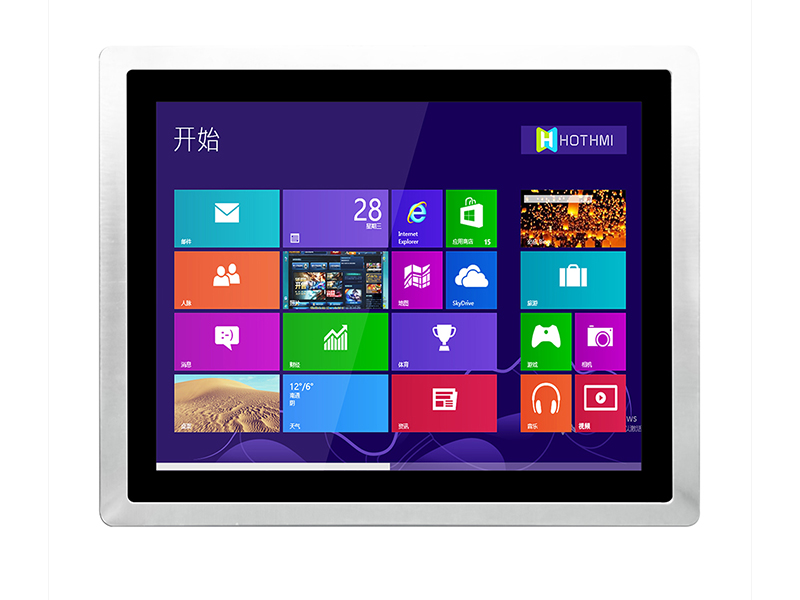

| 15 inch TFT VGA interface | built-in USB interface drive-free capacitive touch screenTFT-150T71XGHDVUSDC | DISPLAY | 1024x768 |
|
376.00x298.00x51.00 | 15.0 | 15.0 | 303.00x226.00 | Full view | 350 | VGA | With USB Cap Touch | -20~70℃ | 9~24V | |||

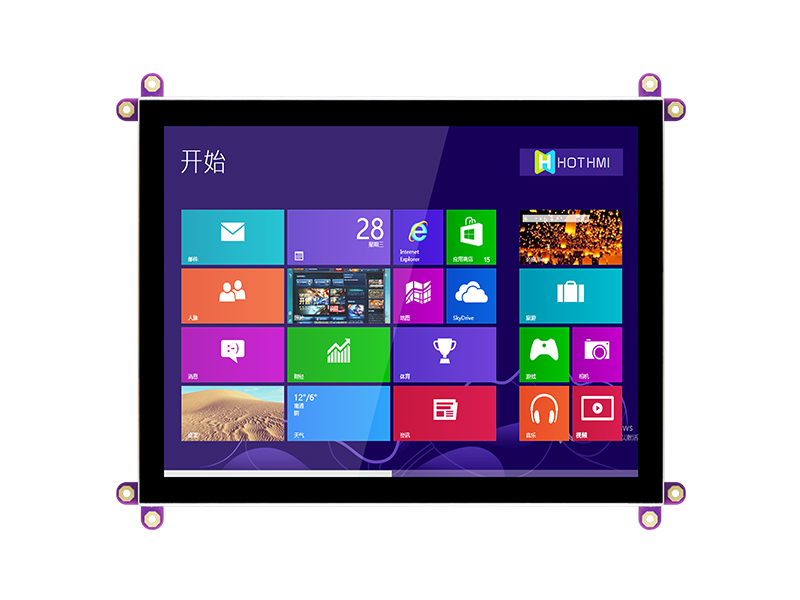

| 8.0 INCH TFT DISPLAY With USB Cap Touch | DISPLAY | 1024x768 |
|
203x161 | 8.0 | 8.0 | 162.05x121.54 | 12H | 650 | VGA | With USB Cap Touch | -20~70℃ | 9~24V | |||

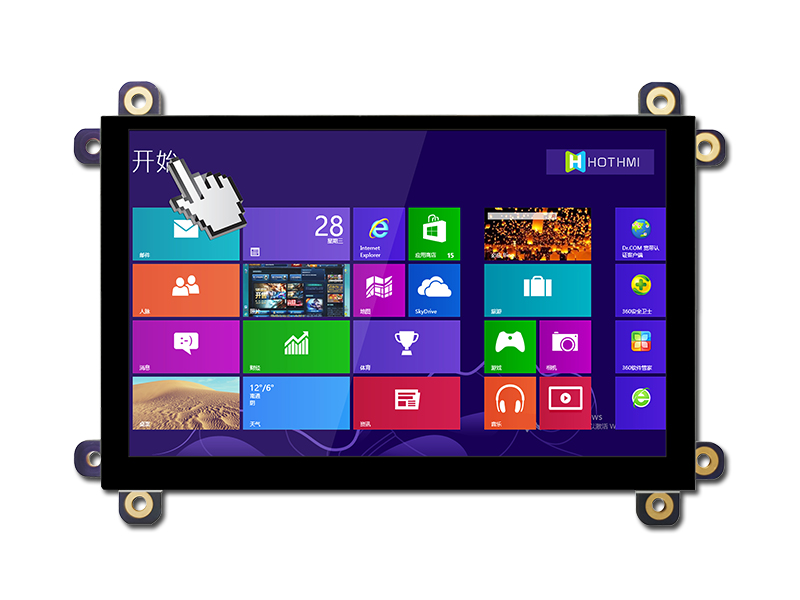

| 5 inch TFT module/800*480 resolution/ VGA interface/with capacitive touch screen/industrial grade/LCM-TFT050T61SVHDVUSDC | DISPLAY | 800x480 |
|
140.0x95.0x15.0 | 5.0 | 5.0 | 108.0x64.8 | Full view | 500cd/m2 | VGA | With USB Cap Touch | -20~70℃ | 5V/1A | |||

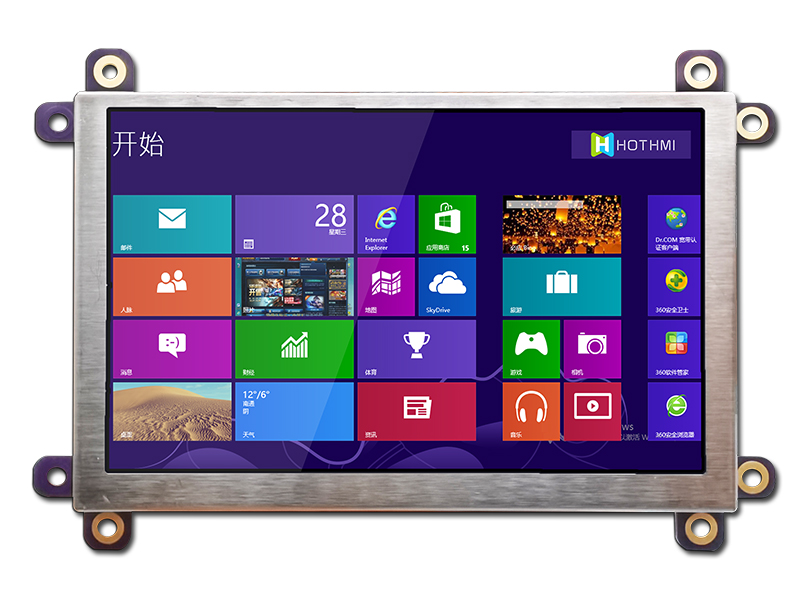

| 5.0 inch TFT/800*480 resolution/VGA interface/LCM-TFT050T61SVHDVNSDC | TFT LCM | 800x480 |
|
140.0x95.0x6.5 | 5.0 | 5.0 | 108.0x64.8 | Full View | 600cd/m2 | VGA | with CTP touch | -30~80℃ | 5.0V | |||

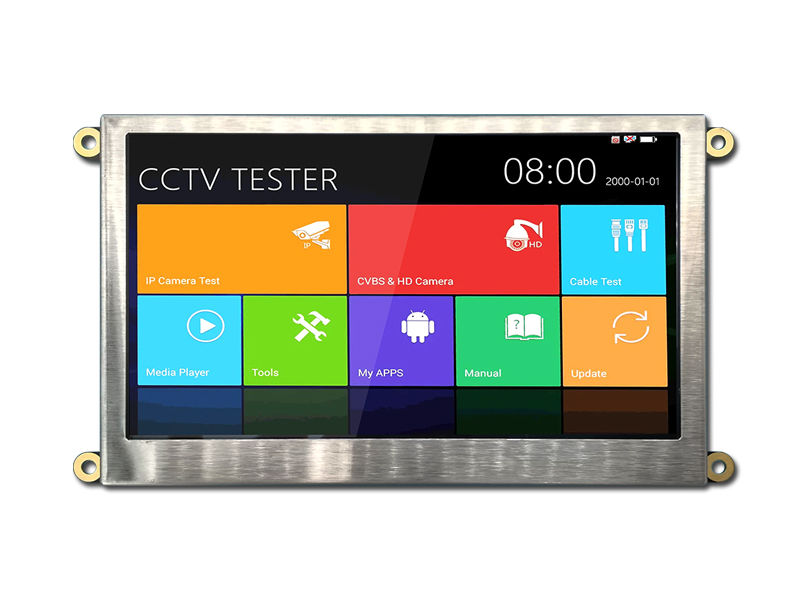

| 4.3 inch TFT/800*480 resolution/ interface/LCM-TFT043T6SVHDVN20Z | TFT Module | 800x480 |
|
120x68.20x5.20 | 4.3 | 4.3 | 95.04x53.86 | Full View | 500cd/m2 | FPC-20PIN | VGA | -30~80℃ | 5.0V | T.B.D | ||

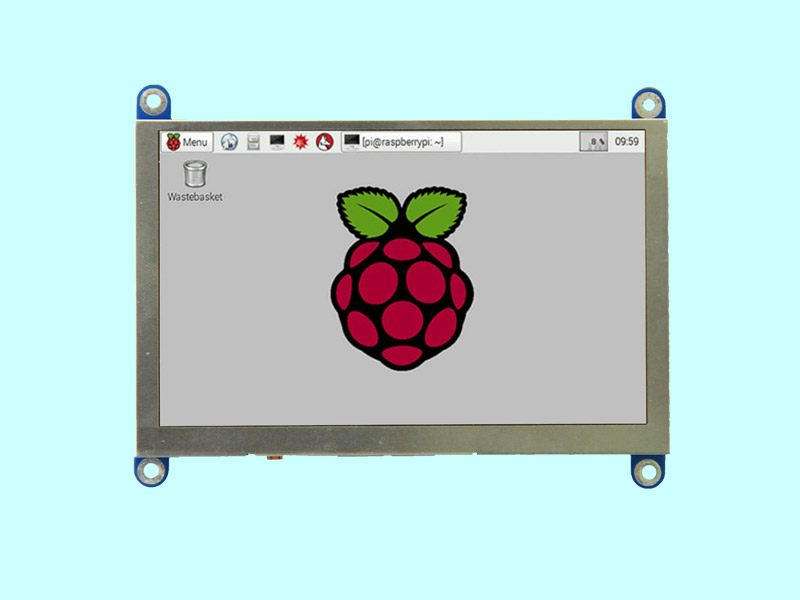

| 4.3 inch TFT/800*480 resolution/interface/Raspberry Pi/Security monitor/LCM-TFT043T2SVHDVN19M | TFT Module | 800x480 |
|
105.5x67.2x5.8 | 4.3 | 4.3 | Full View | 500cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | 3.3V | ||||

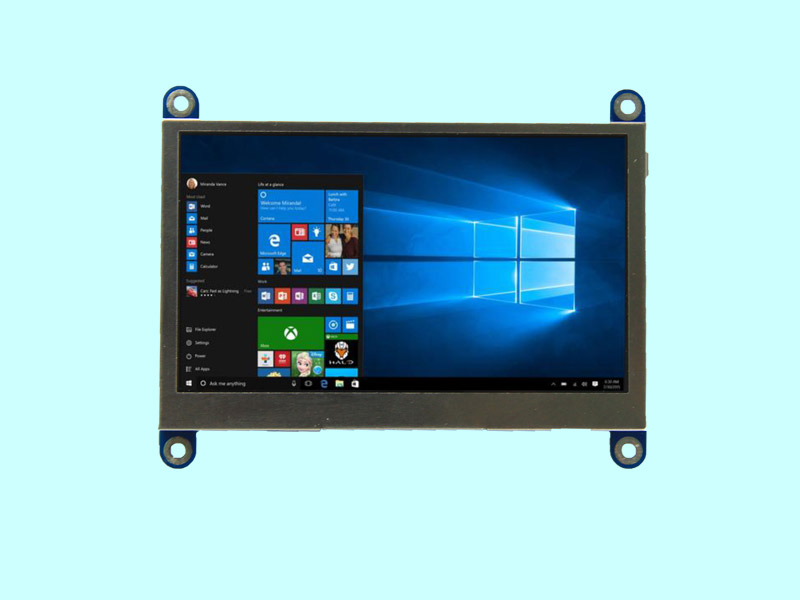

| 5.0寸TFT/800*480分辨率/接口/樹莓派/LCM-TFT050T2SVHDVN19M | TFT Module | 800x480 |
|
120.7x91.3 | 5.0 | 5.0 | 110.0*68.0 | Full View | HI Type C | VGA | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||

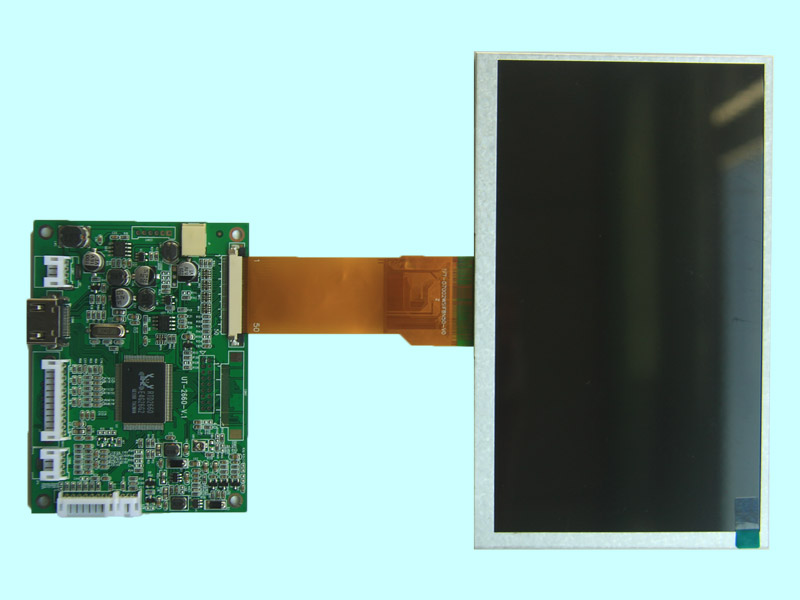

| 7 inch TFT/1024*600Resolution/VGA//HT-H2660 | TFT Module | 1024x600 |
|
164.9x100x5.5 | 7.0 | 7.0 | 154.21x85.92 | Full View | 850cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | 12V | 2660 | ||

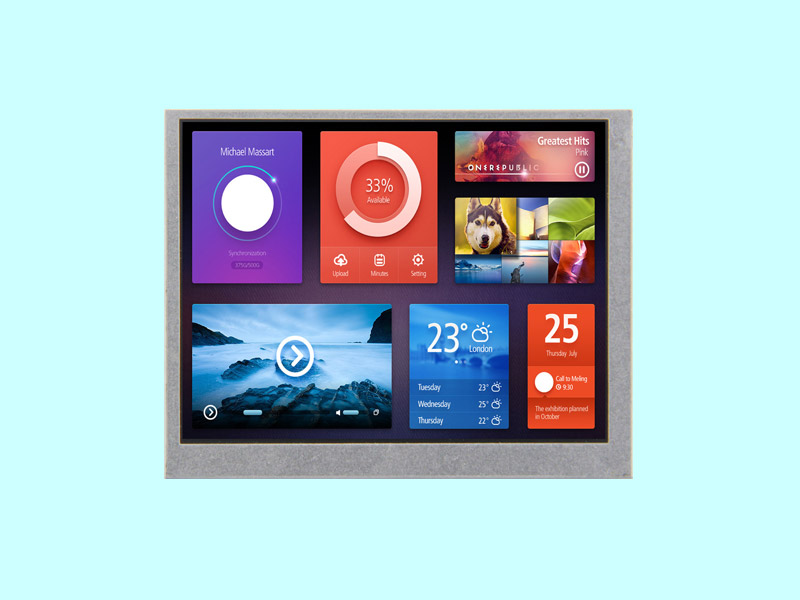

| 5.6 inch MIPI interface TFT Module | 640 * 480 resolution | TFT056A1VGM2N30F | TFT Module | 640x480 |
|
126.5x100.0x9.5 | 5.6 | 5.6 | Full view | 300cd/m2 | FPC-30PIN | MIPI | -20~70℃ | 5.0V |
