  • Model : 12.3" For VGA Signal Interface IPS TFT-LCD (For Raspberry Use)

    Product type: DISPLAY

    Show contents:1920x720

    Outline size(mm) :328.128x142.128

    Size of View Window(mm):12.3

    Display size(mm) :12.3

    Effective size(mm):292.032x109.512

    Product application:Industrial display

    Visual angle:Full view

    Backlight type or brightness:750cd/m2

    Interface mode:VGA

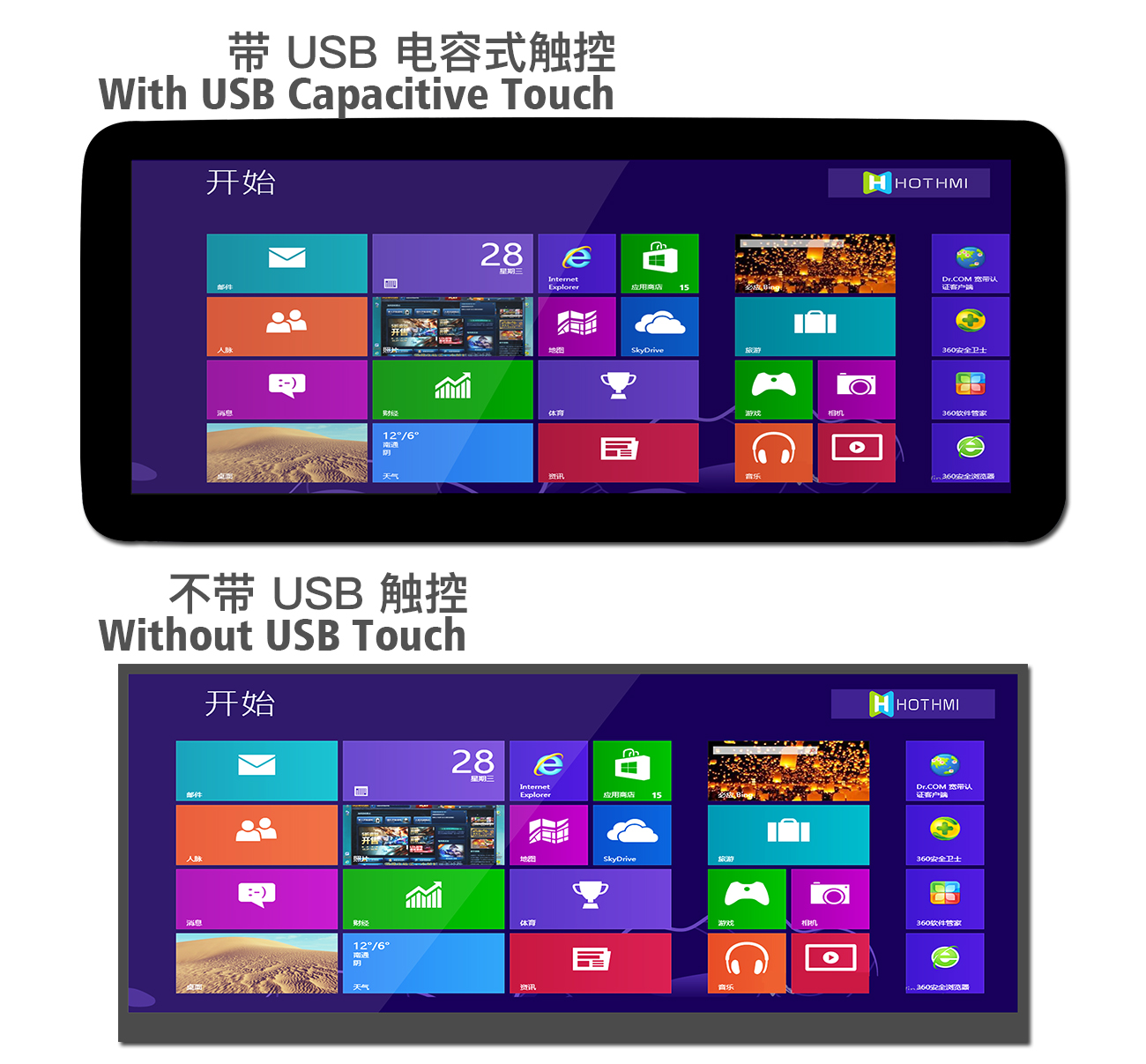

    Special instructions:With USB Cap Touch

    Working temperature:-20~70℃

    Power supply voltage:12V~24V

Product description

TFT123T61FHHDVUSDC is a high-brightness 12.3-inch IPS TFT-LCD monitor supporting  signal interface. The resolution of this TFT module is  1920x720. This module control board is designed to support  signal interface (only DVI) and 40-pin GPIO connector, this design can make the use of Raspberry Pi (Raspberry Pi) developers more convenient to use. TFT-123T61FHHDVUSDC adopts IPS technology to make the viewing angle wider, the typical value is up: 80 / down: 80 / left: 80 / right: 80 degrees, and the TFT module built-in TFP401 controller IC can support  signal interface (only DVI), this This module features a high brightness of 750 cd/m2 (typ.) and a contrast ratio of 1,000:1 (typ.), TFT-123T61FHHDVUSDC is a model equipped with a projected capacitive touch panel (PCAP), which can support a USB interface. This IC can support 10 finger or other touch indices. TFT-123T61FHHDVUSDC module adopts bright glass surface, LCM module (VDD) voltage is 12V-24V. The working temperature range is 20℃~+70℃; the storage temperature range is -30℃~+80℃. This module supports Embedded System of signal interface, The TFT-123T61FHHDVUSDC uses a 12.3-inch IPS TFT panel, with a wide viewing angle and high-brightness backlight. The screen is also equipped with a high resolution of 1920x720. The module has a fast response speed and is compatible with most development software. It is very suitable for various product applications, especially Human-machine interface or POS system, etc. Also.對比1.jpg
