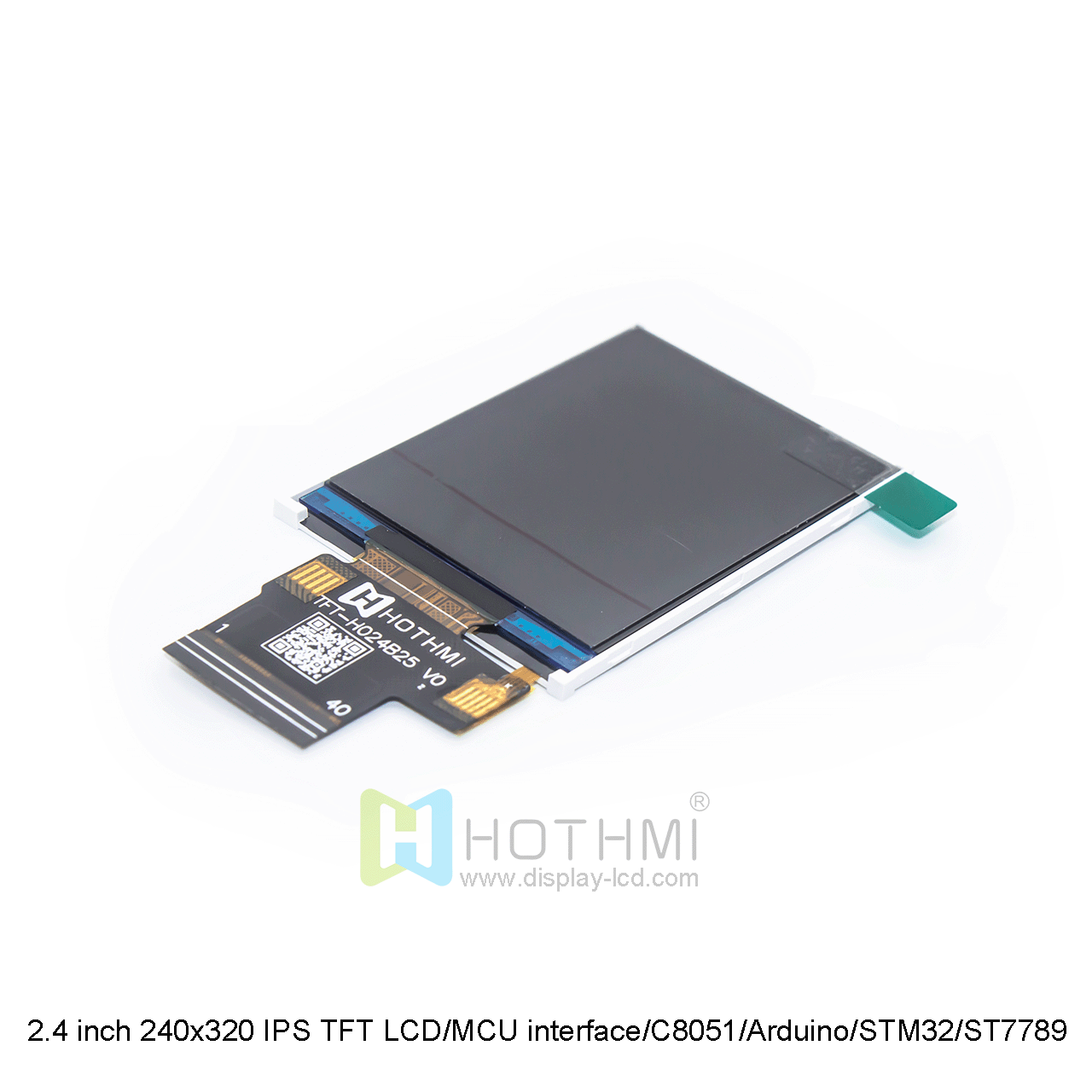

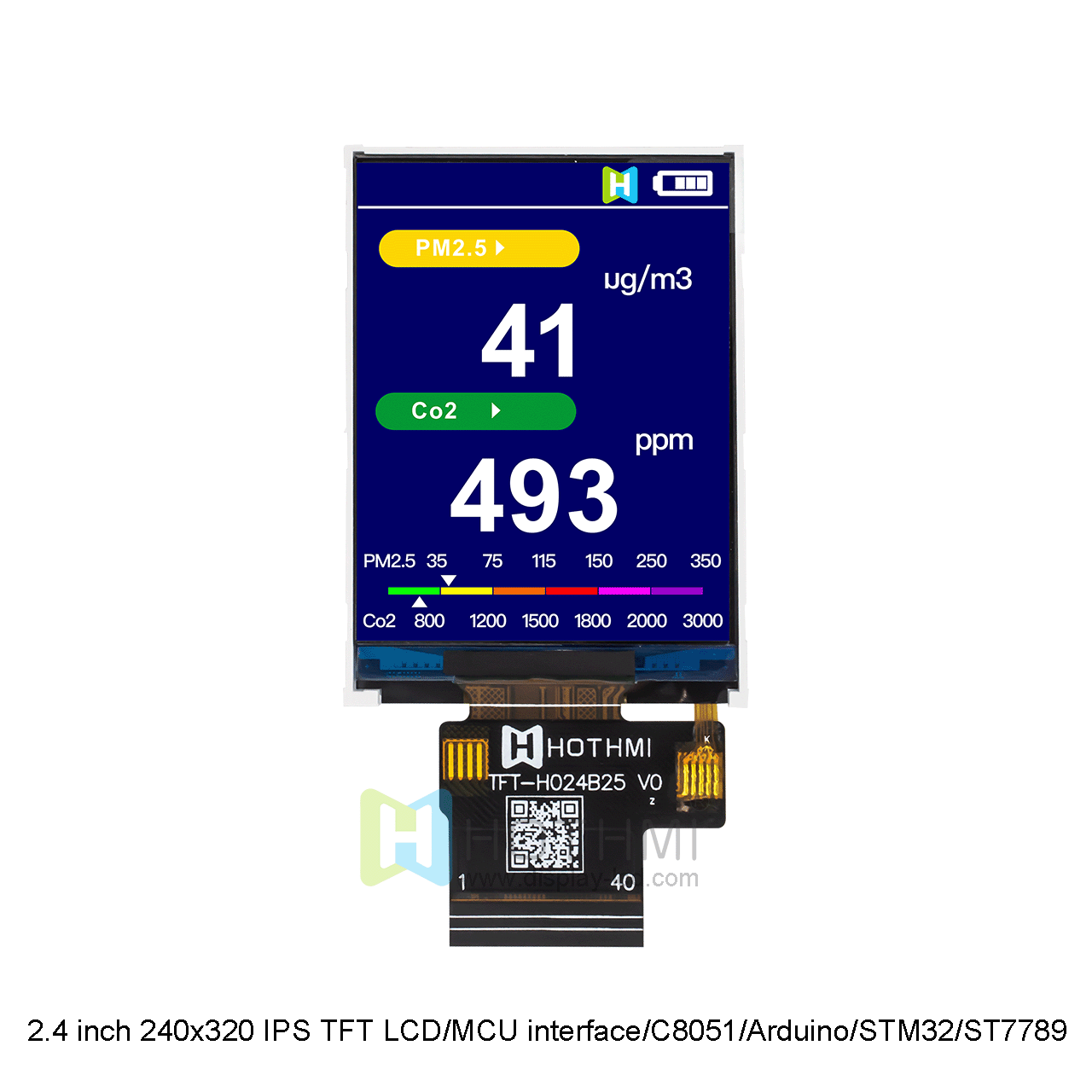

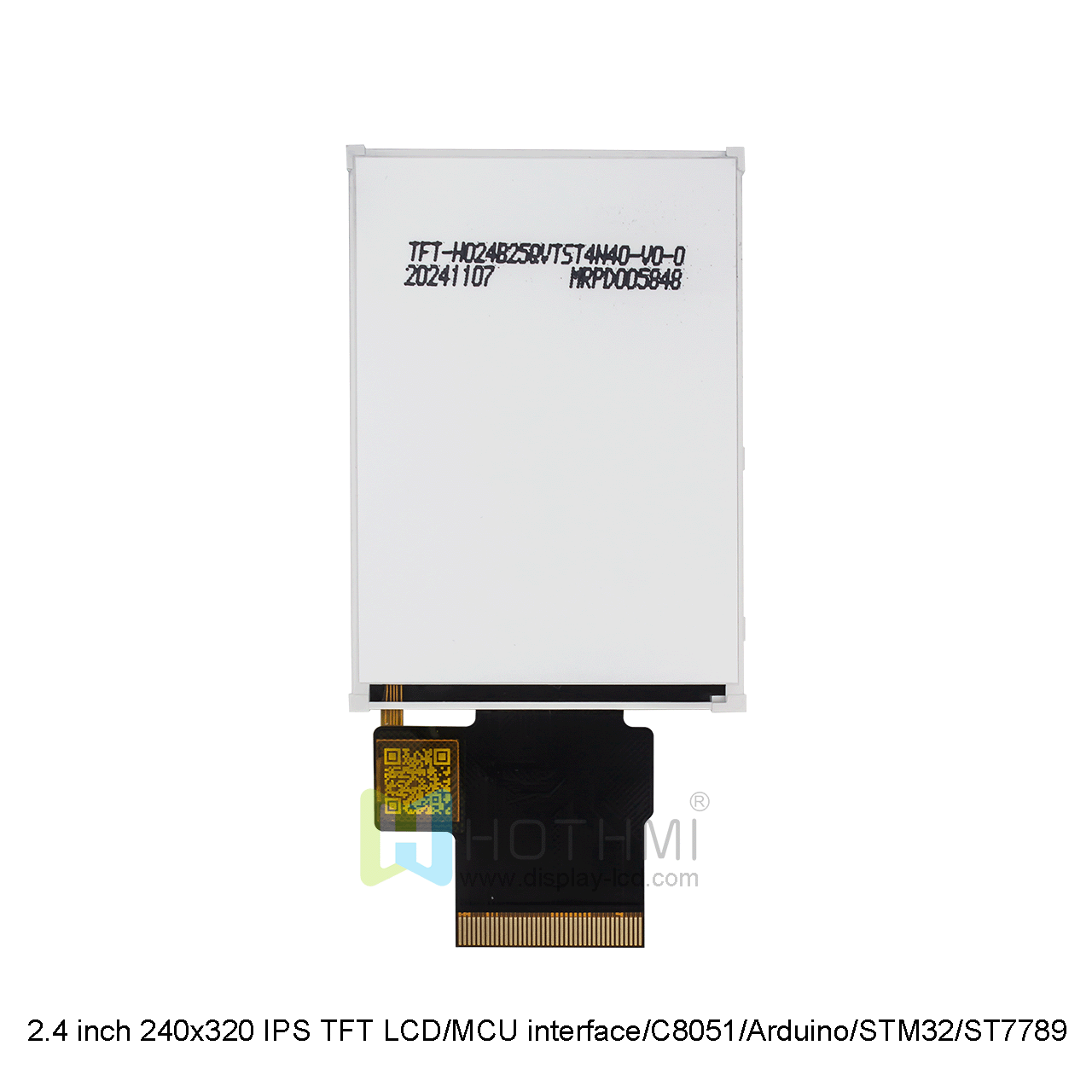

Model : 2.4 inch 240x320 IPS TFT LCD/MCU interface/C8051/Arduino/STM32/ST7789TFT-H024B25QVTST4N40

Product type：TFT Display

Show contents：240x320

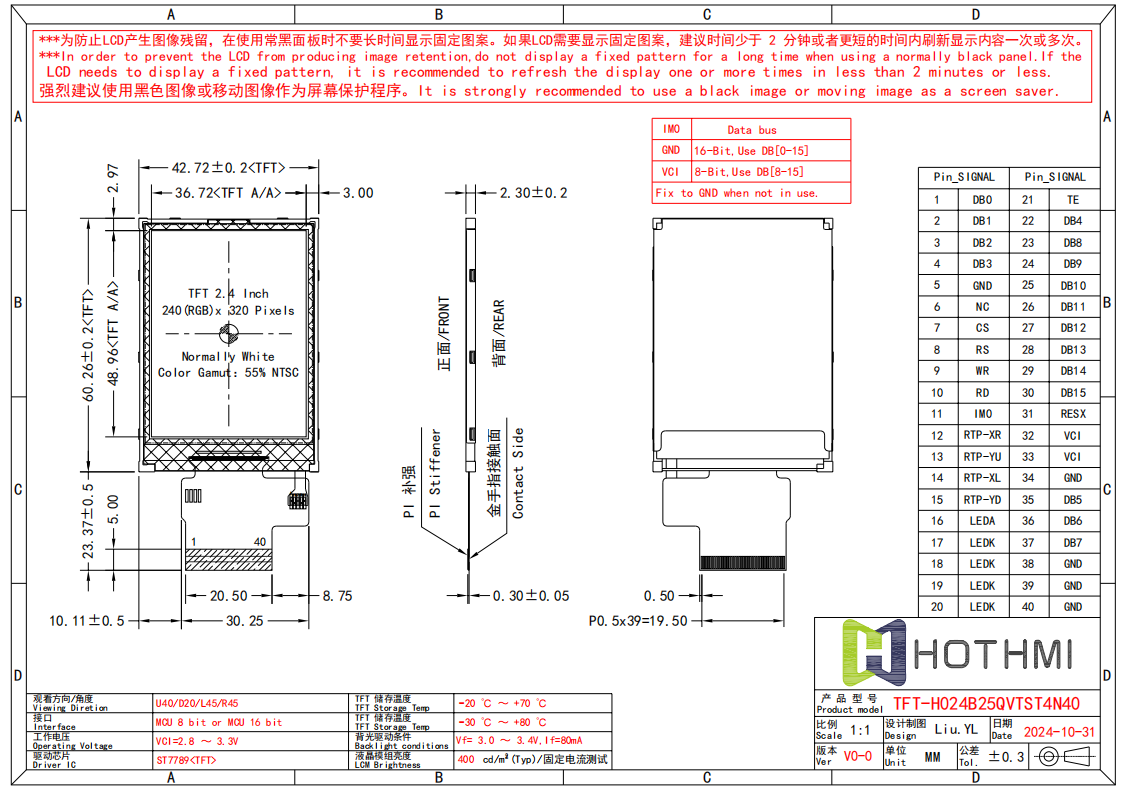

Outline size(mm) ：42.72.0x60.26x2.3

Size of View Window(mm)：2.4

Display size(mm) ：2.4

Effective size(mm)：36.72x48.96

Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle

Visual angle：IPS

Backlight type or brightness：400cd/m2

Connection PIN Number：FPC-40 pin

Interface mode：MCU

Special instructions：Anti-static ESD 8KV

Working temperature：-20~70℃

Power supply voltage：+3.3V

Driver chip model：ST7789<TFT>
PDF download

Product description

2.4-inch 240x320 dot matrix TFT LCD display / 2.4” full-color TFT / wide temperature tft lcd / IPS full viewing angle / MCU interface / C8051 / Arduino / STM32 / ST7789 controller

2.4-inch 240x320 dot matrix TFT LCD display / 2.4” full-color TFT / wide temperature tft lcd / IPS full viewing angle / MCU interface / C8051 / Arduino / STM32 controller

Model TFT-H024B25QVTST4N40 is an IPS full viewing angle display with high picture quality, high contrast and wide color gamut. It has a resolution of 240x320, built-in ST7789 controller, optional touch screen, support MCU interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. Hot Display's display has a wide operating temperature range, and the operating temperature range of this product is -20 ℃ ~ +70 ℃. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for systems such as Arduino.
