Product type：TFT
Show contents：480x800
Outline size(mm) ：57.14x96.85x2.00
Size of View Window(mm)：4.0
Display size(mm) ：4.0
Effective size(mm)：51.84x86.4
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Visual angle：IPS
Backlight type or brightness：500cd/m2
Connection PIN Number：FPC-40 pin
Interface mode：RGB
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：3.3V
Driver chip model：-20~70℃

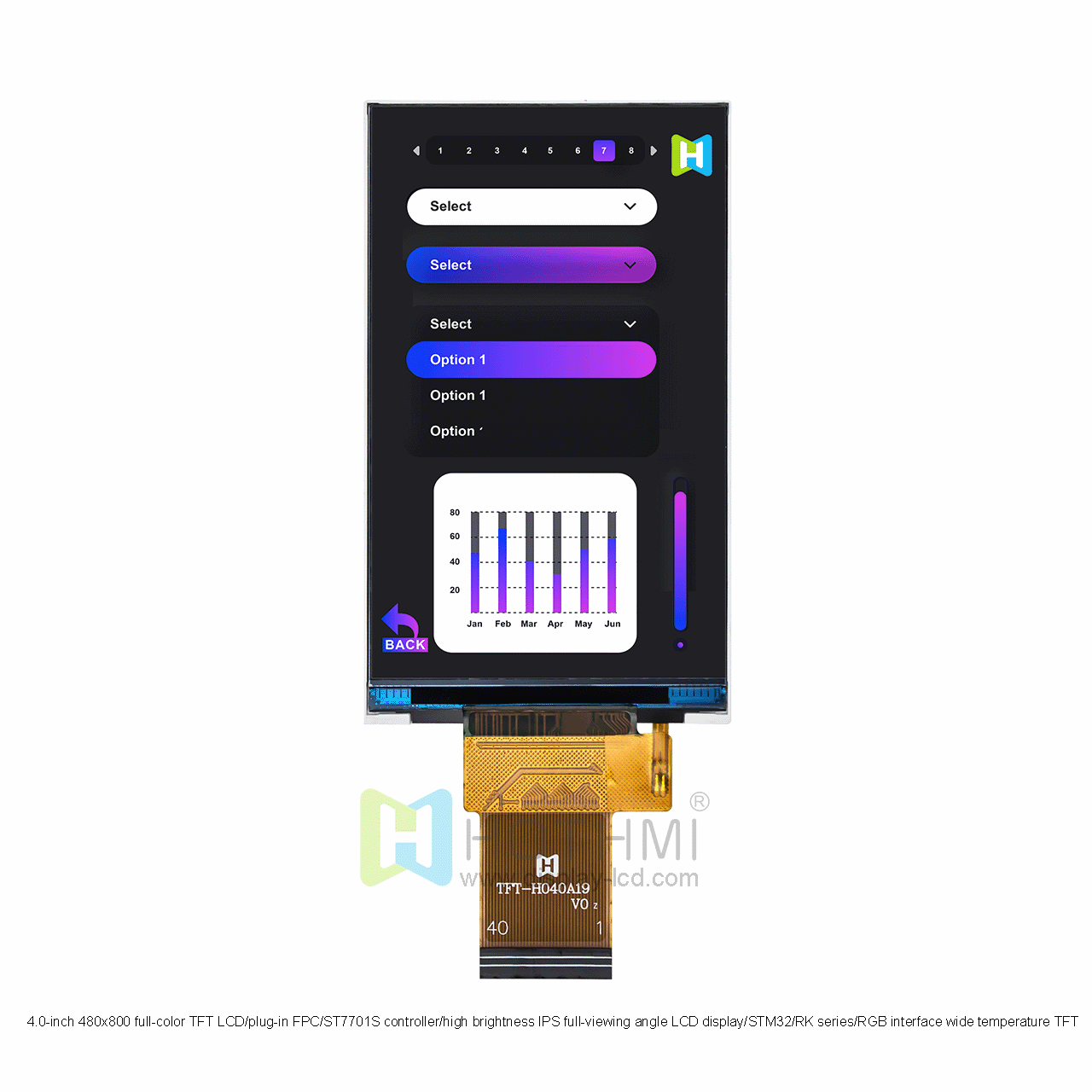

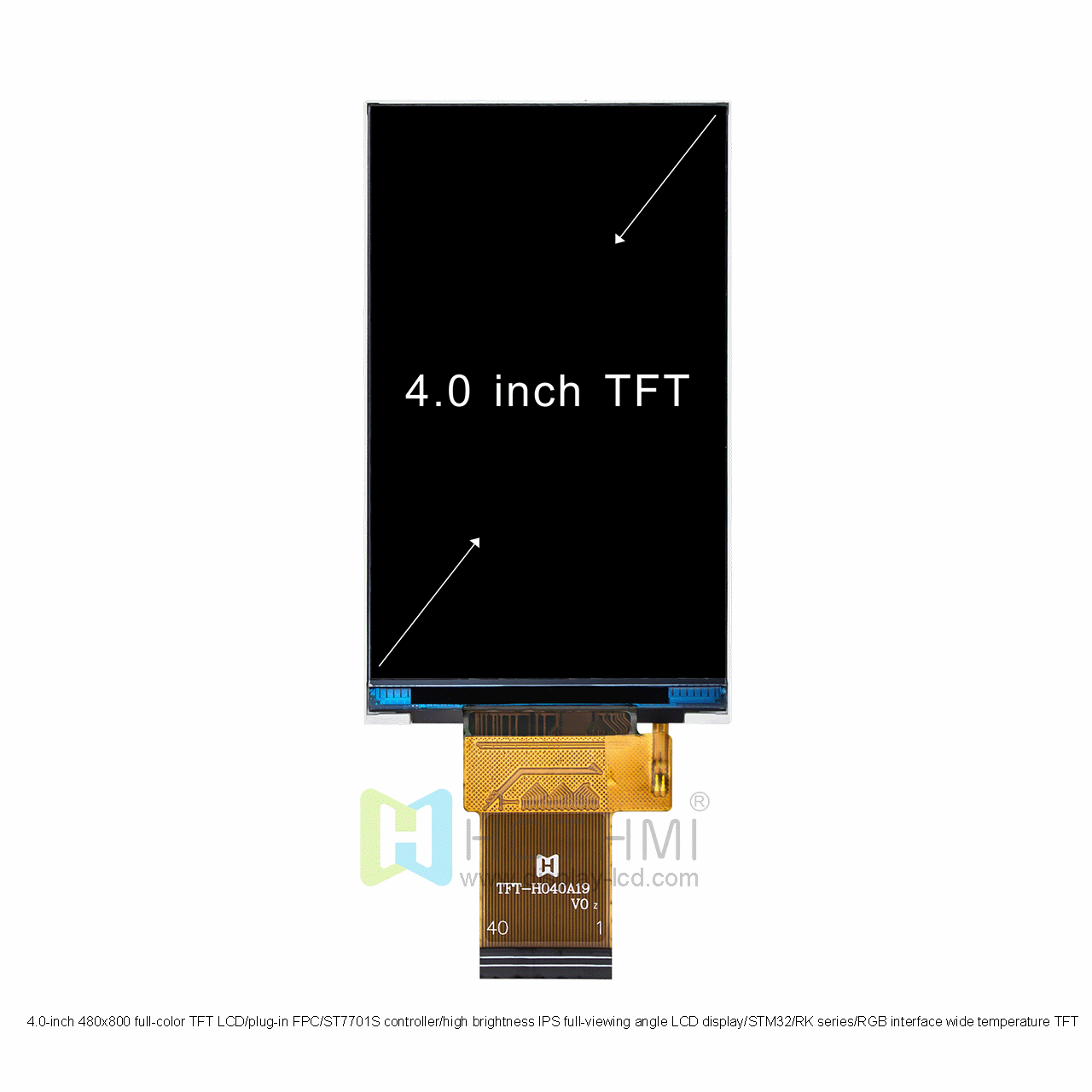

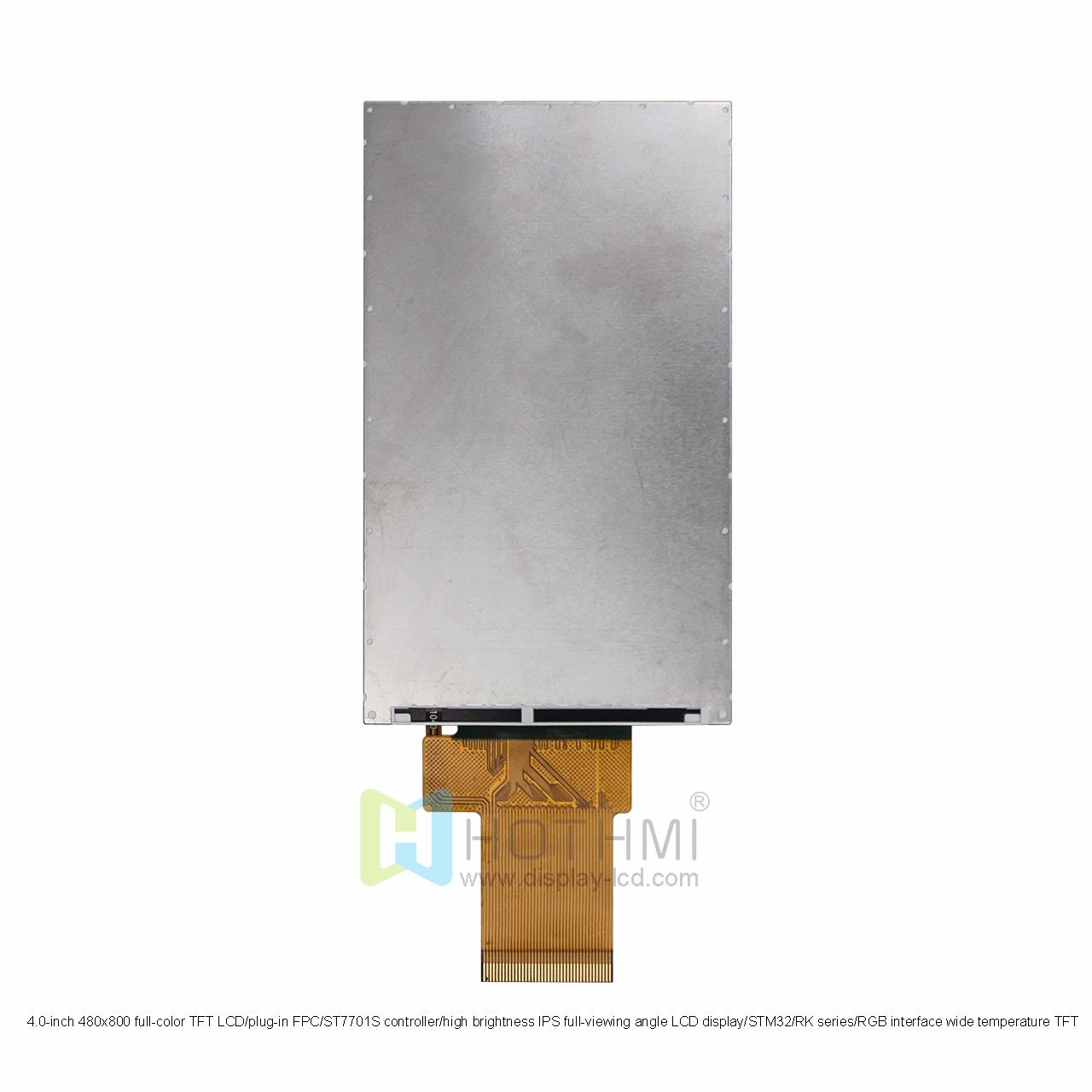

4.0-inch 480x800 full-color TFT LCD/plug-in FPC/ST7701S controller/high brightness IPS full-viewing angle LCD display/STM32/RK series/RGB interface wide temperature TFT-H040A19WVIST5N40 is a 4.0-inch display with a resolution of 480x800. This display supports RGB interface and adopts IPS panel. It has the advantages of wide viewing angle of left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical value), contrast ratio of 800:1 (typical value), brightness of 500 nits (typical value), glare surface panel, and aspect ratio of 1:1.
This 4-inch RGB display integrates the driver IC ST7701S on the module, and the interface supply voltage is typically 3.3V. The TFT-H040A19WVIST5N40 can operate at temperatures between -20℃ and +70℃; its storage temperature range is -30℃ to +80℃.
