Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  2.4寸TFT顯示屏|240*320|IPS全視角|全兼容接口|TFT-H024A7QVIST8N45
  • Model : 2.4-inch TFT display screen | 240 * 320 | IPS full view | full compatible interface | tft-h024a7qvist8n45

    Product type:TFT LCD

    Show contents:240x320

    Outline size(mm) :42.52x59.86x2.2

    Size of View Window(mm):2.4

    Display size(mm) :2.4

    Effective size(mm):36.72x48.96

    Product application:Instruments and Apparatuses

    Visual angle:Full view

    Backlight type or brightness:850cd/m2

    Connection PIN Number:45PIN

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.0V

    Driver chip model:ST7789V

Product description

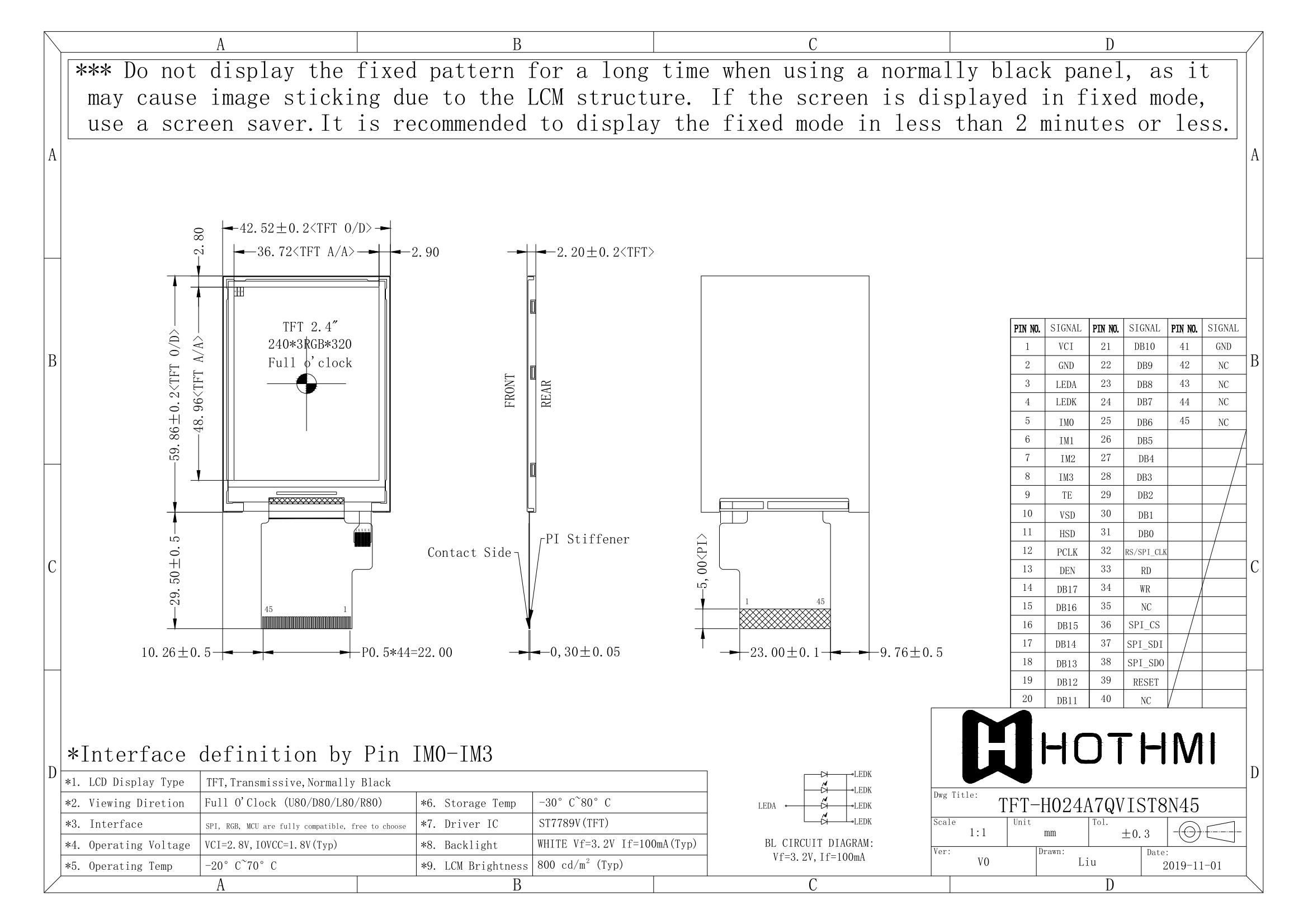

2.4-inch TFT display screen | 240 * 320 | IPS full view | full compatible interface | tft-h024a7qvist8n45TFT-H024A7QVIST8N45_V0_1.png
