Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  4.3寸TFT豎屏| 480*800分辨率| IPS 全視角 | MIPI接口 | TFT-H043A8WVIST5N20
  • Model : 4.3 inch TFT vertical screen, 480 * 800 resolution, IPS full view, Mipi interface, tft-h043a8wvist5n20

    Product type:TFT LCD

    Show contents:480x800

    Outline size(mm) :60.86x102.57x2.7

    Size of View Window(mm):4.3

    Display size(mm) :4.3

    Effective size(mm):56.16x93.6

    Product application: Handheld terminal

    Visual angle:Full view

    Backlight type or brightness:500cd/m2

    Connection PIN Number:20&30PIN/FH12-30S-0.5SH

    Interface mode:MIPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7701S

Product description

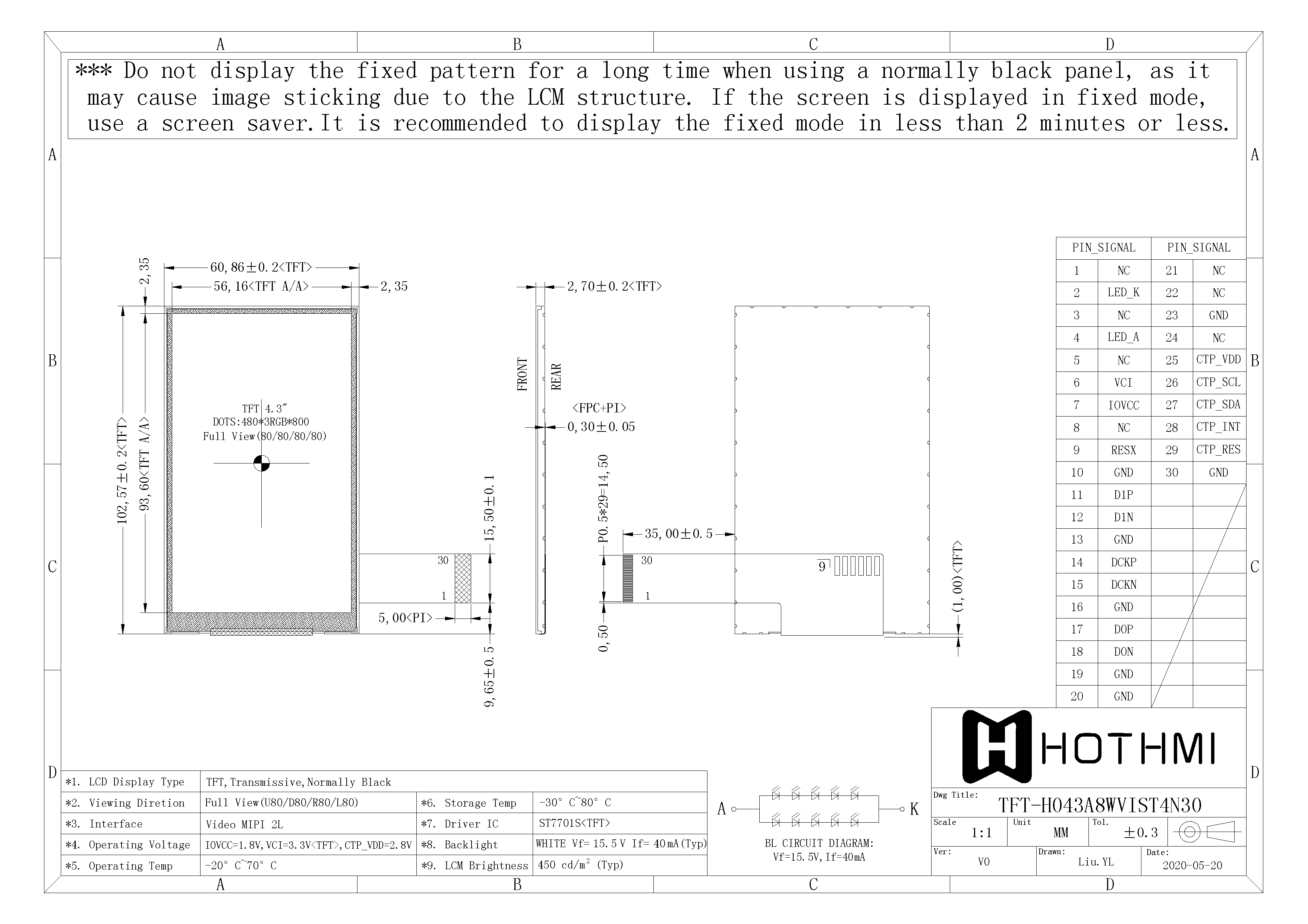

4.3 "TFT vertical screen, 480 * 800 resolution, IPS full view, Mipi interface, tft-h043a8wvist5n20TFT-H043A8WVIST4N30_V0.png
