Location：Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules |MCU8/16|SPI 3/4L|WIth Board  >  5寸高清TFT顯示模塊|MCU8/16位接口|內置SSD1963控制器|內置XPT2046電阻觸摸屏驅動器|LCM-TFT050T1

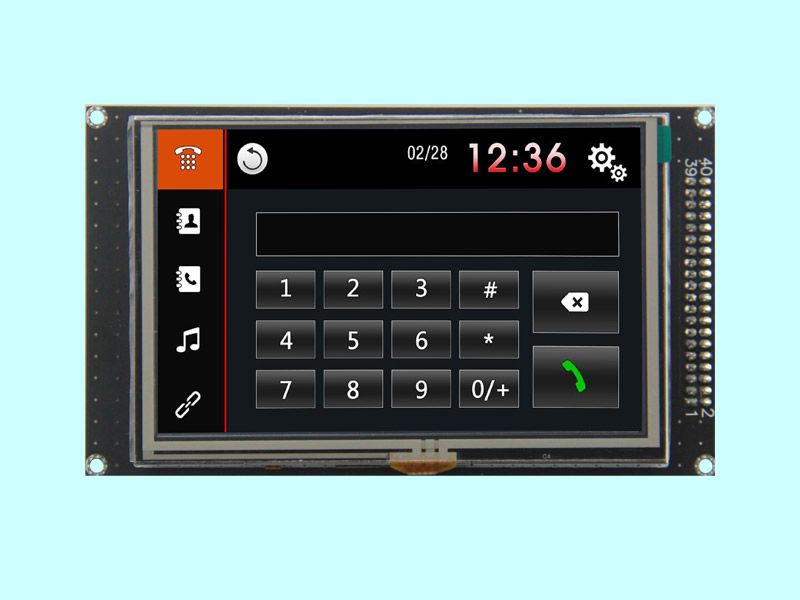

  • Model : 5 inch hd TFT display module | built-in SSD1963 MCU8/16 bit interface| controller built-in XPT2046 resistive touchscreen drives | LCM - TFT050T1

    Product type：TFT MODULE

    Show contents：800x480

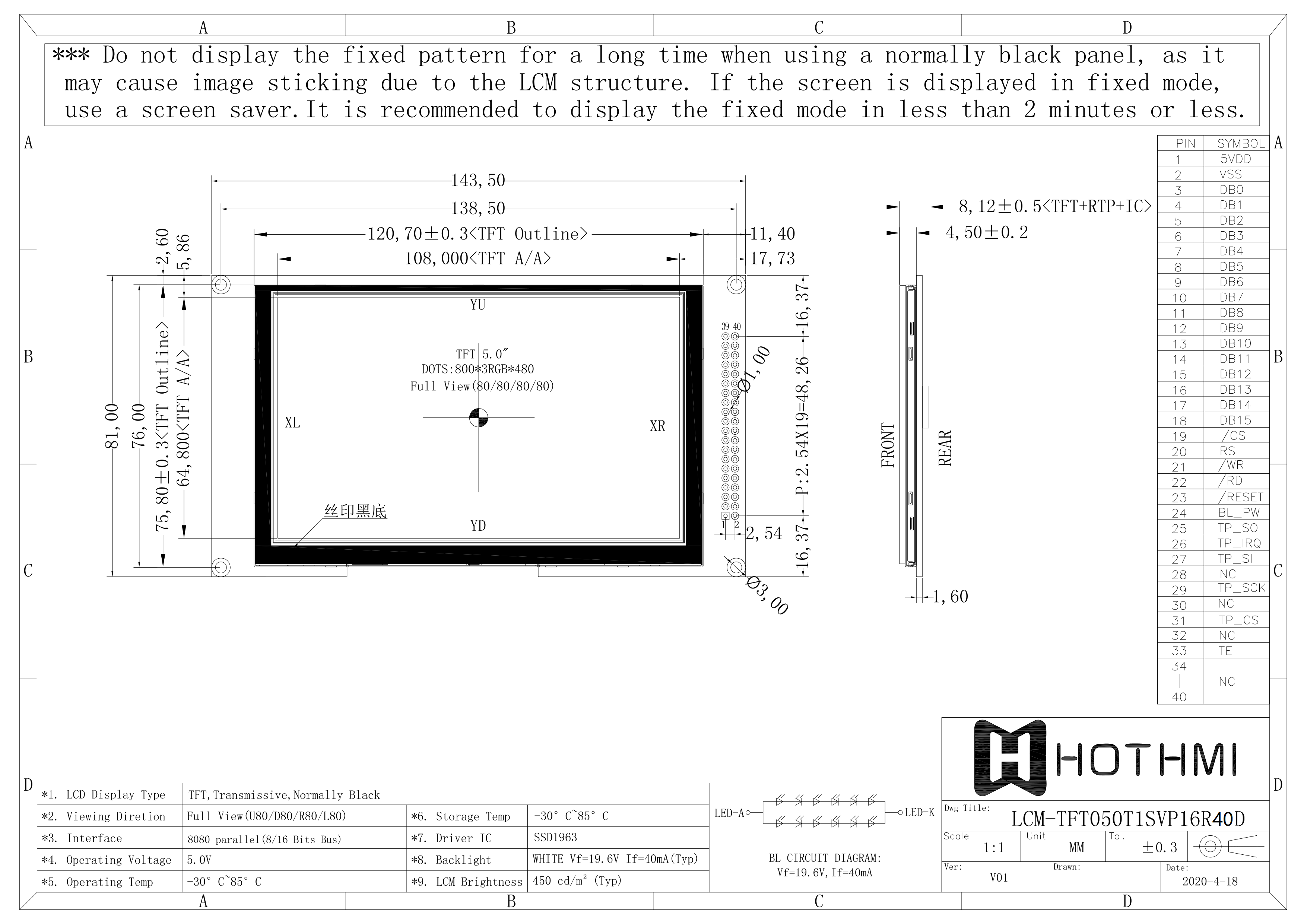

    Outline size(mm) ：143.5x81.0x8.12

    Size of View Window(mm)：5.0

    Display size(mm) ：5.0

    Effective size(mm)：108.0x64.8

    Product application：HMI

    Visual angle：FULL

    Backlight type or brightness：300cd/m2

    Connection PIN Number：40DIP

    Interface mode：MCU

    Special instructions：with RTP

    Working temperature：-20~70℃

    Power supply voltage：5.0V

    Driver chip model：SSD1963

    PDF download
