Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules |MCU8/16|SPI 3/4L|WIth Board  >  4.3寸高清TFT顯示模塊|MCU8/16位接口|內置SSD1963控制器|內置XPT2046電阻觸摸屏驅動器|LCM-TFT043T1

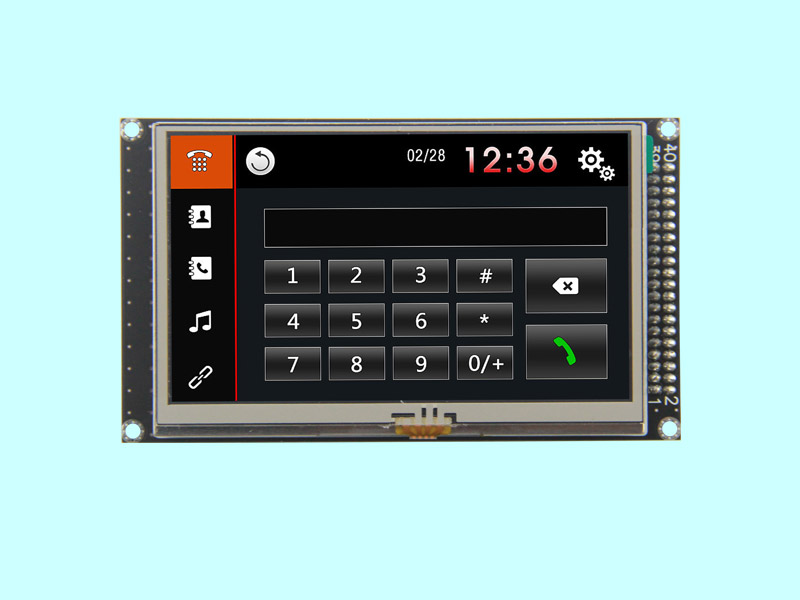

  • Model : 4.3 inch TFT display module | built-in SSD1963 MCU8/16 bit interface controller |built-in XPT2046 resistive touchscreen drives | LCM - TFT043T1

    Product type:TFT MODULE

    Show contents:800x480

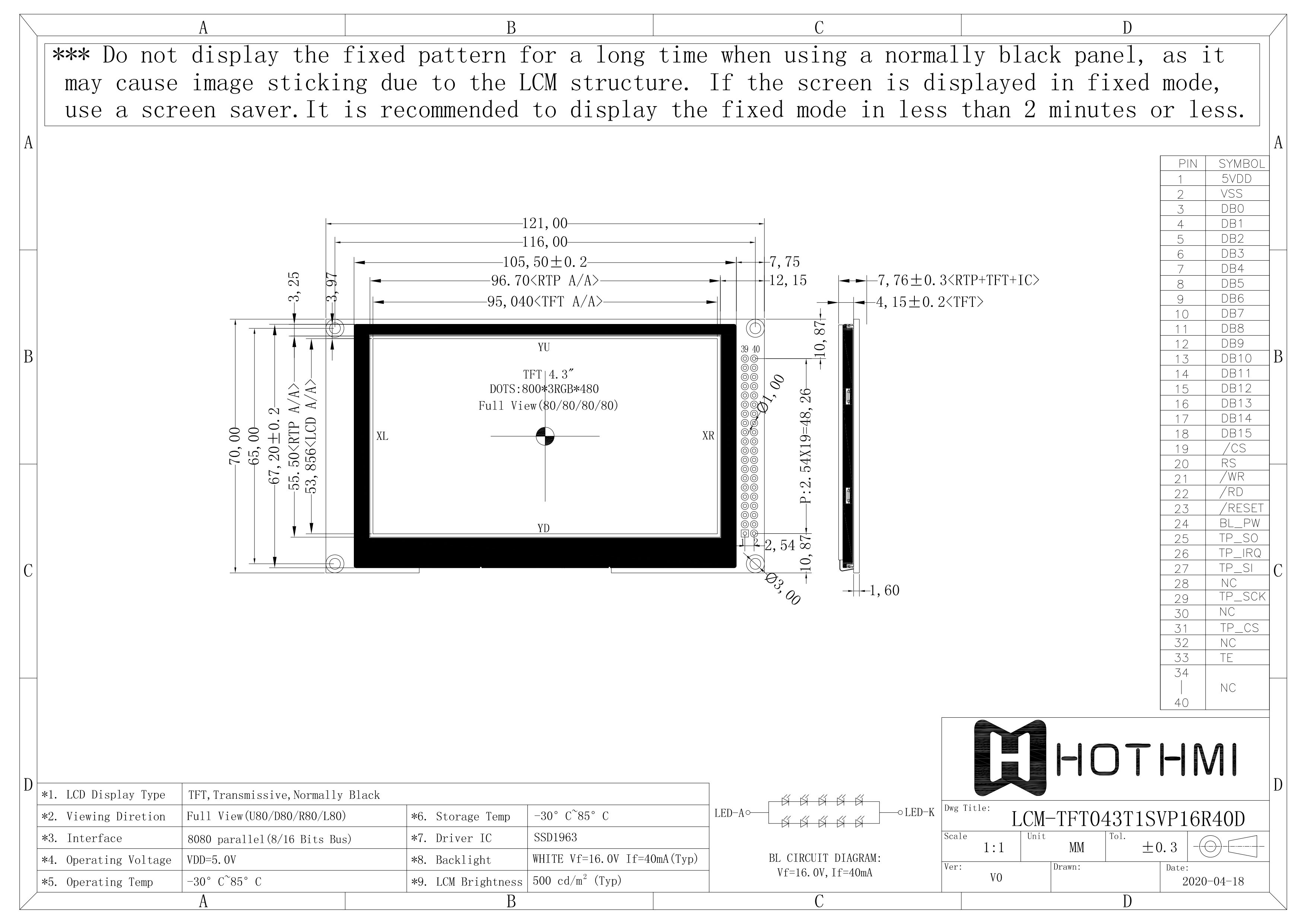

    Outline size(mm) :121.0x70.0x7.76

    Size of View Window(mm):4.3

    Display size(mm) :4.3

    Effective size(mm):95.04x53.85

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:300cd/m2

    Connection PIN Number:40pin

    Interface mode:MCU

    Special instructions:with RTP

    Working temperature:-20~70℃

    Power supply voltage:5.0V

    Driver chip model:SSD1963

    PDF download
