The Chinese character library liquid crystal display module and the liquid crystal module are components which are assembled with a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, a structural member, and a Chinese character library IC.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

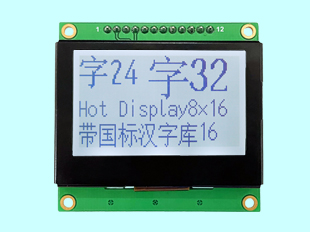

| 132x64 dot matrix LCD module with Chinese character library/HTM13264F | Built-in Chinese font library LCM | 128x64 |
|
74.0x41.7x5.3 | 54.0x30.2 | 48.81x26.61 | 0.41x0.37 | 6H | White | 12PIN | 48.81x26.61 | 3V/5V optional | 3V/5V optional | 3.3V | ST7567 | |

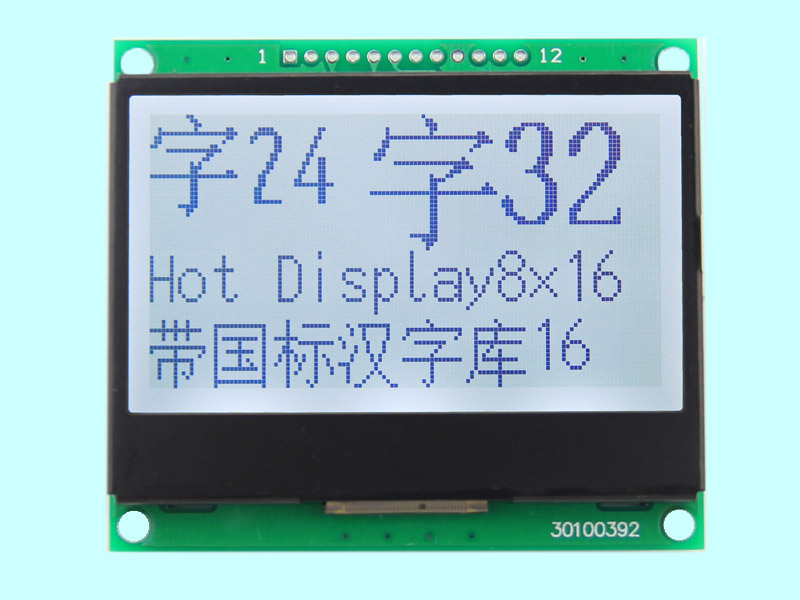

| 128x64 dot matrix LCD module with Chinese character library/HTM12864-117 | Built-in Chinese font library LCM | 128x64 |
|
54.6x52.0x5.2 | 45.2x27.0 | 40.92x24.28 | 0.52x0.52 | 6H | white | 12PIN | SPI | Optional font | -20~70℃ | 3V/5V | ST7567 | |

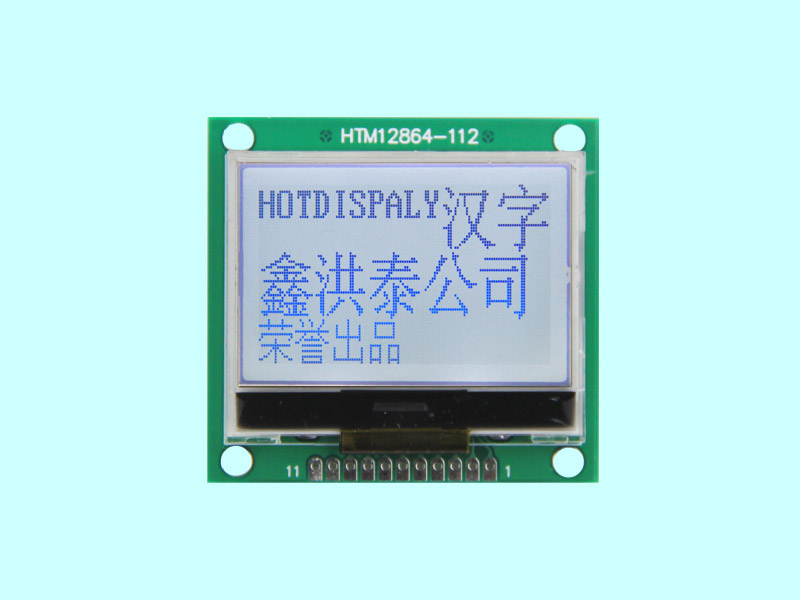

| 128x64 graphic dot matrix LCD module with Chinese character library/HTM12864-112 | LCM | 128x64 |
|
45.0x42.0x5.4 | 36.0x33.5 | 33.25x20.45 | 0.32x0.26 | 6H | 白光 | 11PIN | SPI | -20~70℃ | 3.3v | ST7567 | ||

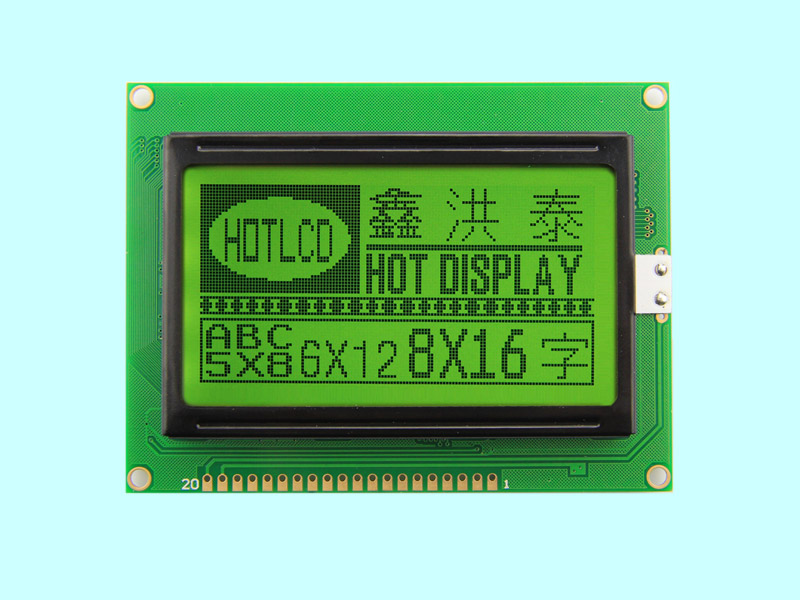

| 128x64 LCM Graphic/HTM12864Z | Graphic LCM | 128x64 |
|
93.0x70.0x10.0 | 71.4x38.7 | 66.52x33.24 | 0.52x0.48 | 6H | YG | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0v | ST7920 | |

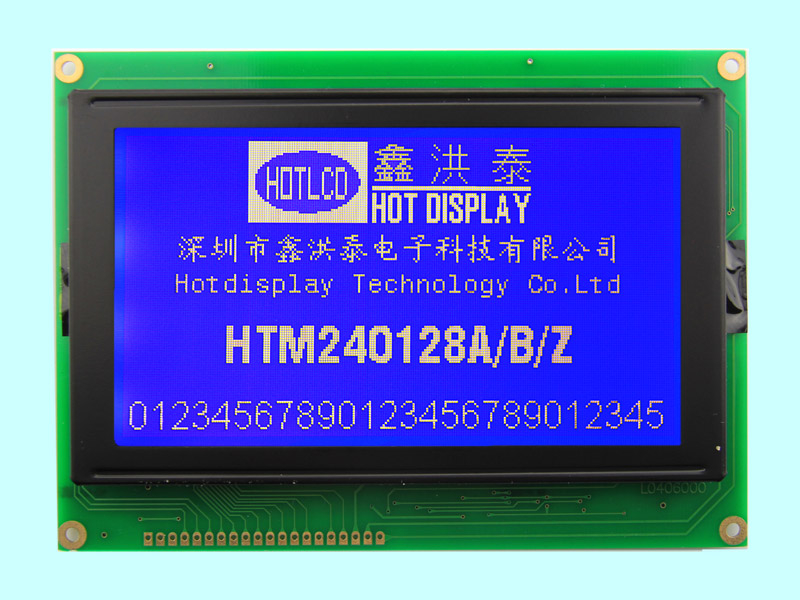

| 240x128 LCM Graphic/HTM240128Z | Graphic LCM | 240x128 |
|
144.0x104.0x14.6 | 114.0x64.0 | 107.95x57.55 | 0.45x0.41 | 6H | WHITE | 20PIN | MCU | -20~70℃ | 5.0V | RA8806 | ||

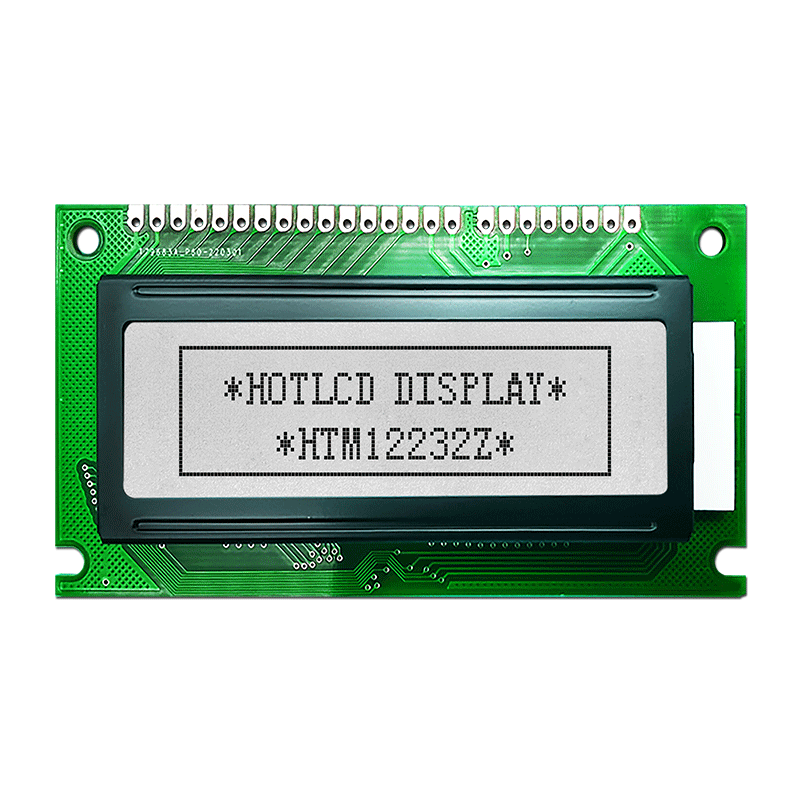

| 122x32 LCM Graphic/HTM12232Z | Graphic LCM | 122x32 |
|
84.0x44.0x13.9 | 60.0x18.0 | 48.76x14..36 | 0.41x0.0.36 | 6H | WHITE | 24PIN | MCU | -20~70℃ | 5.0V | ST7920 | ||

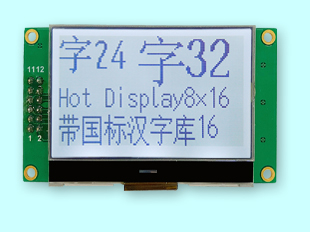

| 128x64 LCM Graphic/HTM12864-85 | Graphic LCM | 128x64 |
|
71.0x62.0x7.8 | 65.5x38.8 | 60.77x32.93 | 0.515x0.475 | 6H | WHITE | 12PIN | SPI | -20~70℃ | 3.3v | ST7565R |
