Location:Home  >  Product Center  >  An on-board & Special TFT Module
An on-board & Special TFT Module

The car-grade and special-type TFT display series is a high-end product category that Xin Hongtai HOTLCD has specially designed for automotive electronics and special industries. In recent years, with the rapid development of technology and intelligence of automotive electronics, various car companies are constantly changing the size of the central control display from monochrome to color. The size of the color screen ranges from a minimum of 3.5 inches to a current maximum of 12.3 inches. The control of the central control panel is getting more and more, and the full LCD display instrument panel will gradually become the "core configuration" of the car.
Xin Hongtai HOTLCD can provide 10.1 inch, 10.3 inch, 12.3 inch three long strip high-resolution car display screens, and later will develop more large-size car-class special display.

Screening results
Checklist Model Product type Show contents Product map Outline size
(mm)
Horizon
(mm)
Display size
mm/inch
Effective size
mm
Visual angle Brightness Pin Interface Instructions Working temperature Voltage Driver chip model

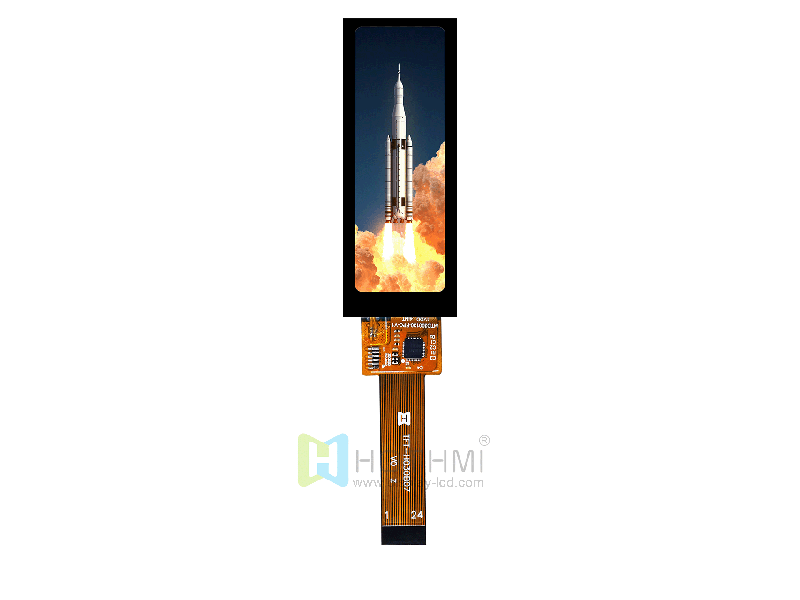

3.0-inch 268x800 full-colorcapacitive touch bar IPS TFT LCD TFT-H030B07ZCIST8C24 TFT bar 260x800 31.0x81.35x3.05 3.0 3.0 24.12x72.0 IPS 800cd/m2 FPC-24 pin MIPI 2L Anti-static ESD 8KV -30~80℃ +3.3V ST7701(TFT),FT6336U(CTP)

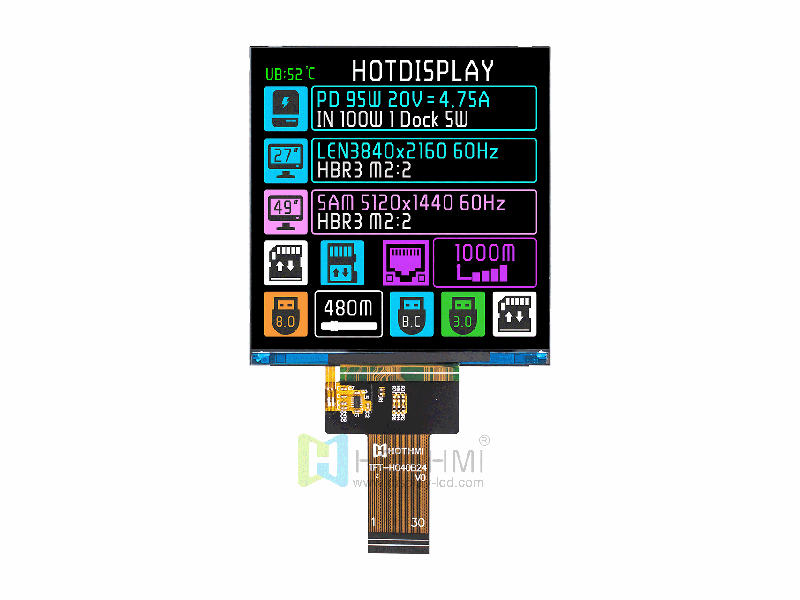

720X720 Resolution 4.0" Full Color Square TFT LCD/ST7703 Controller TFT-H040B24ZKIST5N30 TFT square 720x720 74.83x79.98x2.11 4.0 4.0 71.928x71.928 U85/D85/R85/L85(Typ.) 500cd/m2 FPC-30pin MIPI Anti-static ESD 8KV -20~70℃ 3.3V ST7703

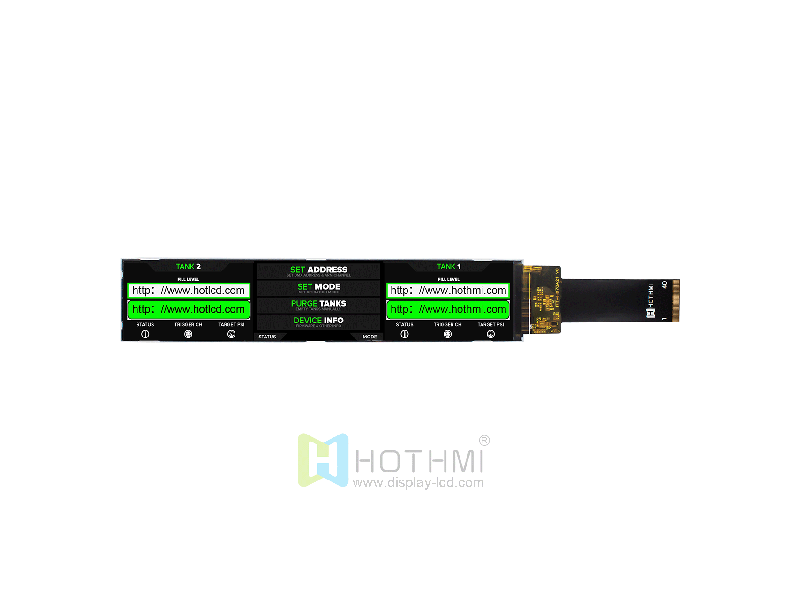

7.0 inch IPS TFT LCD display / 280x1424 resolution color display TFT-H070A21ZBINV6N40 TFT 280X1424 182.47x38.2x3.45 7.0 7.0 170.88x33.6 IPS white backlight 650cd/M2 FPC-40 pin MIPI Anti-static ESD 8KV -30~80℃ +3.3 V ST7703

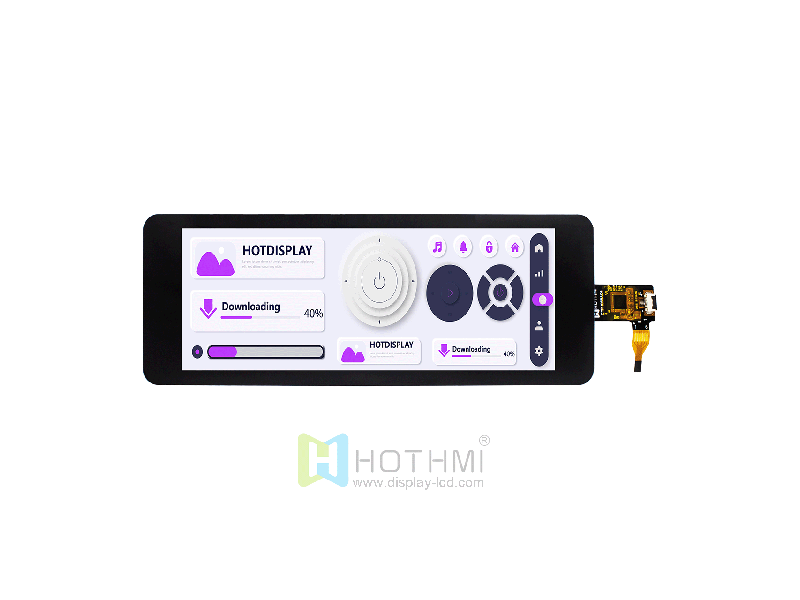

6.8 inch TFT LCD/480x1280 Resolution/Wide Temperature/IPS Full Viewing Angle/Capacitive Touch Screen/Sunlight Readable/TFT-H068A04ZAINV6C40 TFT 480x1280 73.5*195.39.6*6.4 6.8 6.8 60.192*160.512 IPS(U80/D80/R80/L80) 600cd/M2 40pin RGB 24 Bit+3-SPI with touch screen -20~70℃ +3.3 V +3.3 V

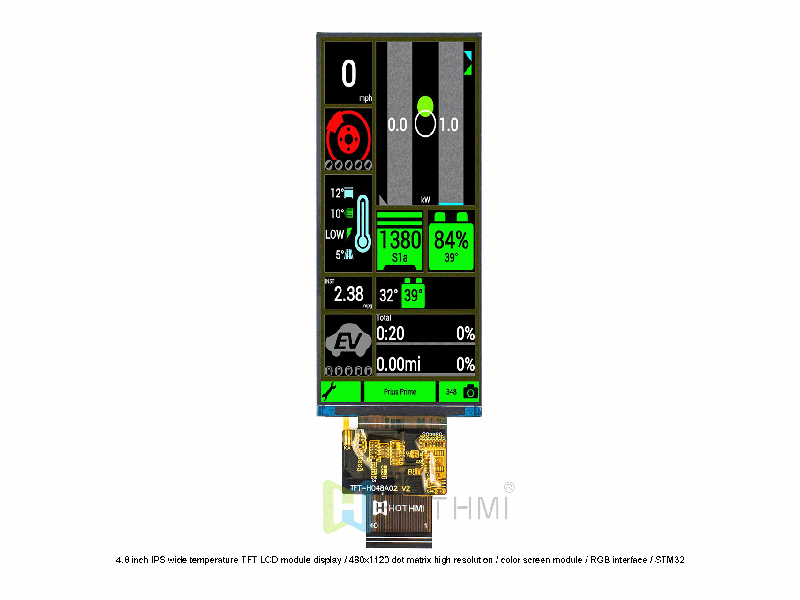

4.8 inch IPS wide temperature TFT LCD module display / 480x1120 dot/ color screen module / RGB interface / STM32/TFT-H048A02ZAIJD3N40 TFT LCD 480x1120 51.46x119.67x2.08 4.8 4.8 47.95x112.56 Full view 350cd/m2 FPC-40PIN RGB Anti-static ESD 8KV -30~80℃ 3.3V T.B.D

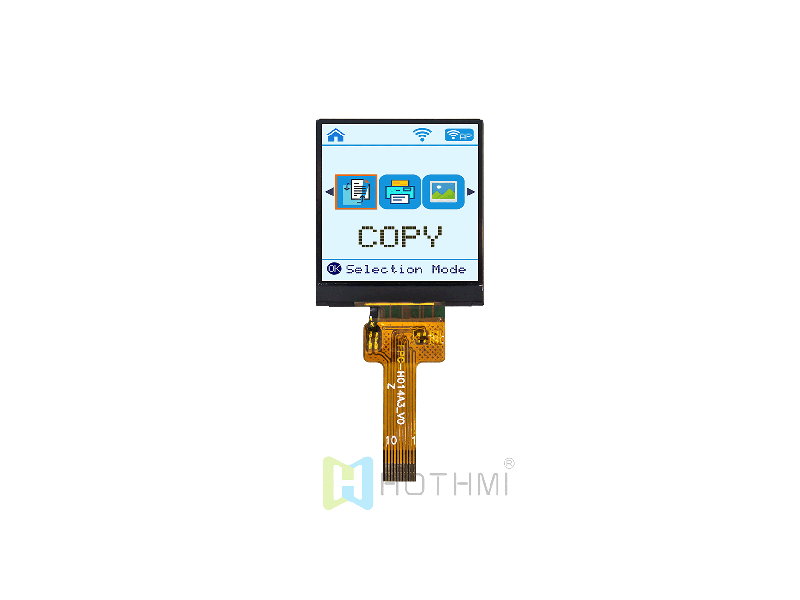

1.4 inch square TFT LCD display module/IPS full viewing angle/240x240 dot matrix/SPI interface/ST7789/compatible with Arduino/TFT-H014A3DQIST4N10 TFT square 240x240 27.56x30.7x1.82 1.4 1.4 25.2x25.2 Full view 400cd/m2 FPC-10PIN SPI Anti-static ESD 8KV -20~70℃ 2.8V ST7789

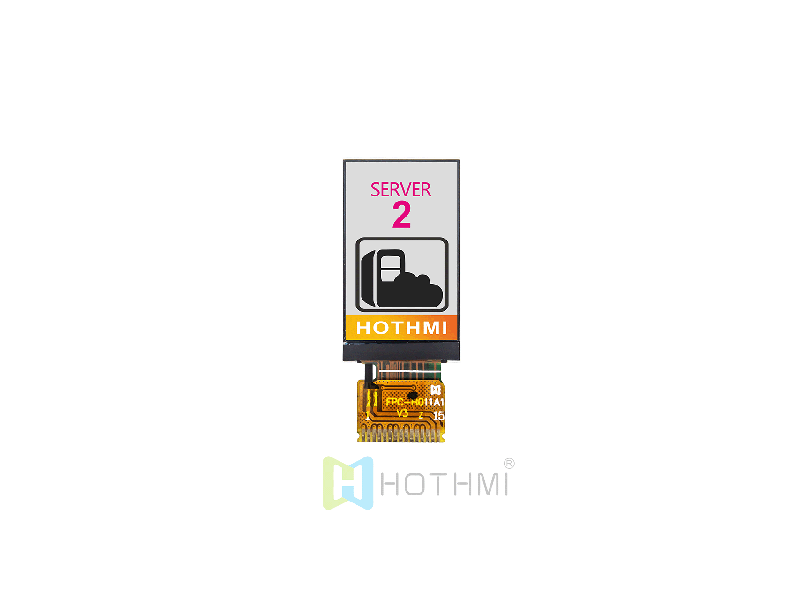

1.14-inch bar TFT LCD display module/IPS/135x240 dot matrix/MIPI/JD9852/readable sunlight/compatible with Android TFT-H011A1QCIFT5N15 TFT bar 135X240 17.60x31.0x1.65 1.14 1.14 14.8635x24.9120 Full view 500cd/m2 FPC-15PIN MIPI Anti-static ESD 8KV -20~70℃ 2.8V JD9852

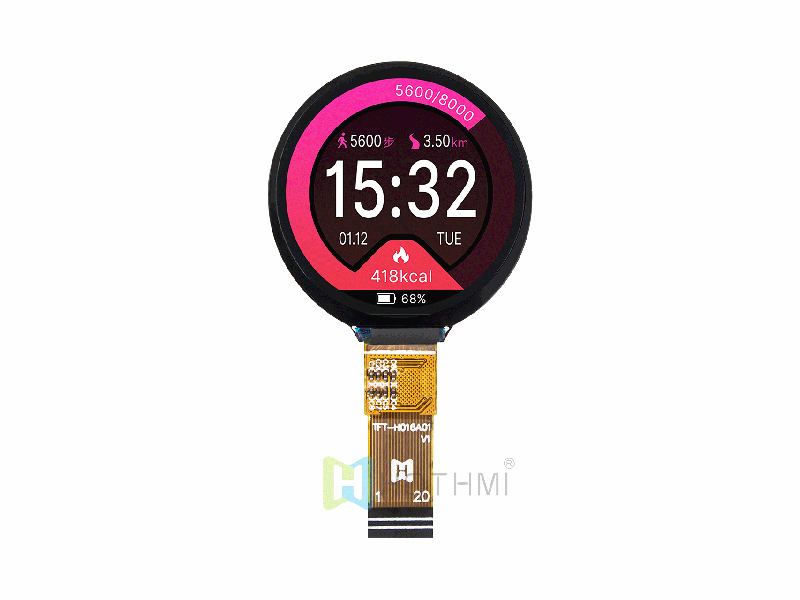

1.6-inch round TFT LCD display/MIPI interface/400x400 dots/IPS full viewing angle/wide temperature/ST7797/TFT-H016A01ZGIST4N20 TFT circular 400x400 42.14x44.34x1.95 1.6 1.6 39.84x39.84 Full view 500cd/m2 FPC-20PIN MIPI Anti-static ESD 8KV -30~80℃ 3.3V ST7797

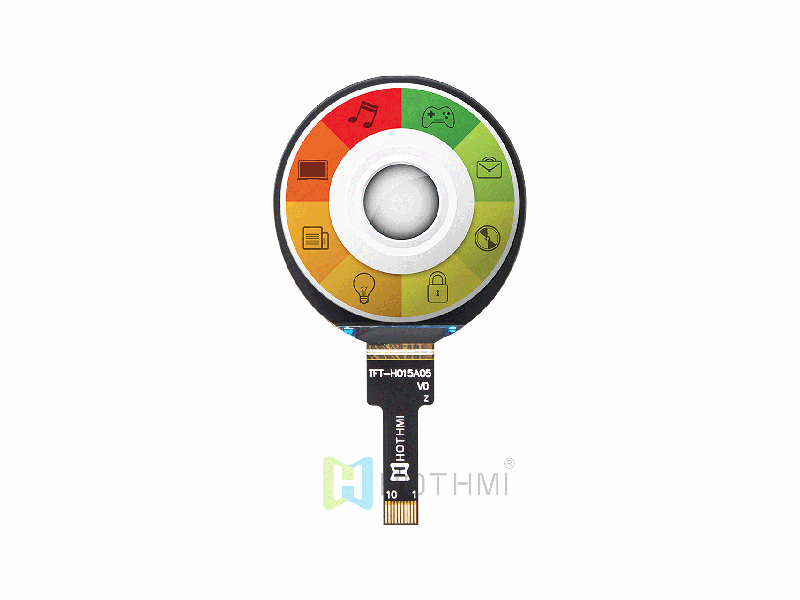

1.5 inch round TFT LCD display 360x360 dot matrix/IPS full viewing angle/wide temperature/ST77916/optional touch screen/TFT-H015A05ZNIST3N10 TFT circular screen 360x360 39.3x40.96x1.6 1.5 1.5 37.3x37.3 Full view 300cd/m2 FPC-10PIN SPI Anti-static ESD 8KV -30~80℃ 3.3V ST77916

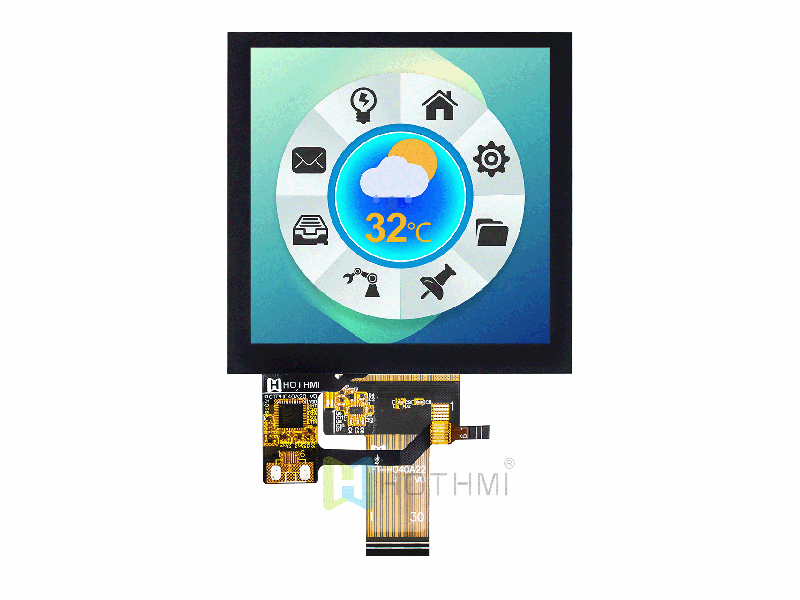

4.0inch square TFT LCD module display 720X720px HD/ST7701S/LVDS interface/IPS/with capacitive touch screen/TFT-H040A22DKINV3C30 TFT square 720x720 80.150x83.2x3.8 4.0 4.0 71.928x71.928 IPS全視角 350cd/m2 FPC-30PIN LVDS With capacitive touch function -30~80 ℃ 3.3V ST7701S
