Product type：TFT Module
Show contents：800X480
Outline size(mm) ：143.0x80x8.1
Size of View Window(mm)：5.0
Display size(mm) ：5.0
Effective size(mm)：108.0x64.8
Product application：technical equipment, office equipment, access control
Visual angle：IPS
Backlight type or brightness：white backlight 700cd/M2
Interface mode：MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V

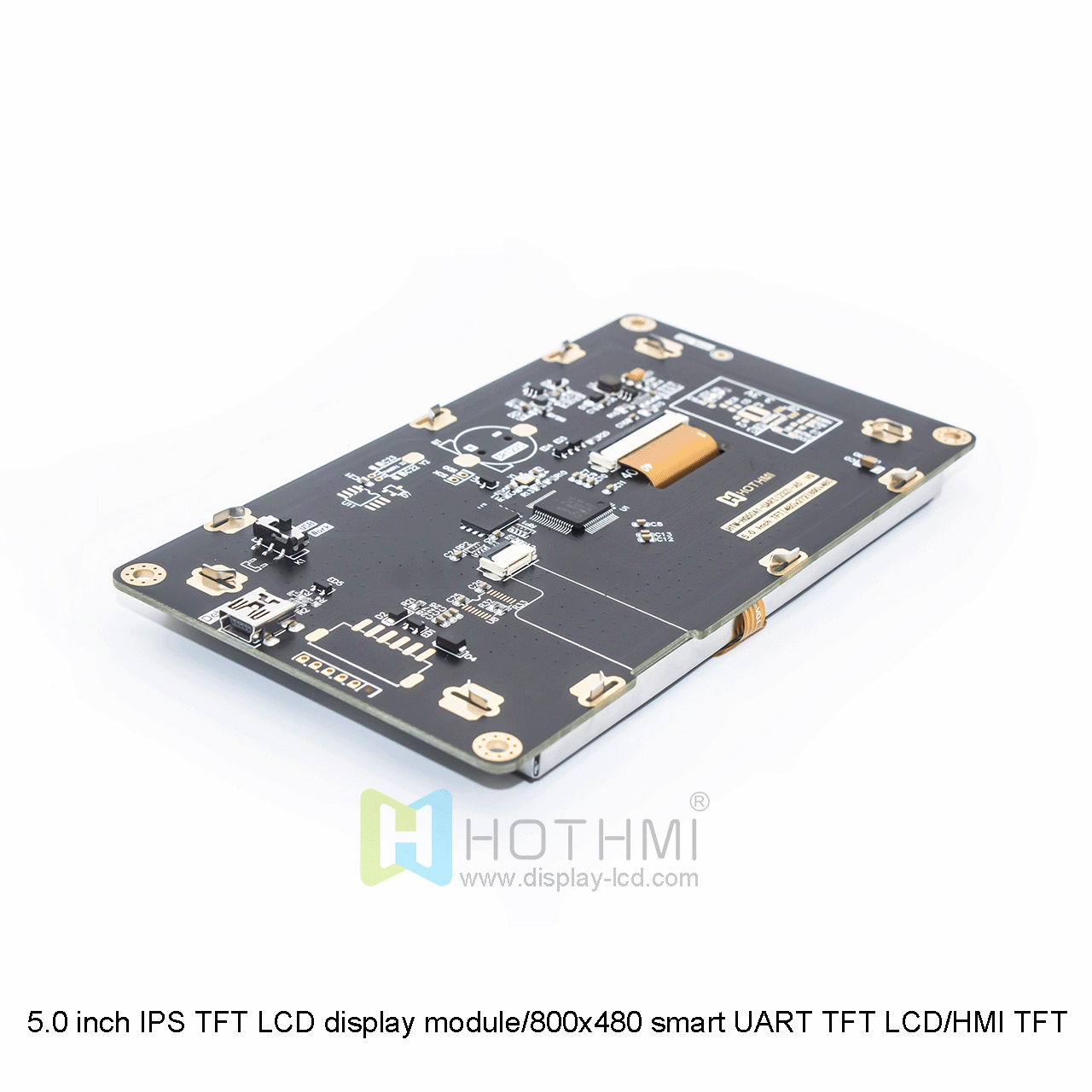

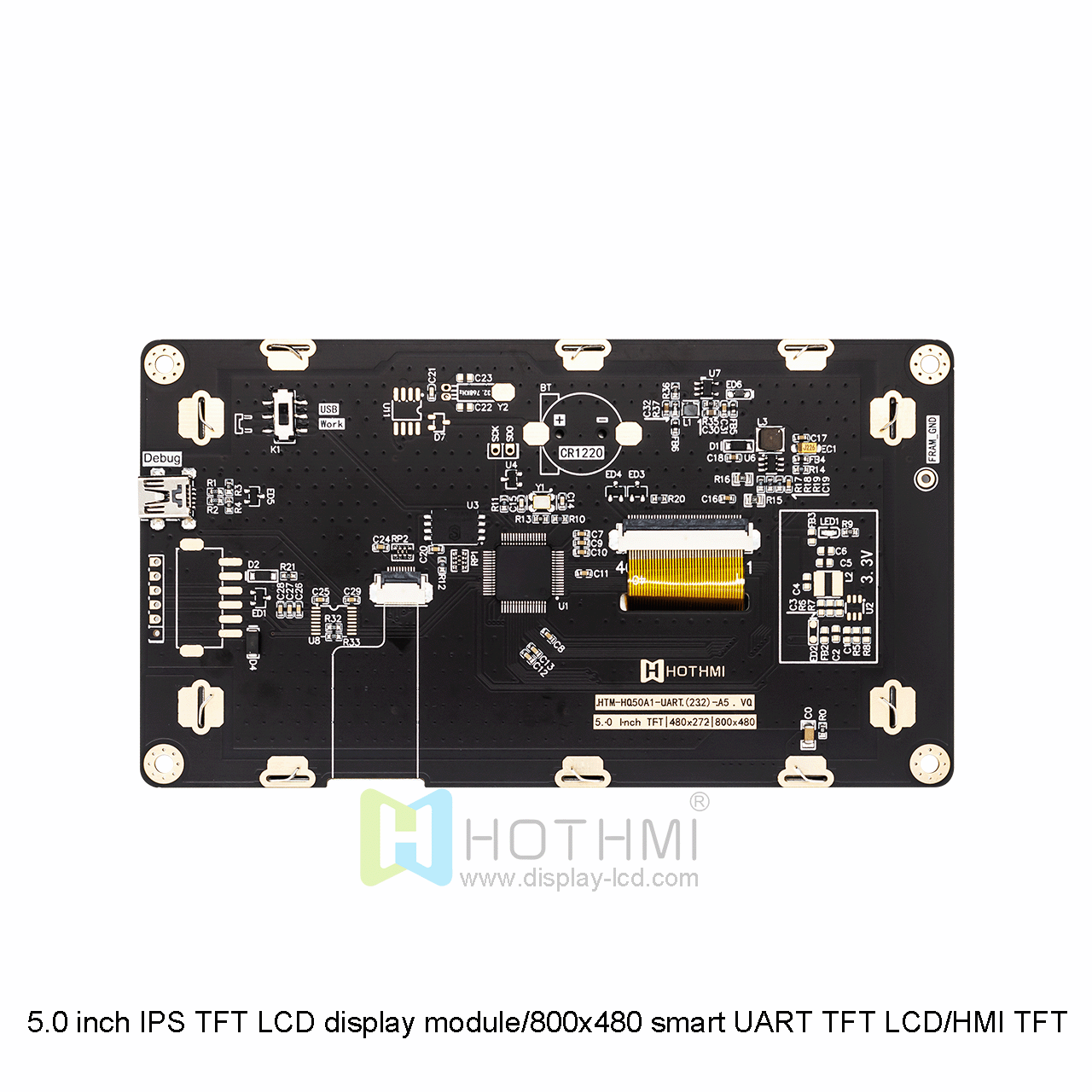

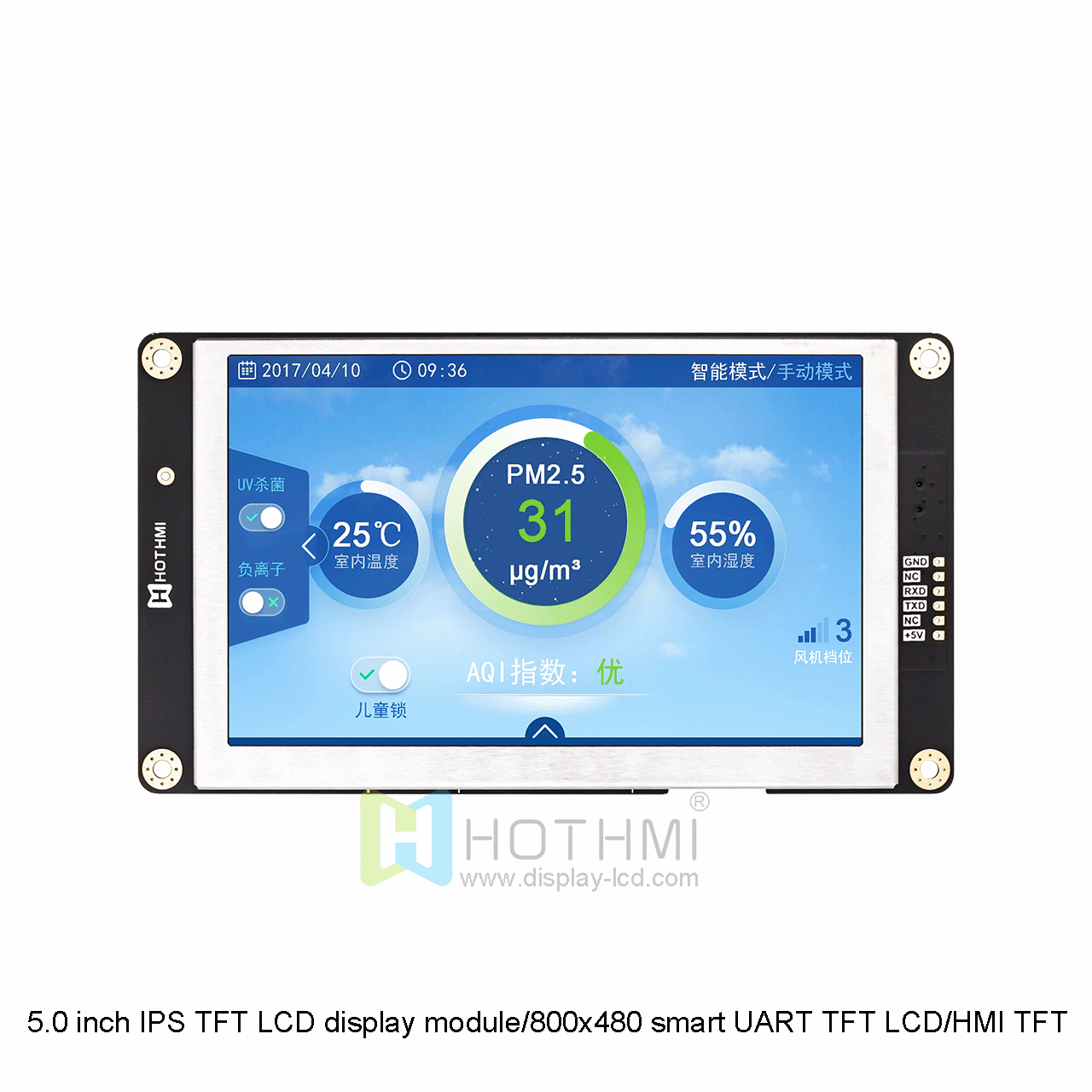

The HTM-H050A1-UART-A5 is a 5.0 inch IPS TFT display with a resolution of 800x480 pixels. It is a display with intelligent display function, UART interface, and human-machine information exchange function. In addition to the controller, our HMI display also integrates MCU function. The MCU receives commands sent by the main control board (client) through the UART interface, and then displays text, images or animations according to these predefined instructions. The MCU on the main control board (client) does not require complex programming or execution specifically for image display. You can easily create text, images or animations using our GUI design software - UI Editor. No programming skills are required.
This model is equipped with optional resistive or capacitive touch screen function, allowing users to interact with the display by touch. In addition, it is also equipped with an optional FPC Zif connector for easy connection to other devices. It is also compatible with 8051 boards (a popular microcontroller board often used in embedded systems) and arduino shields with examples and libraries.
Overall, the 5.0 inch IPS TFT LCD display module/800x480 Smart UART TFT LCD/HMI TFT is a versatile and high-performance display module suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic devices.
