Product type：TFT square
Show contents：720x720

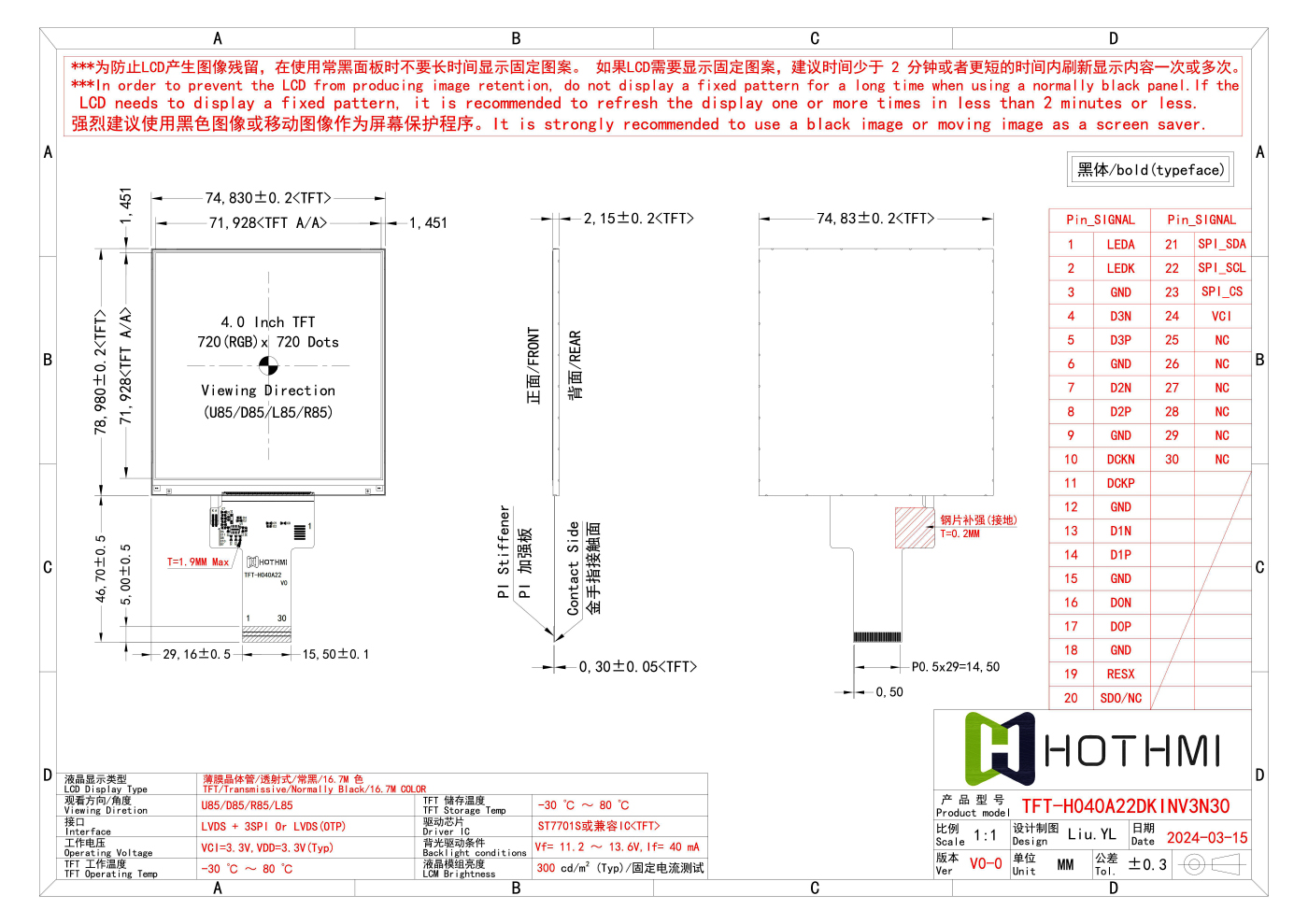

Outline size(mm) ：74,830x78.98x2.15
Size of View Window(mm)：4.0
Display size(mm) ：4.0
Effective size(mm)：71.928x71.928
Product application：Industrial control equipment
Visual angle：Full view
Backlight type or brightness：300cd/m2
Connection PIN Number：FPC-30PIN
Interface mode：LVDS
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：3.3V
Driver chip model：ST7701S
TFT-H040A22DKINV3N30-LVDS is a high-performance 4-inch IPS TFT display that delivers exceptional image quality with superior color reproduction and contrast ratio at any angle. It has a resolution of 720x720 pixels and offers a 24-bit true color Liquid Crystal Display. The display includes a better FPC design with EMI shielding on the cable and is RoHS compliant. Although this display does not come with a touchscreen, we offer capacitive and resistive options.
4 inch IPS LCD with EMI Shielding and 3M Brightness Enhancement Film
This 4-inch IPS display delivers a brightness of 300cd/m2, The transmissive display mode and LVDS interface make it a great option for various industries, such as medical, industrial, controls, aviation, and automotive.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections |
Touchscreen Add-On Components: Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design. |
Interface Customization: Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals. |
Cover Glass: Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris. |
