Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  3.5寸 IPS TFT 液晶顯示屏 RGB 640x480 ST7703/TFT-H035A17VGINV6N40

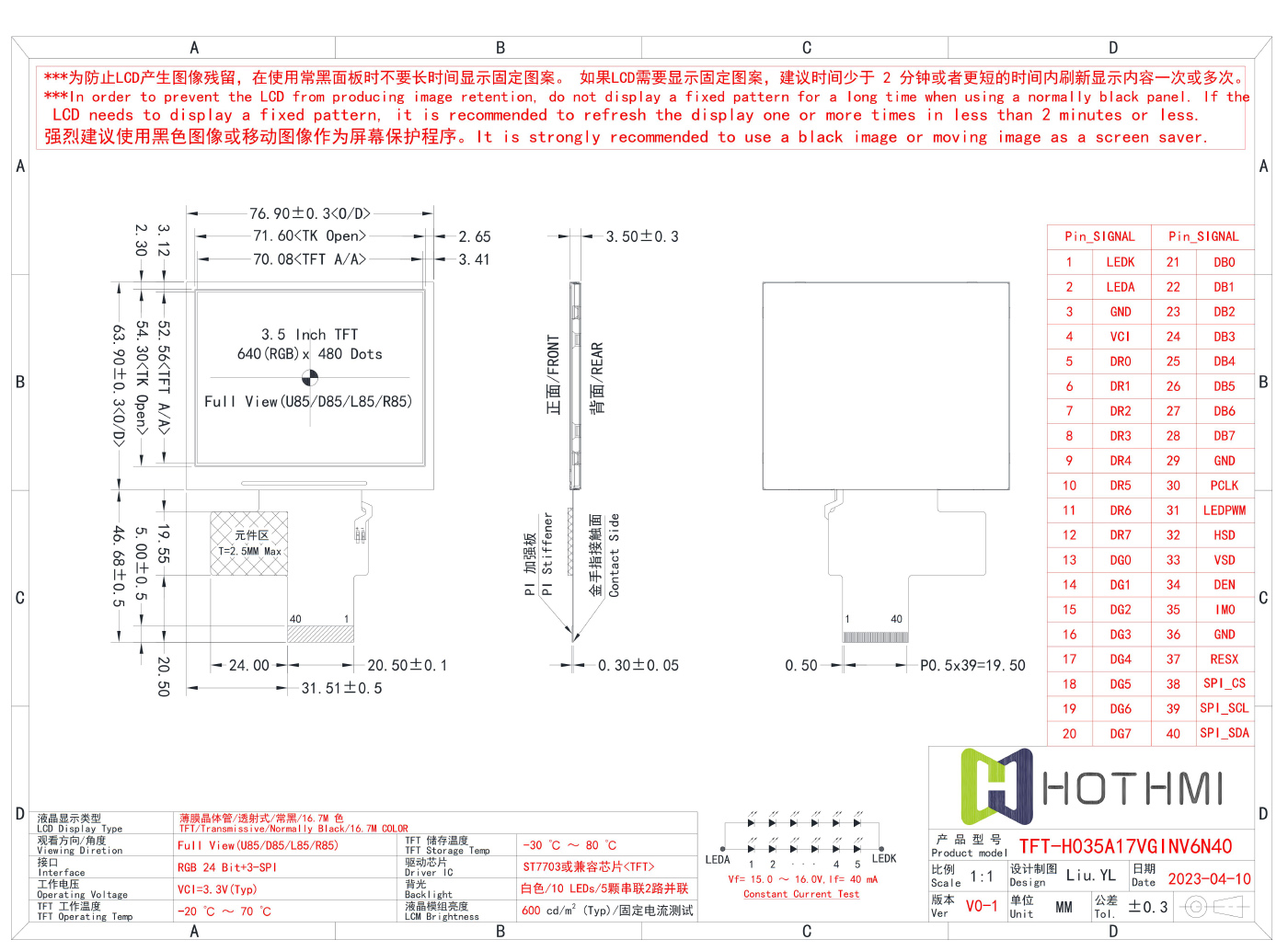

  • Model : 3.5 Inch IPS TFT LCD Display RGB 640x480 Px ST7703/TFT-H035A17VGINV6N40

    Product type:TFT LCD

    Show contents:640x480

    Outline size(mm) :76.9x63.9x3.5

    Size of View Window(mm):3.5

    Display size(mm) :3.5

    Effective size(mm):70.08x52.56

    Product application:Instrumentation

    Visual angle:Full view

    Backlight type or brightness:600cd/M2

    Connection PIN Number:FPC-40PIN

    Interface mode:RGB

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7703

Product description

TFT-H035A17VGINV6N40 | 3.5 Inch IPS TFT LCD Display | 640x480px High Resolution Screen | RGB Interface | Optional Capacitive/Resistive Touch Screen

This 3.5 Inch IPS TFT LCD Display Stands Out For Its High Resolution (640x480 Pixels) And Built-In EMI Shielding Technology. Featuring An RGB Interface And High-Brightness LED Backlight (Typical Brightness Up To 600 Cd/M2), This TFT Display Provides Stunning Clarity, Superior Color Reproduction, Excellent Image Consistency And High Contrast From All Viewing Angles Through Built-In IPS Technology .

Its Ultra-Bright Backlight Design Allows The TFT Display To Maintain Good Readability In Bright Environments, Even Under Direct Sunlight. This Transmissive LCD Display Not Only Features Superior Quality And 3.3V Power Supply, But Is Also Compatible With The Raspberry Pi/STM32/RK Series Via The Built-In ST7703 Driver IC To Provide Superior Performance And Reliability.

Its Monitor-Optimized Drivers Ensure Smooth Operation While Enabling Accurate Rendering Of Images And Graphics. The LCD And Touch Screen Use FFC (Flexible Flat Cable) Connection Method, Which Simplifies The Electrical Connection Process. All Our Monitors Are RoHS Compliant And Adhere To Strict Environmental And Safety Standards, Providing Users With A Reliable Product Choice.
