Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  An on-board & Special TFT Module  >  1.3寸 圓形 IPS MIPI TFT LCD 顯示屏 ST7796DW/TFT-H013A1HQIST3N16
  • Model : 1.3 Inch Round IPS MIPI TFT LCD Display ST7796DW/TFT-H013A1HQIST3N16

    Product type:TFT圓屏

    Show contents:320x320

    Outline size(mm) :36.12x39.16x1.5

    Size of View Window(mm):1.3

    Display size(mm) :1.3

    Effective size(mm):33.12x33.12

    Product application:Home appliances, industrial control, medical

    Visual angle:Full view

    Backlight type or brightness:350cd/m2

    Connection PIN Number:FPC-16PIN

    Interface mode:MIPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:2.8V

    Driver chip model:ST7796DW

Product description

TFT-H013A1HQIST3N16 | 1.3" TFT LCD | 320x320 Pixels | MIPI Interface | 16-Pin FFC ZIF Connection | Optional Capacitive/Resistive Touch Screen

The TFT-H013A1HQIST3N16 Is A Circular IPS TFT-LCD Screen With A Display Diameter Of 1.3 Inches And A Resolution Of 320x320 Pixels. This Circular TFT Display Consists Of An IPS TFT-LCD Panel With A Built-In ST7796DW Driver IC That Communicates Through The MIPI Interface.

TFT-H013A1HQIST3N16 Adopts IPS Panel With Higher Contrast, Pure Black Background When Display Or Pixel Is Off, Left: 80 / Right: 80 / Top: 80 / Bottom: 80 Degrees (Typical) Wider Viewing Angle, Contrast Ratio 1,000 :1 (Typ), Brightness 350 Nits (Typ), Anti-Glare Surface Panel. If Customers Need Capacitive Touch Screen, Please Choose Model TFT-H013A1HQIST2C16.

The LCM's Supply Voltage Is 1.8V To 2.8V, With A Typical Value Of 2.8V. The Operating Temperature Is -20℃ To +70℃, And The Storage Temperature Is -20℃ To +80℃. Display Modules Are Suitable For Compact Devices Such As Smart Meters, Wearables And Meter Applications. They Are Also Ideal For Home Automation Products, White Goods And Video Systems.

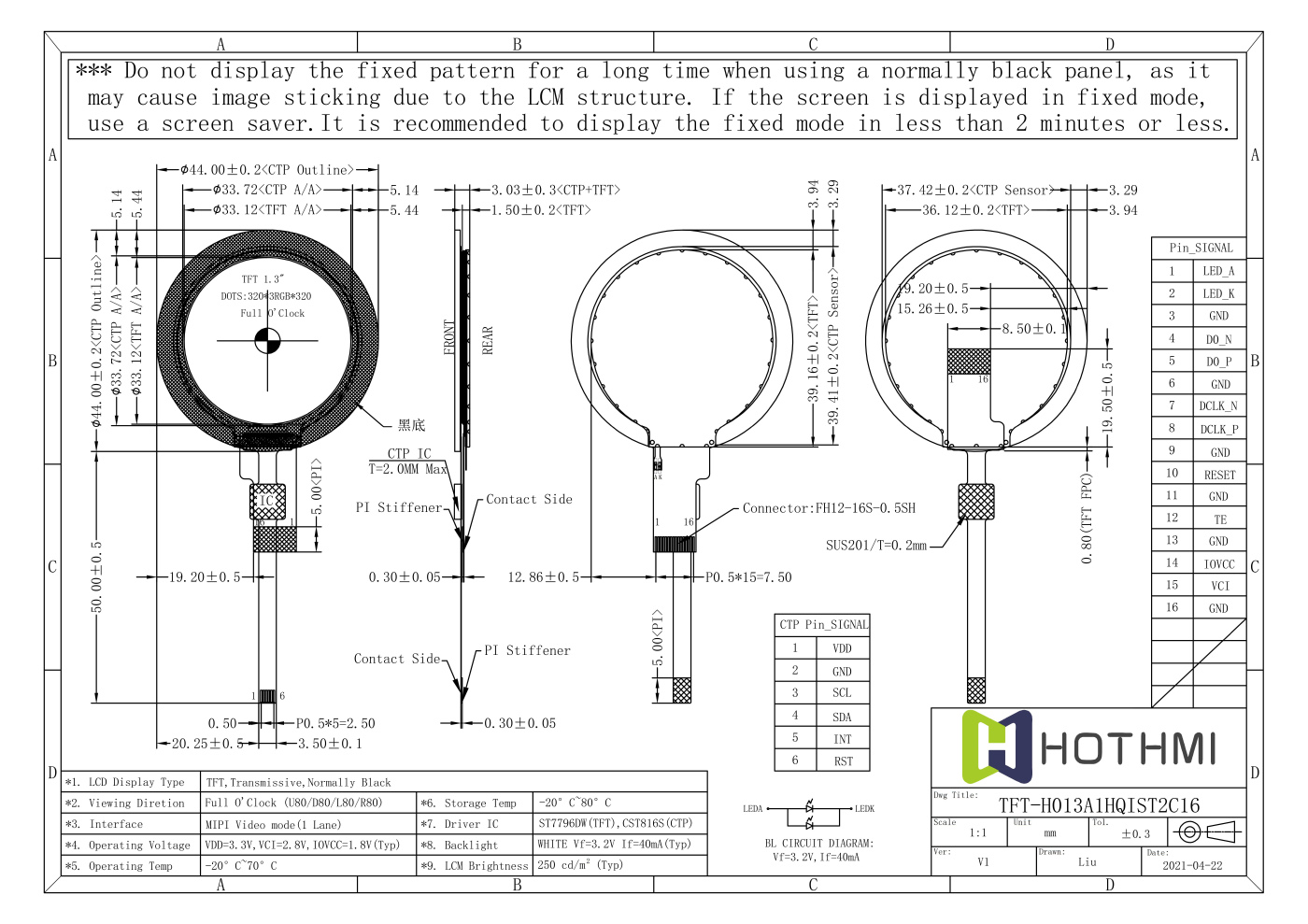

SPEC-H013A1HQIST2C16_V0 (1)正式_00.jpg
