Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules | HI | VGA | LVDS | MIPI | WIth Board  >  8寸1024x768 TFT彩色液晶模塊帶免驅動板帶電容觸摸屏/LCM-TFT080T61XGHDVNSDC

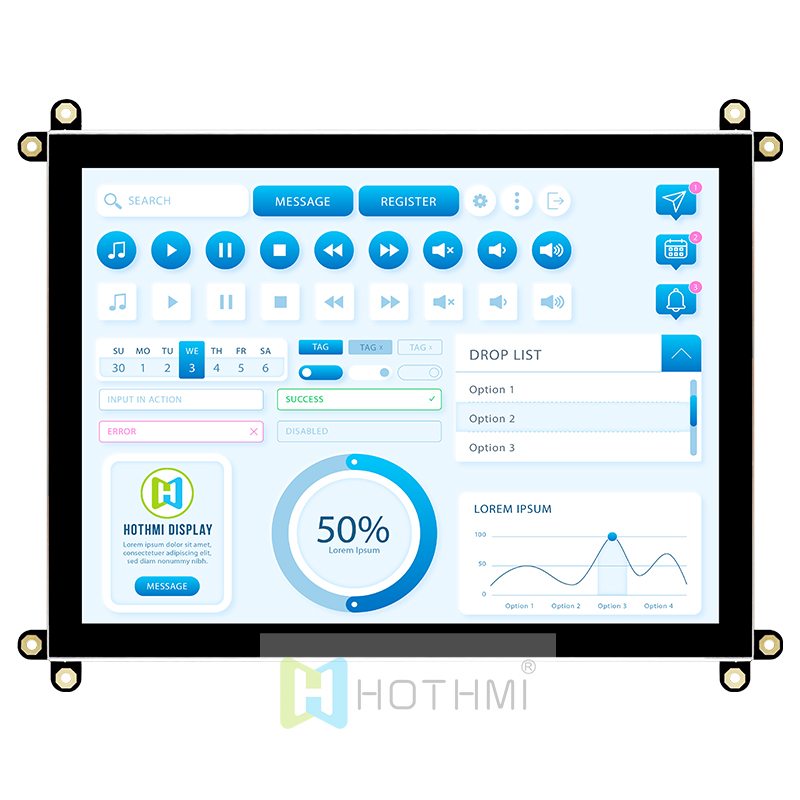

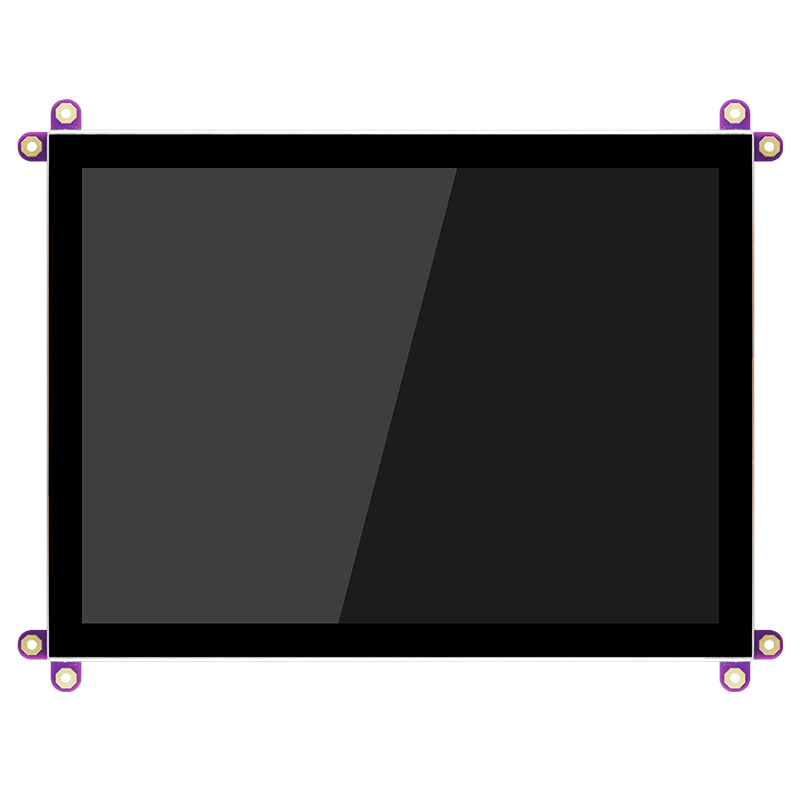

  • Model : 8.0 inch 1024x768 TFT color LCD module with driver board with capacitive touch screen/LCM-TFT080T61XGHDVNSDC

    Product type:HI driver-free module

    Show contents:1024x768

    Outline size(mm) :203x161x23.5

    Size of View Window(mm):8.0

    Display size(mm) :8.0

    Effective size(mm):162.05x121.54

    Product application:Vehicle, medical, industrial control

    Visual angle:12H

    Backlight type or brightness:250cd/m2

    Connection PIN Number:49pin

    Interface mode:HI/VGA

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:9V~12V

    Driver chip model:T.B.D

    PDF download
Product description

LCM-TFT080T61XGHDVUSDC | 8.0" LCD  Driver-Free Module | 1024x768 Pixels |  Interface | 49-Pin FFC ZIF Connection | With Driver Control Board | Optional Capacitive Or Resistive Touch Screen

LCM-TFT080T61XGHDVUSDC Is An 8-Inch Color LCD Module With  Driver Board, 1024x768 Resolution, Optional Resistive Touch Screen And Capacitive Touch Screen, And USB Interface Driver Board. In Order To Make It More Convenient For Customers To Use, We Redesigned The  Driver Board And Integrated It With The Display Screen, Which Can Save More Space For Customers. Four Positioning Holes Make Installation More Convenient For Customers. All Materials Comply With Environmental Protection Requirements And RoHS Standards. This Module Is Widely Used In Vehicles, Security, Various Instruments, Smart Devices, Etc. Applicable To Raspberry Pi, Etc. When Used On Raspberry Pi, It Is Compatible With Raspbian, Ubuntu, WIN10 IOT And Other Operating Systems, And Supports Microcontroller Touch. The Desktop Computer Is Compatible With Windows 7/8/8.1/10 And Other Systems. It Can Be Equipped With Capacitive Touch And Supports 10-Point Touch. All Materials Comply With Environmental Requirements RoHS Standards.
