Product type：TFT Module
Show contents：800x480

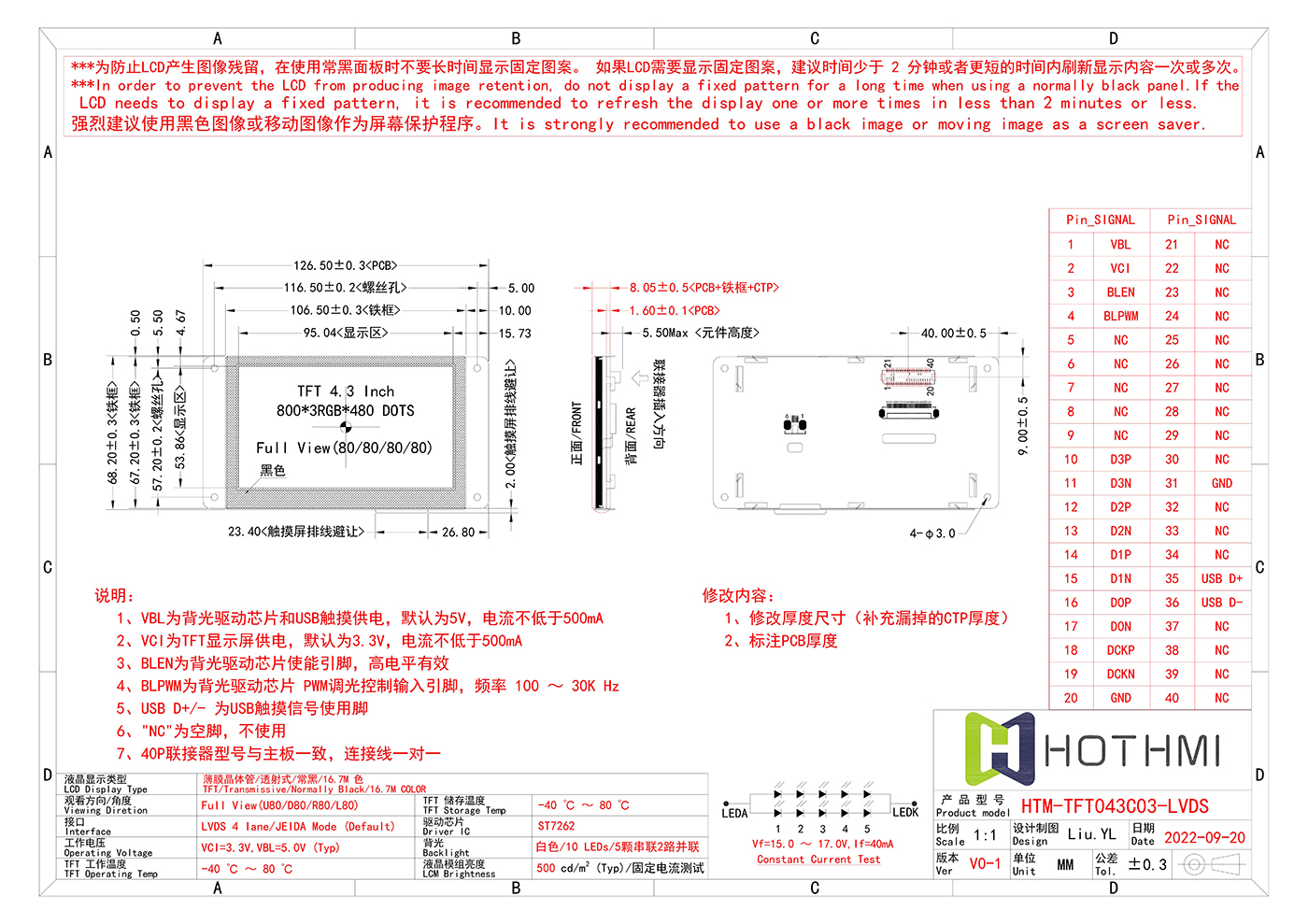

Outline size(mm) ：126.5x68.2x8.05
Size of View Window(mm)：4.3
Display size(mm) ：4.3
Effective size(mm)：95.04x53.86
Product application：Home appliances, industrial control, medical
Visual angle：Full view
Backlight type or brightness：500cd/m2
Connection PIN Number：40pin
Interface mode：LVDS
Special instructions：Anti-static ESD 8KV
Working temperature：-40~80℃
Power supply voltage：3.3V
Driver chip model：ST7262

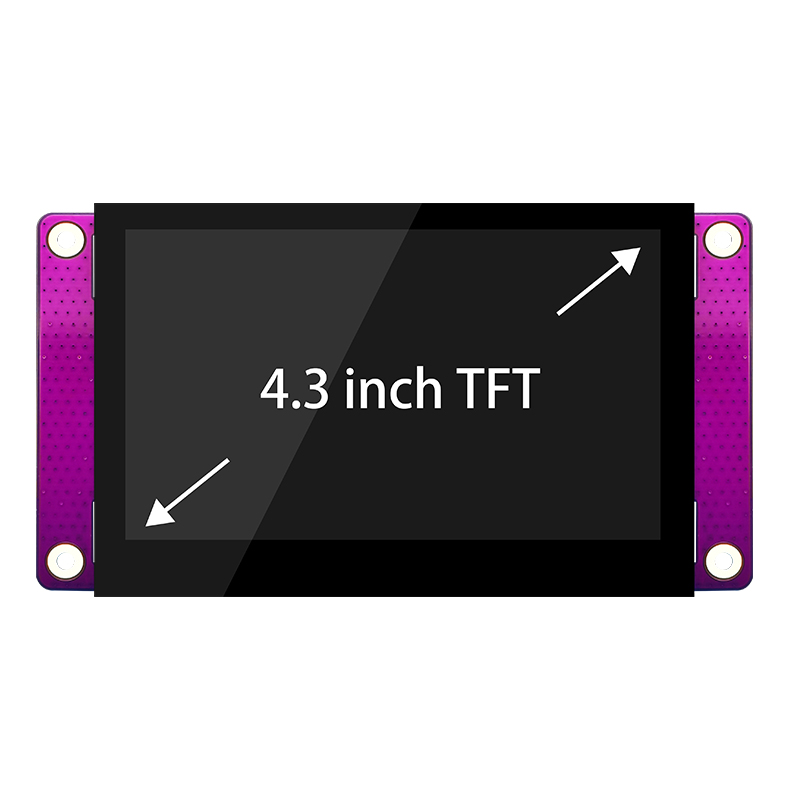

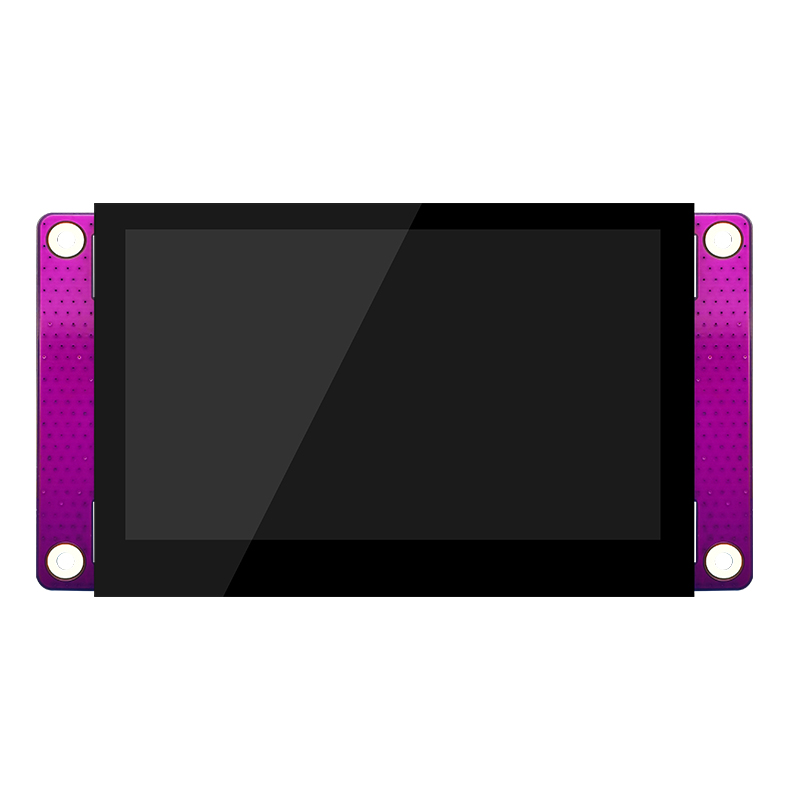

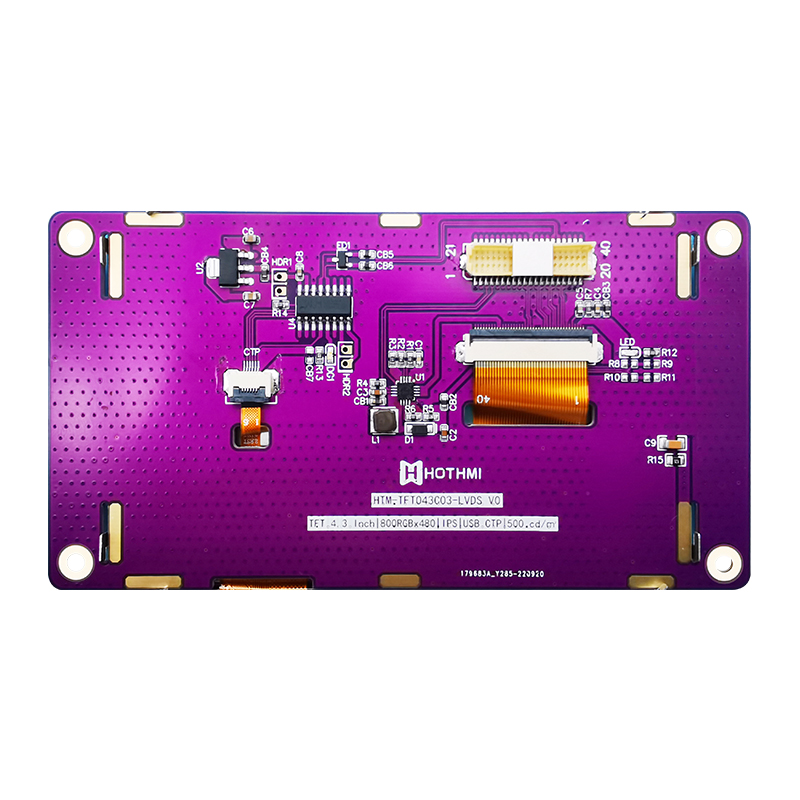

HTM-TFT043C03-LVDS | 4.3" LCD TFT Module | 800x480 Pixels | LVDS Interface | 40-Pin FFC ZIF Connection | With Driver Control Board | Optional Capacitive Or Resistive Touch Screen

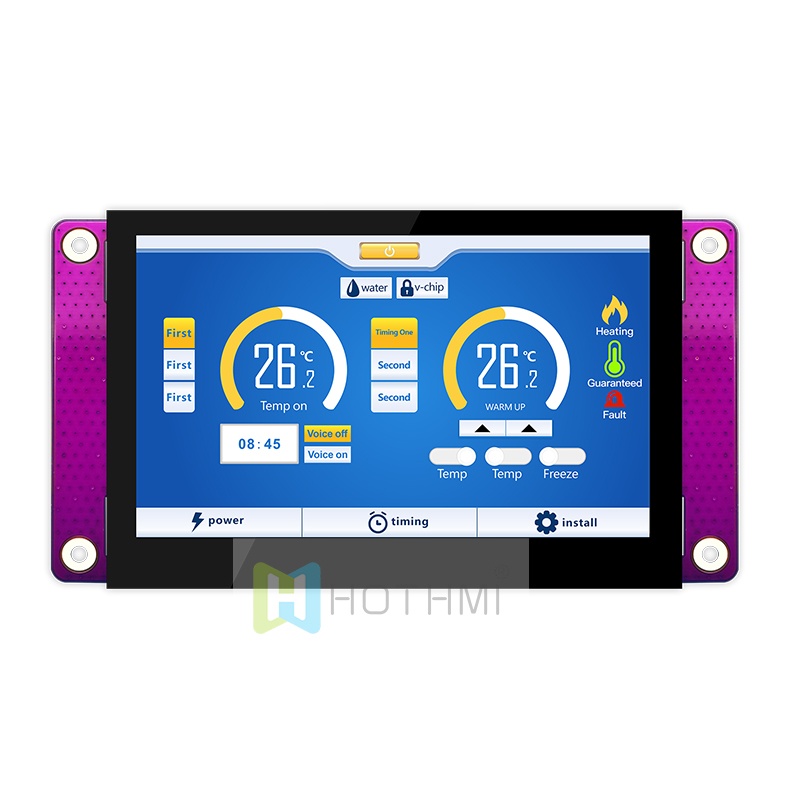

HTM-TFT043C03-LVDS Is A 4.3-Inch IPS Full-Viewing And High-Brightness Color LCD Module With 800x480 Resolution, Optional Resistive Touch Screen And Capacitive Touch Screen (Built-In Controller GT911), Ultra-Wide Temperature, And High Image Quality. Wide Viewing Angle, Supports LVDS Interface, 65K/262K/16.7M True Color, FFC Or Pin Header Connection, 3.3V Or 5V Optional Voltage, Supports Horizontal Or Vertical Screen Display. All Materials Comply With Environmental Protection Requirements And RoHS Standards. This Module Is Widely Used In Various Instruments, Smart Devices, Etc., And Is Suitable For A Variety Of Microcontroller Development Platforms Such As 8051, PIC, AVR, ARDUINO, ARM And Raspberry Pi.
