Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  An on-board & Special TFT Module  >  1.44寸方形彩屏 TFT LCD 顯示屏 SPI 128x128 像素 TFT-H014A05QQTST3N10

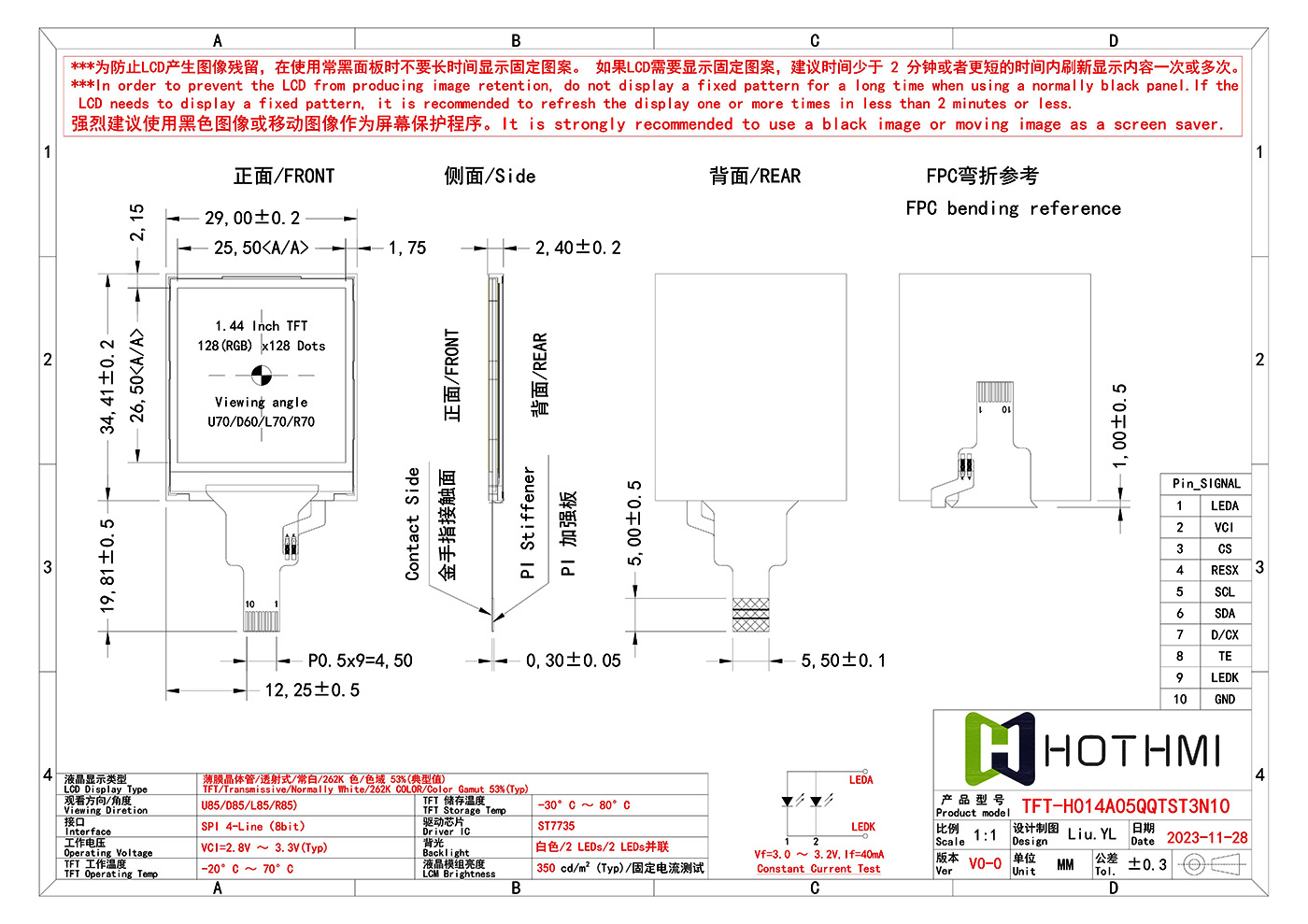

  • Model : 1.44-inch square color TFT LCD Display SPI 128x128 pixels TFT-H014A05QQTST3N10

    Product type:TFT Square

    Show contents:128x128

    Outline size(mm) :29x34.41

    Size of View Window(mm):1.44

    Display size(mm) :1.44

    Effective size(mm):25.5x26.5

    Product application:Instrumentation

    Visual angle:Full view

    Backlight type or brightness:350cd/m2

    Connection PIN Number:10pin

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7735

    PDF download
Product description

TFT-H014A05QQTST3N10 | 1.44" LCD module | 128x128 pixels | Serial SPI interface | 12-pin FFC ZIF connection


This 1.44-inch TFT display is suitable for a variety of projects, from embedded systems to industrial equipment and handheld devices. It offers clear 128x128 pixel resolution and bright LED backlight brightness of 300 cd/m2, ensuring high-quality color image display.

In terms of connection, it uses a 4-wire serial SPI interface and is connected through pin headers, which improves communication efficiency with devices such as Arduino. This interface is not only flexible, but also supports fast data transmission, providing the possibility for real-time updates, smooth animations and dynamic visual effects.

Although this display does not have touchscreen capabilities, its compact size, low power consumption (using a 3.3-volt power source), and Multi-Domain Vertical Alignment (MVA) technology allow it to provide stunning clarity at viewing angles of up to 70°. This makes it ideal for projects that don't require touch functionality but require visual output in portrait mode.

In addition, the display is RoHS compliant and adheres to strict environmental and safety standards, reflecting the emphasis on environmental protection and user safety. Overall, this display combines performance, flexibility, and reliability for a variety of modern electronic devices and projects.
