Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  3.5寸IPS全視角 640x480分辨率 寬溫 TFT顯示面板 ST7703 掌機顯示屏 TFT-H035B20VGIST4G30
  • Model : 3.5 Inch IPS 640x480 Wide Temperature TFT Display Panel ST7703 For Handheld TFT-H035B20VGIST4G30

    Product type:TFT LCD

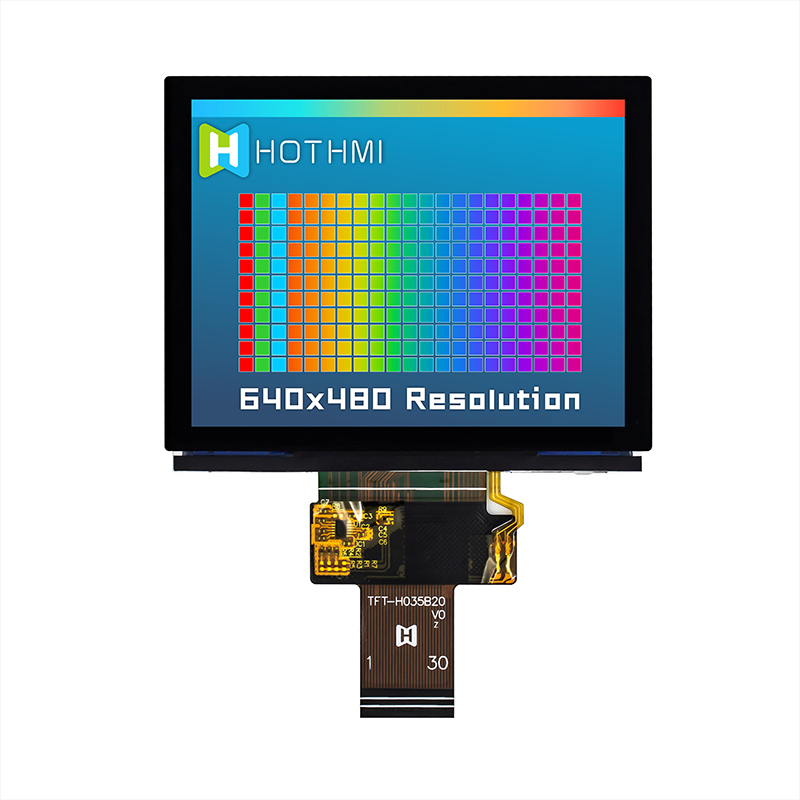

    Show contents:640x480

    Outline size(mm) :79.5x61.2

    Size of View Window(mm):3.5

    Display size(mm) :3.5

    Effective size(mm):70.08x52.56

    Product application:Industrial Control Equipment

    Visual angle:Full view

    Backlight type or brightness:400cd/m2

    Connection PIN Number:30pin

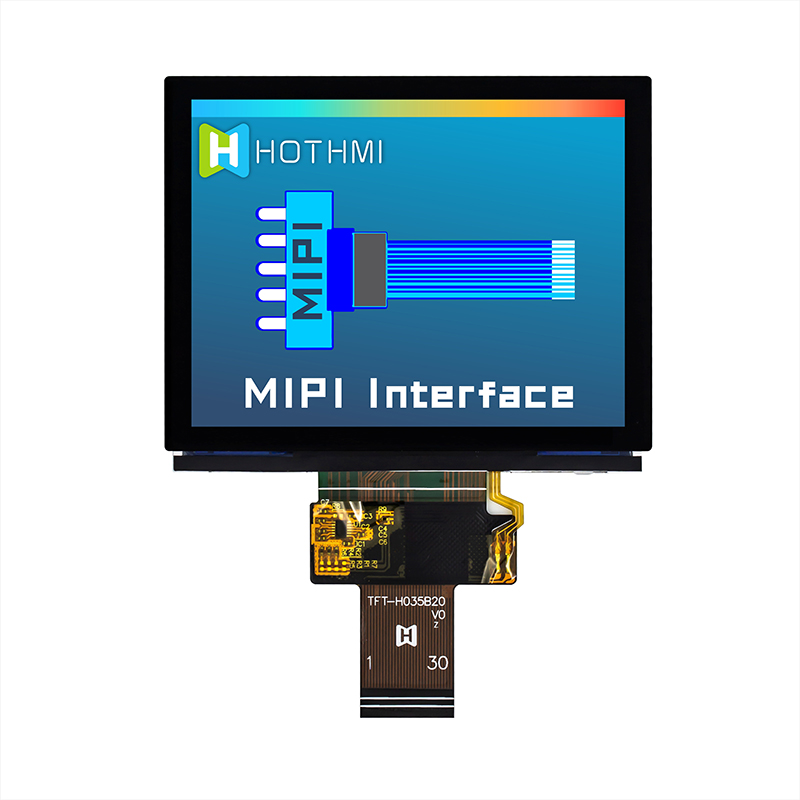

    Interface mode:MIPI

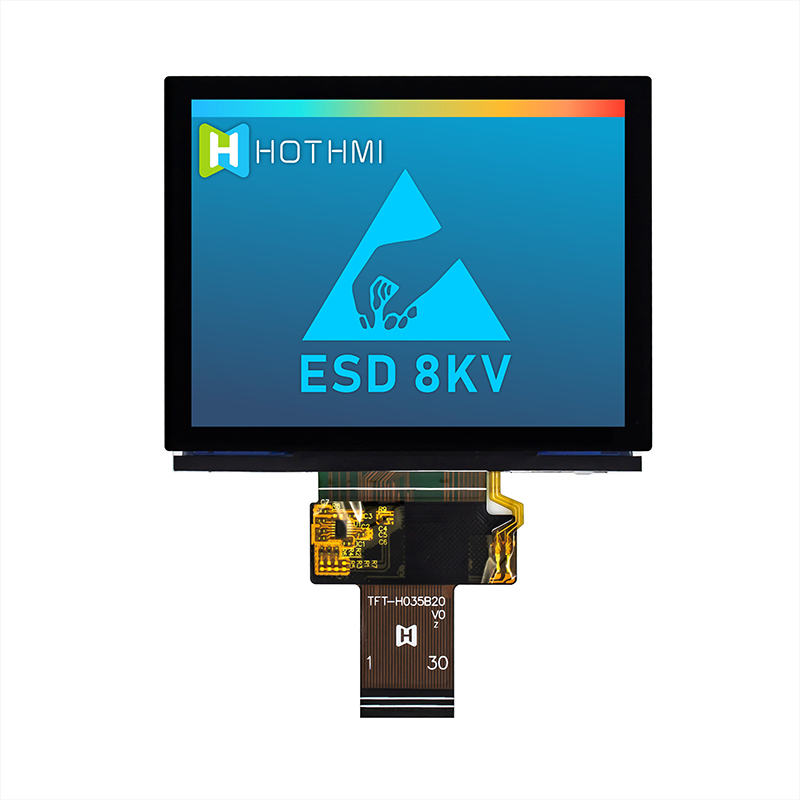

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7703

    PDF download
Product description

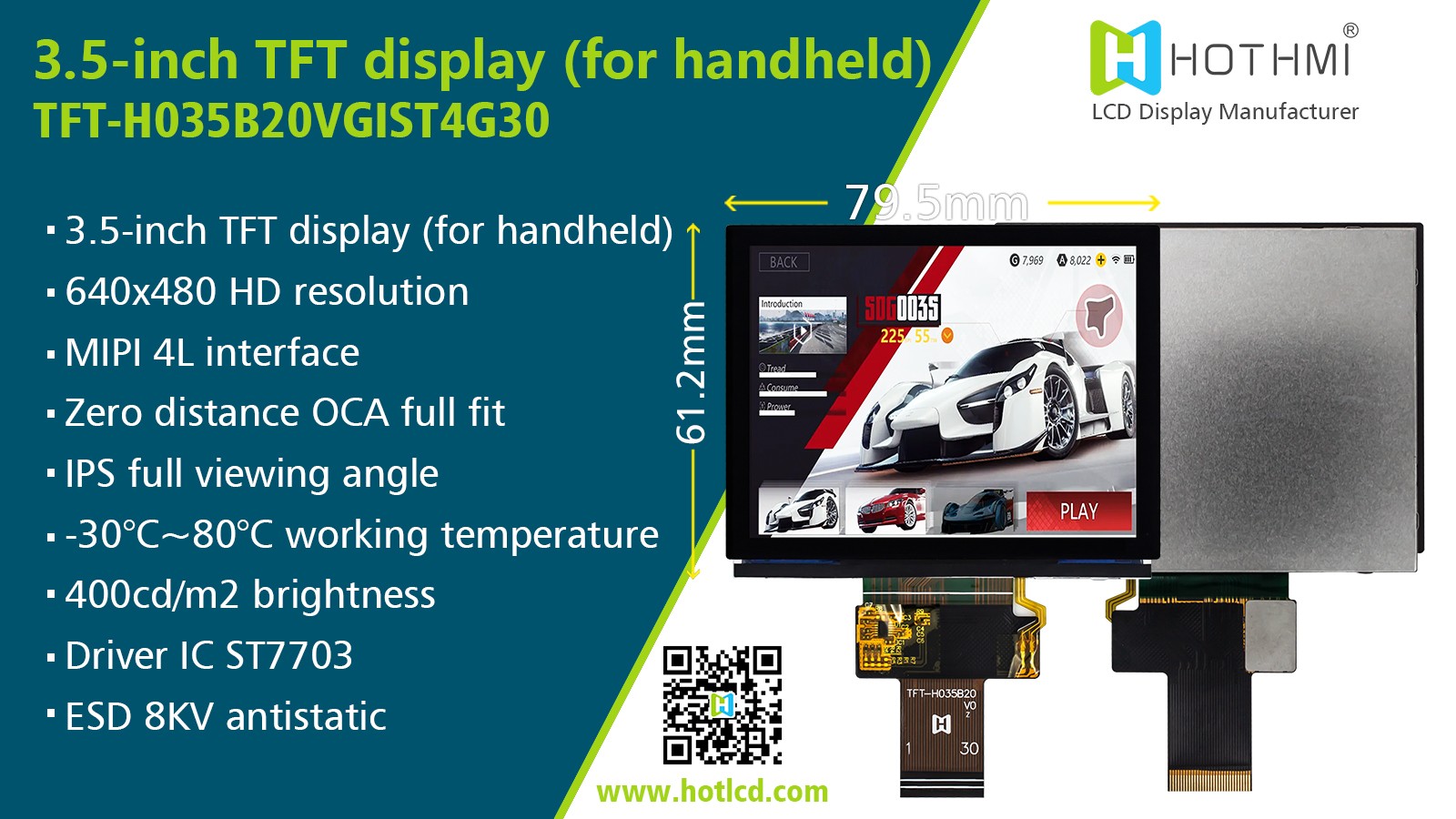

3.5 Inch IPS 640x480 Wide Temperature TFT Display Panel ST7703 For Handheld TFT-H035B20VGIST4G30


TFT-H035B20VGIST4G30 | 3.5" IPS TFT LCD Display | TFT LCD Display Manufacturer | 640x480 resolution | -30℃~80℃ | For Handheld | Interface MIPI 4L | Wide Temperature | IC ST7703



Introducing our cutting-edge TFT-H035B20VGIST4G30, a high-performance 3.5-inch IPS TFT LCD display panel designed specifically for handheld devices. Boasting a remarkable 640x480 resolution, this display ensures vivid and crystal-clear visuals, enhancing the user experience to a whole new level.

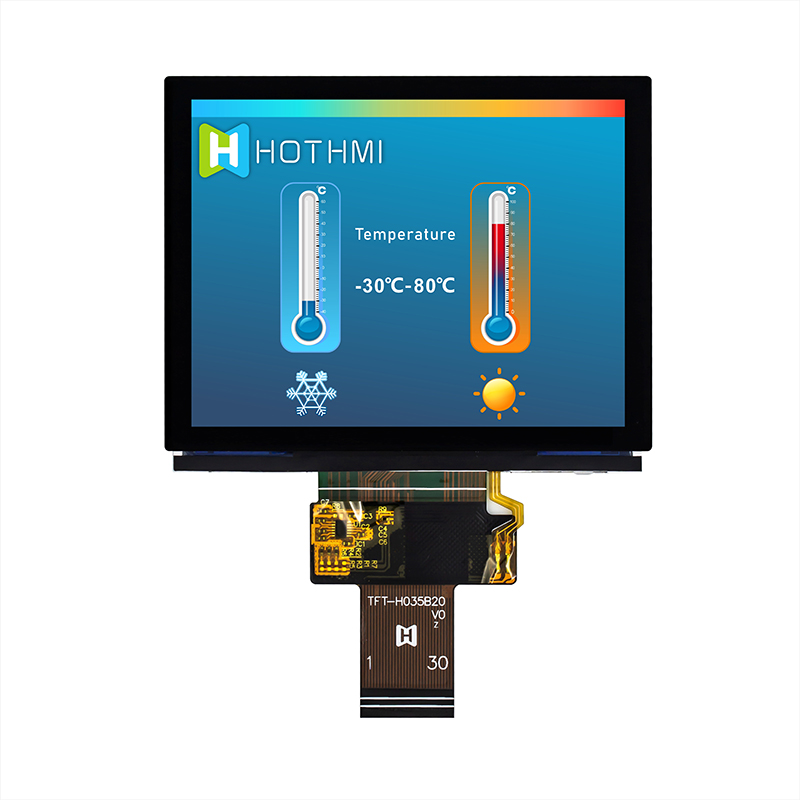

One of the standout features of this display is its exceptional wide temperature range capability, functioning flawlessly even in extreme conditions, from a freezing -30℃ to a scorching 80℃. This makes it ideal for various handheld applications, where reliable performance is crucial, regardless of the environmental conditions.

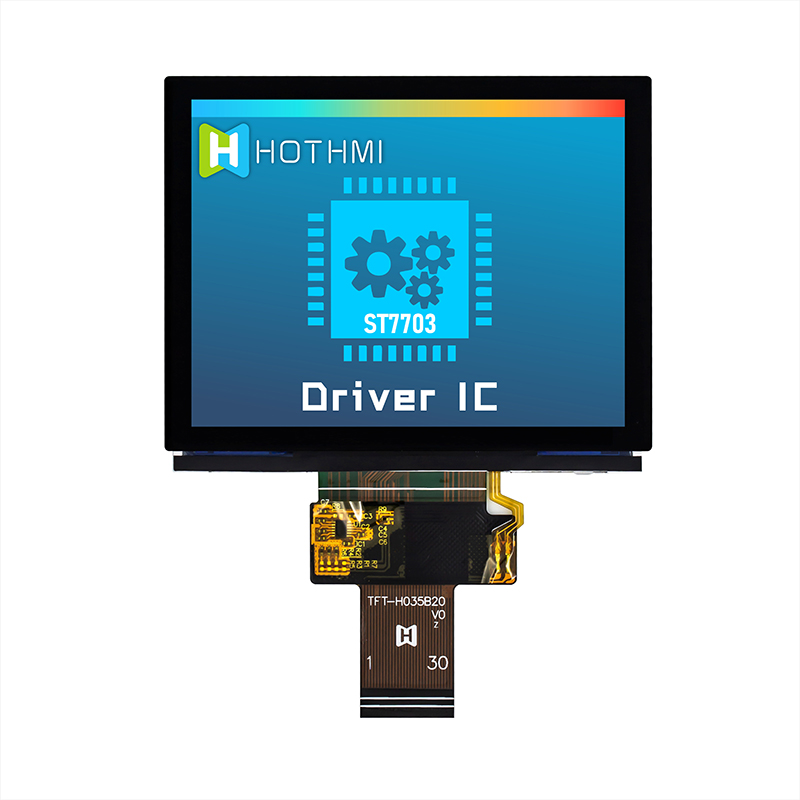

The TFT-H035B20VGIST4G30 comes equipped with a cutting-edge IC ST7703, ensuring smooth and efficient operations, contributing to seamless user interaction with the device. Its MIPI 4L interface ensures high-speed data transfer and compatibility with modern handheld systems.
Manufactured with precision and attention to detail, this TFT LCD display offers exceptional durability and reliability, making it an ideal choice for handheld devices that require robust performance in diverse environments.
Experience the future of handheld displays with our TFT-H035B20VGIST4G30. It brings together advanced technology, wide temperature resilience, and high-quality visuals, setting new standards for excellence in the industry. Stay ahead of the curve and choose this remarkable display panel for your handheld devices.
