Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules |MCU8/16|SPI 3/4L|WIth Board  >  7.84寸條形 電容式觸摸 IPS TFT液晶顯示屏 1280x400 MCU 適用于車載顯示器 HTM-TFT078A01-MCU
  • Model : 7.84 Inch Bar Style Capacitive Touch IPS TFT LCD Display 1280x400 MCU For Car Monitor HTM-TFT078A01-MCU-CTP

    Product type:TFT Module

    Show contents:1280x400

    Outline size(mm) :221.8×71.8×9

    Size of View Window(mm):7.84

    Display size(mm) :7.84

    Effective size(mm):190.88x60.2

    Product application:Vehicle, medical, industrial control

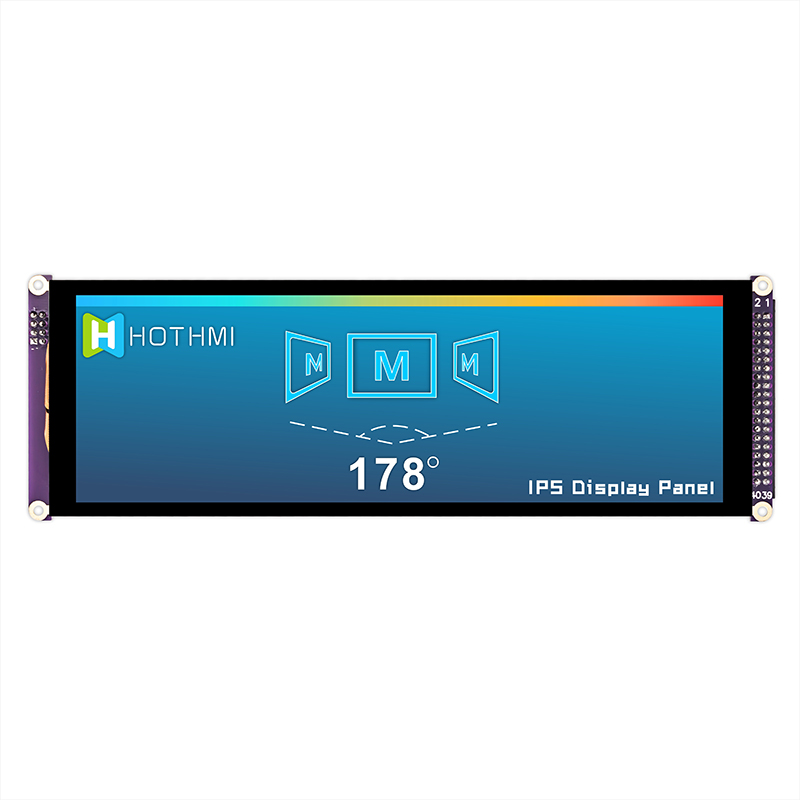

    Visual angle:Full view

    Backlight type or brightness:450cd/m2

    Connection PIN Number:48pin

    Interface mode:MCU

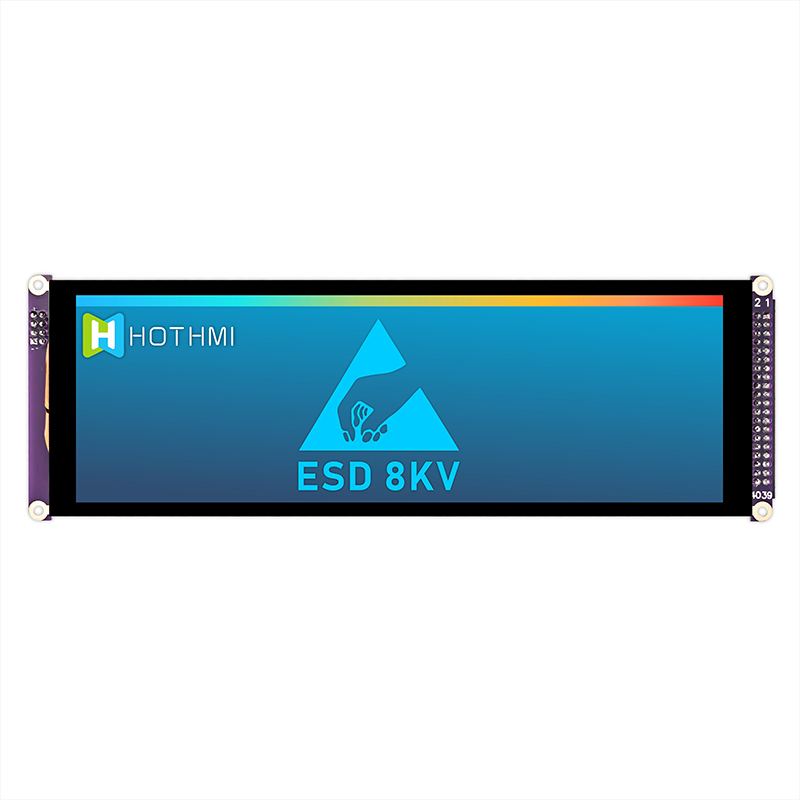

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

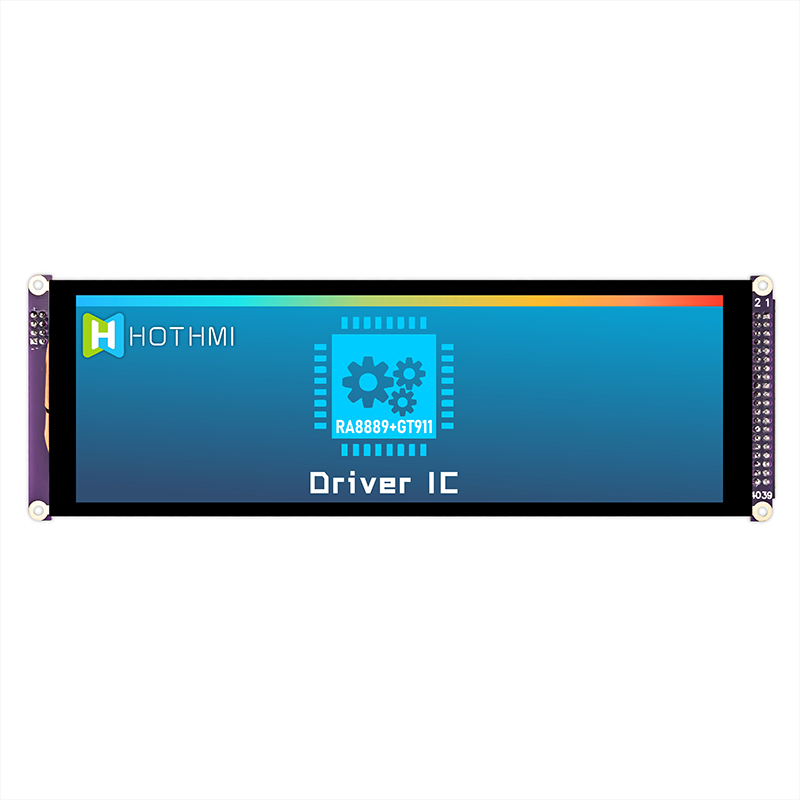

    Driver chip model:RA8889

    PDF download
Product description

7.84 Inch Bar Style Capacitive Touch IPS TFT LCD Display 1280x400 MCU For Car Monitor HTM-TFT078A01-MCU-CTP

Here is the edited list of specifications for the HTM-TFT078A01-MCU:

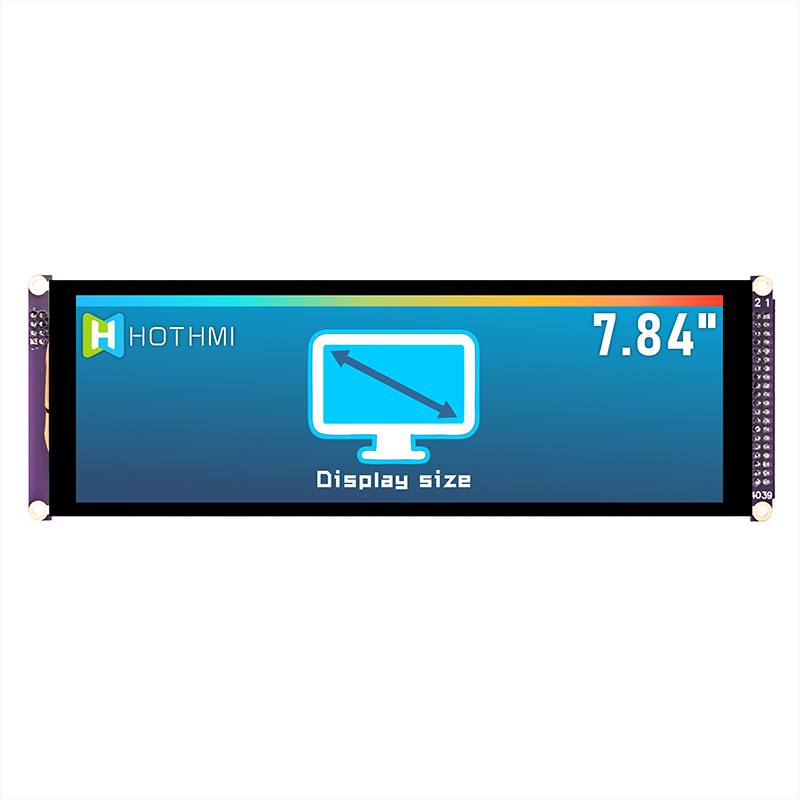

  • Display Size: 7.84-inch Bar Style Capacitive Touch IPS TFT LCD Display

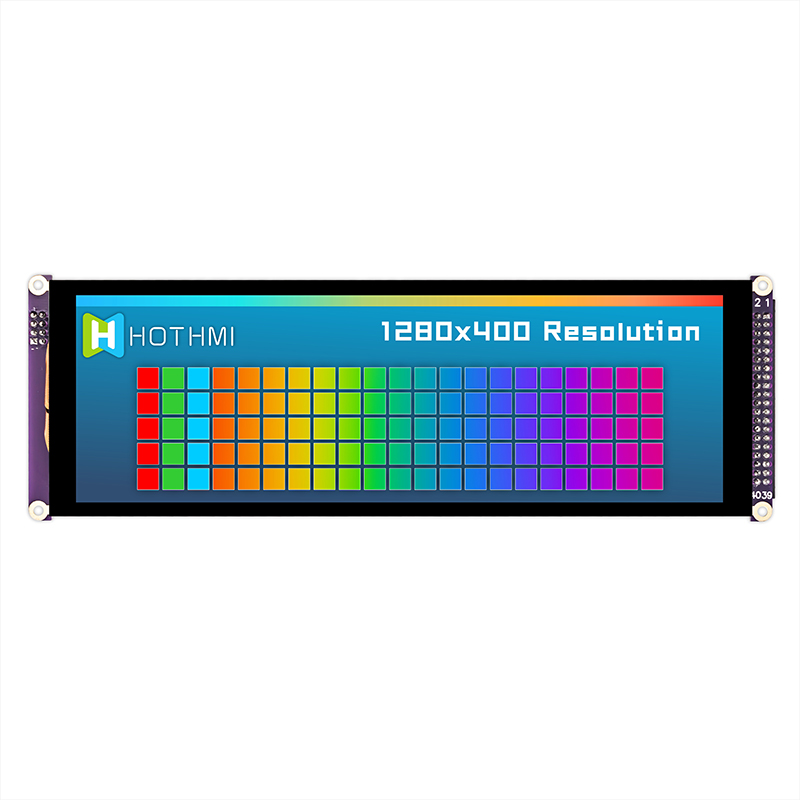

  • Resolution: 1280x400 pixels

  • LCD Controller Board: Included

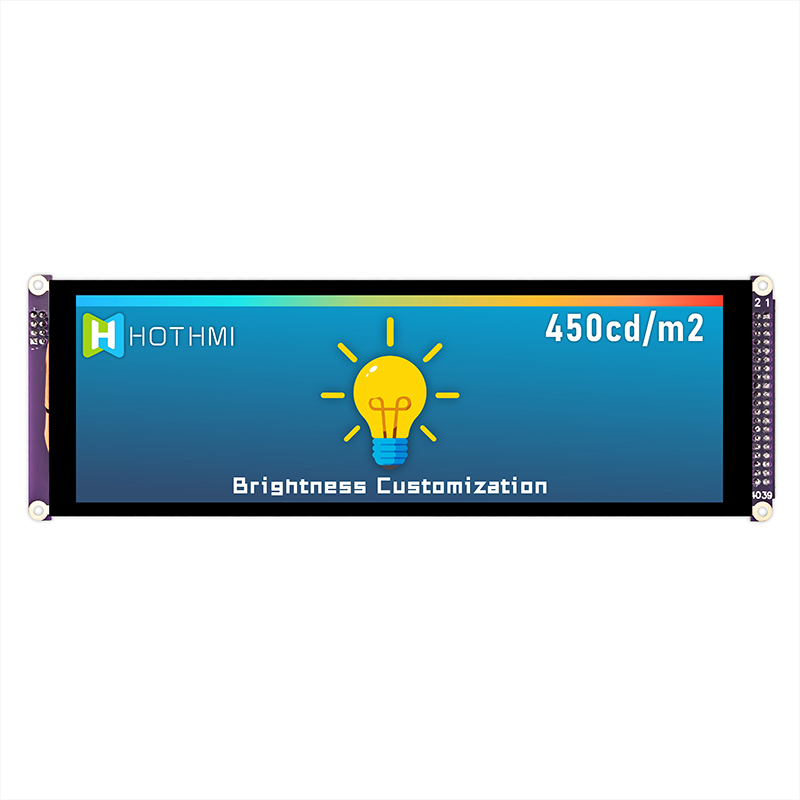

  • Luminance: 450cd/m2

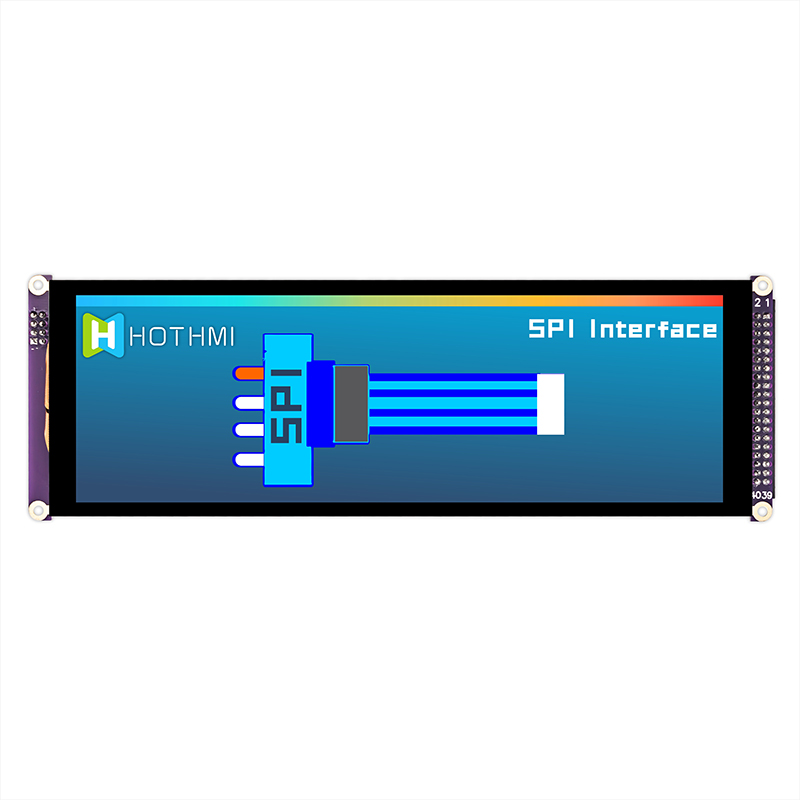

  • Interface: MCU+SPI

  • TFT Module

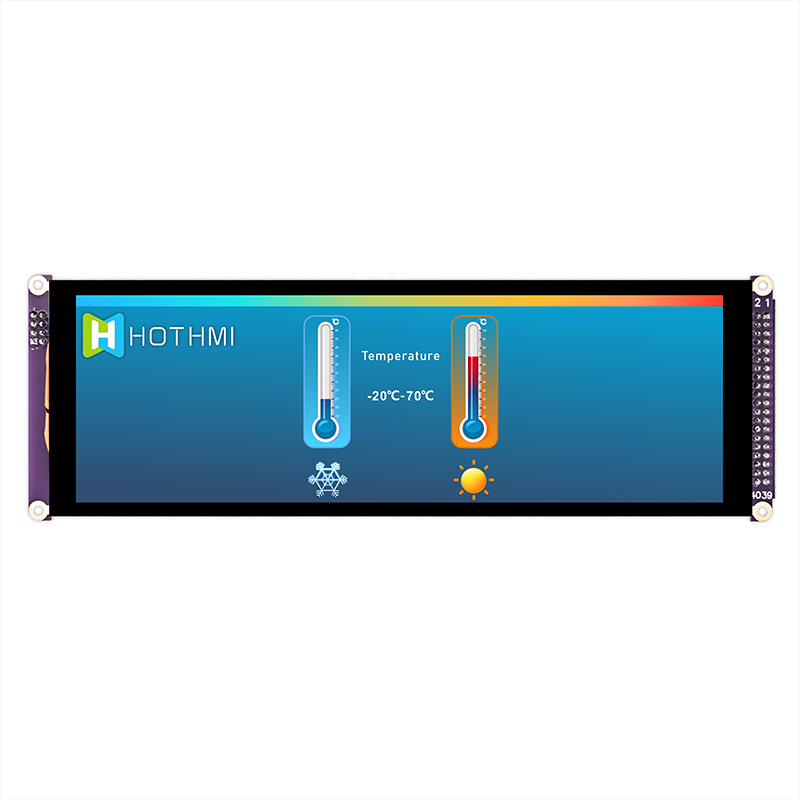

  • Operating Temperature: -20°C to 70°C

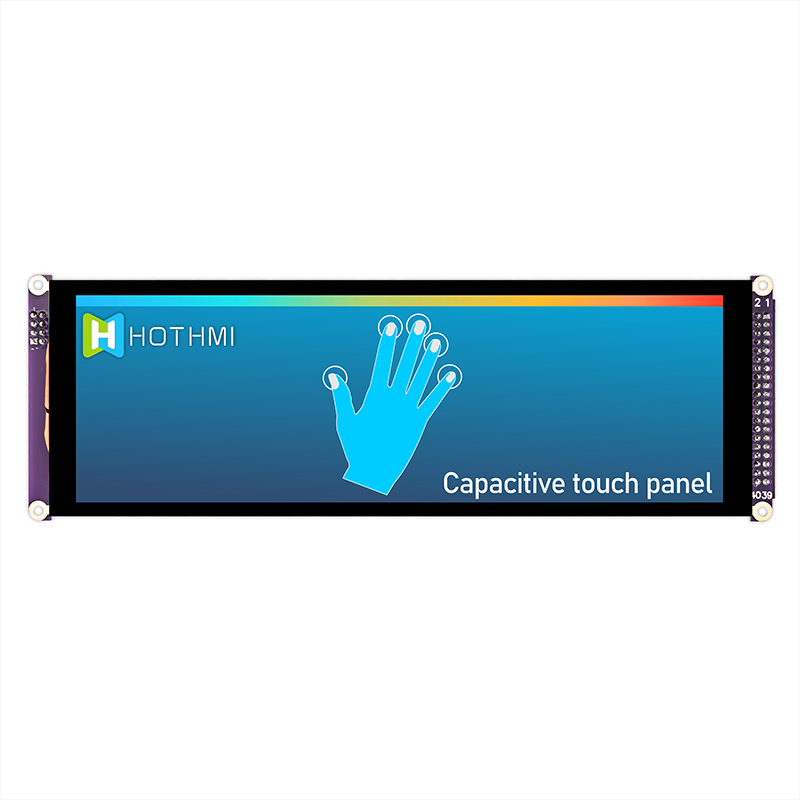

  • Touch Screen: Capacitive Touch Screen

  • Built-in Graphics Processor

  • 8051 Single Chipset

  • STM32 Series Support

The HTM-TFT078A01-MCU is a high-quality 7.84-inch Bar Style Capacitive Touch IPS TFT LCD Display designed for car monitors. It features a resolution of 1280x400 pixels and comes with an included LCD controller board. With a luminance of 450cd/m2, it offers bright and clear visuals. The display interface supports MCU+SPI, and it comes as a TFT module.

Operating reliably in temperatures ranging from -20°C to 70°C, it is suitable for various environmental conditions. The display incorporates a capacitive touch screen for intuitive touch interactions. It also features a built-in graphics processor for enhanced image processing capabilities.

Powered by a 8051 single chipset, the HTM-TFT078A01-MCU provides compatibility and flexibility with support for STM32 series chipsets. Overall, it offers excellent visual performance and touch functionality, making it an ideal choice for car monitors.

封面海報電容 英文.jpg
