Product type：TFT LCD
Show contents：480x272
Outline size(mm) ：105.46x67.11x4.30
Size of View Window(mm)：4.3

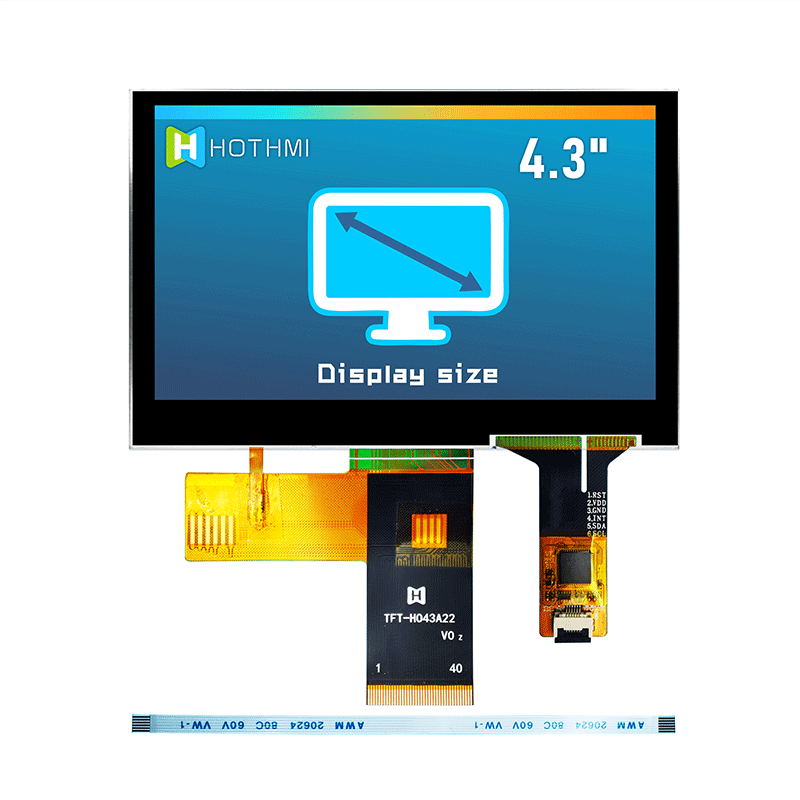

Display size(mm) ：4.3
Effective size(mm)：95.04x53.86
Product application：Vehicle, medical, industrial control
Visual angle：Full view

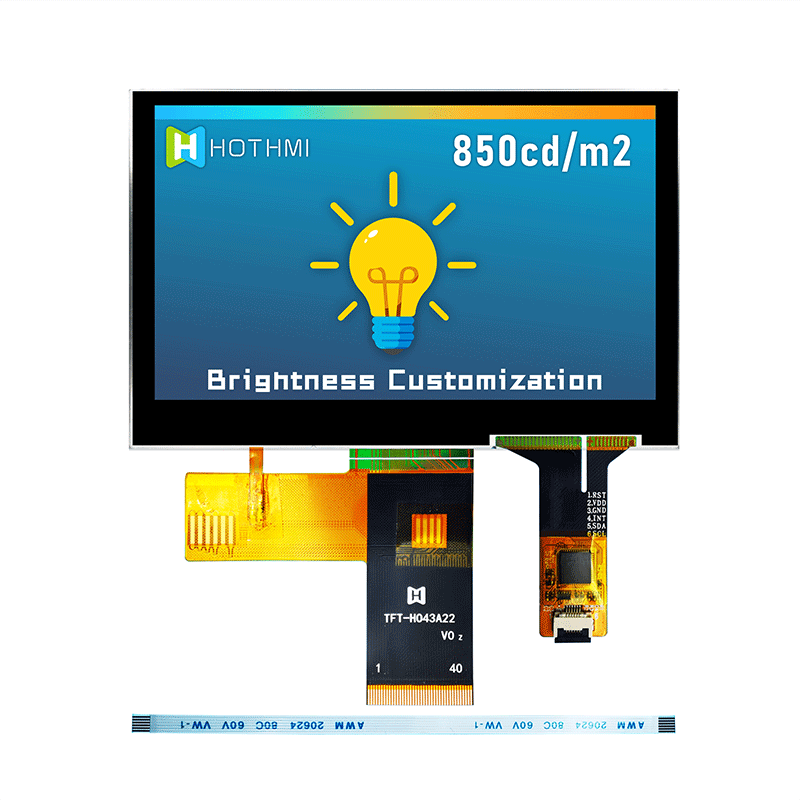

Backlight type or brightness：850cd/m2
Connection PIN Number：46pin
Interface mode：SPI
Special instructions：Anti-static ESD 8KV

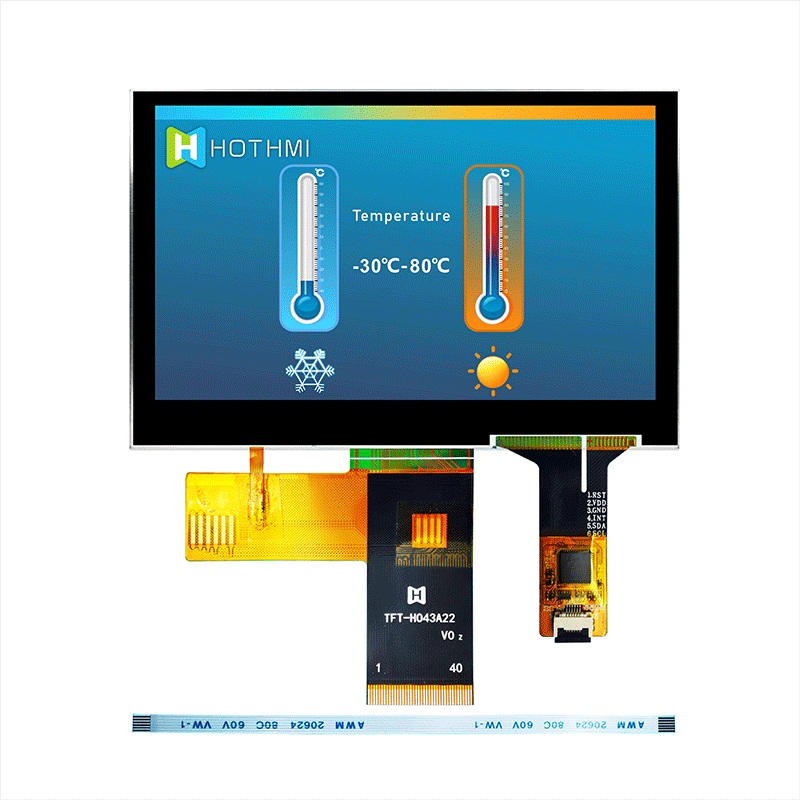

Working temperature：-30~80℃
Power supply voltage：3.3V

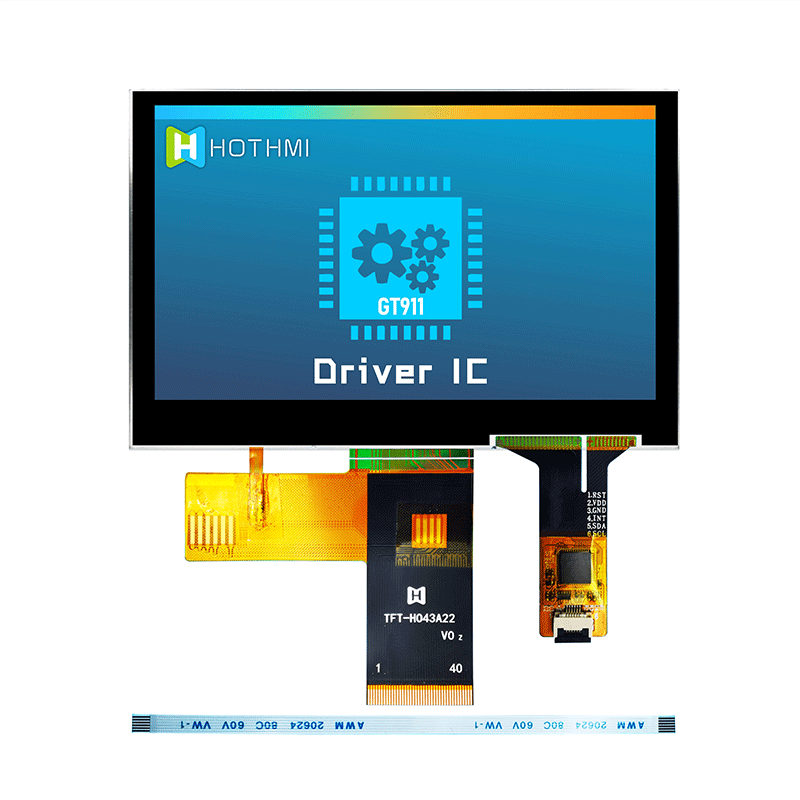

Driver chip model：GT911

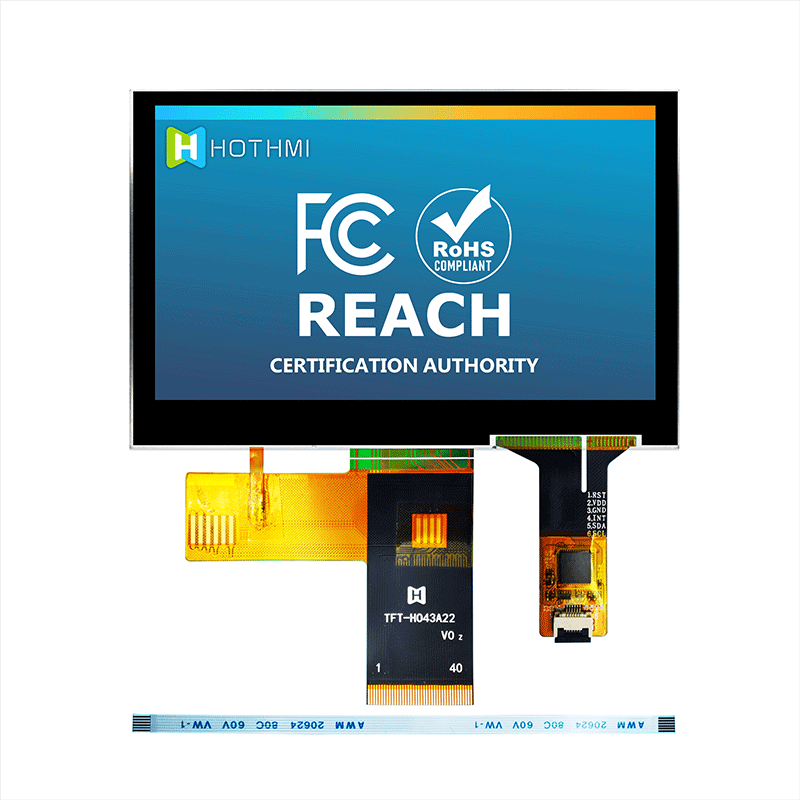

This 480x272 sunlight readable TFT is equipped with a powerful backlight for visibility in bright lighting conditions including direct sunlight. LCD display with SPI/MCU multi-interface and full viewing angle. This LCD monitor is RoHS compliant and has a 10-point multi-touch capacitive touchscreen.
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.3 | Inch | ||

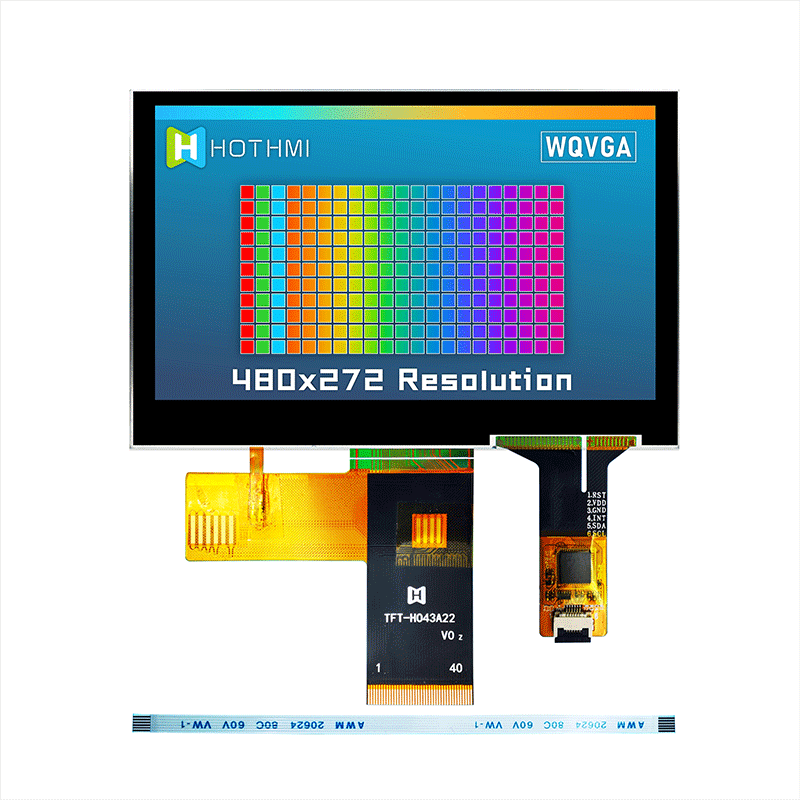

Number of Pixels | 480x272 | dots | ||
Active Area | 95.04x53.86 | mm | ||
Outline Dimension | 105.46x67.11x4.30 | mm | ||
Viewing Direction | FULL O'clock | - | ||

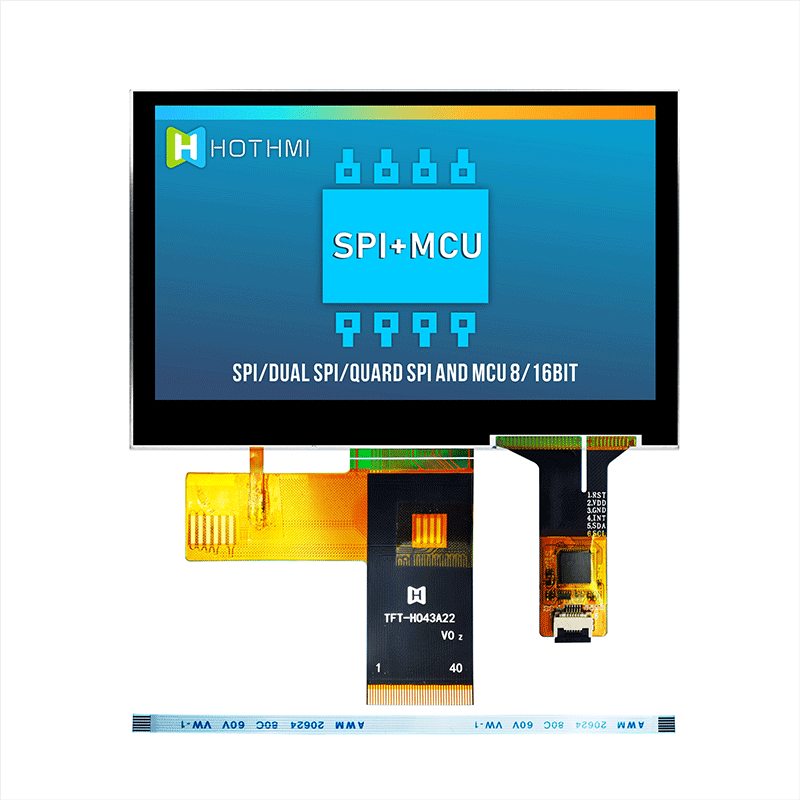

Interface | Supports SPI/Dual SPI/Quard SPI and MCU 8-bit and 16-bit interfaces | - | ||
Driver IC | T.B.D | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | White LED/12 PCS/6 PCS serial 2 ways parallel | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3V | V | ||
TFT Operation AT | -30 ～ +80 | ℃ | ||
TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
Pin NO. | Symbol | Description |
| 1 | YU/INT | Res touch control pins, not connected when not in use |
| 2 | XL/RTN | Res touch control pins, not connected when not in use |
| 3 | YD/SDA | Res touch control pins, not connected when not in use |
| 4 | XR/SCL | Res touch control pins, not connected when not in use |
| 5 | CTP-VDD | CTP Power supply |
| 6 | VCI | Power supply |
| 7 | NC | No connection |
| 8 | LEDK | LED cathode |
| 9 | NC | No connection |
| 10 | LEDA | LED anode |
| 11 | NC | No connection |
12 | SPI4W | Standard SPI 3/4-wire Select. SPI4W="VCI", 4-wire SPI.SPI4W="GND", 3-wire SPI |
| 13 | NC | No connection |
| 14 | IM1 | Interface selection, set by IM [1 ～ 0] pins |
| 15 | NC | No connection |
| 16 | IM0 | Interface selection, set by IM [1 ～ 0] pins |
| 17 ～ 24 | DB[0 ～ 7] | Parallel Interface Data Bus |
| 25 ～ 32 | DB[8 ～15] | Parallel Interface Data Bus |
| 33 | RESX | Global reset. Active low, Internal pull high |
34 | WR | Write enable in the MCU parallel interface Clock input in SPI interface, pull high internally |
35 | SDA | Serial communication data input and output, internal pull low. |
| 36 | CS | Chip select, internal pull high |
37 |
RD | Read the enable input in the MCU parallel interface and pull it high internally. |
38 |
D/CX | Data or Command flag,Internal pull high. DCX = “VCI” is data；DCX = “GND” is command |
| 39 ～ 40 | GND | Power supply ground |
CTP Pin Description
Pin NO. | Symbol | Description |
| 1 | RTN | System reset |
| 2 | VDD | Power supply |
| 3 | GND | Power supply ground |
| 4 | INT | Interrupt signal |
| 5 | SDA | IIC data signal |
| 6 | SCL | IIC clock signal |
