Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  5寸TFT彩屏 /480*854分辨率 /全視角IPS工藝 /MIPI接口 /TFT-H050A11FWIST4C20
  • Model : 5 inch TFT /480*854 resoliution/highlight/Full Viewl/TFT-H050A11FWIST4C20

    Product type:TFT horizontal screen

    Show contents:480x854

    Outline size(mm) :72.00x122.245x4.15

    Size of View Window(mm):5.0

    Display size(mm) :5.0

    Effective size(mm):61.6320x109.6536

    Product application:Outdoor Instrumentation

    Visual angle:Full view

    Backlight type or brightness:500cd/m2

    Connection PIN Number:20+6PIN

    Interface mode:MIPI

    Special instructions:With CTP capacitive touch chip GT911

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7701

    PDF download
Product description

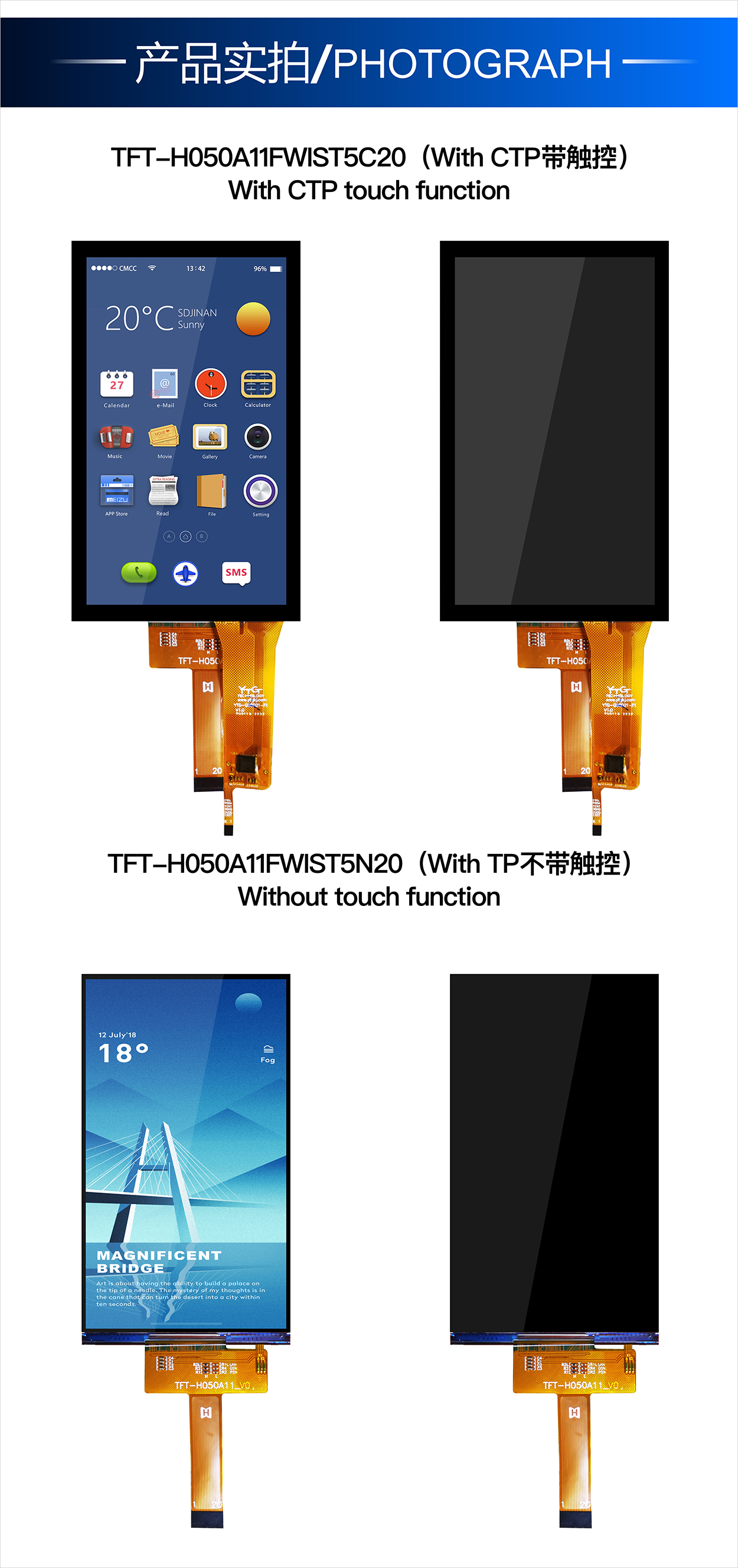

Product  Description The TFT-H050A11FWIST4C20 is a 5.0 inch wide temperature IPS  TFT-LCD monitor with projected capacitive touch screen with a  resolution of 480x854 pixels. The module has built-in ST7701 driver IC  and supports MIPI interface. TFT-H050A11FWIST4C20 adopts IPS panel,  which has the advantage of wider viewing angle, left: 80/right: 80/up:  80/down: 80 degrees (typical), contrast ratio 800:1 (typical),  brightness 500 nits (typical) value), glare panel, 16:9 aspect ratio.  The touch screen has built-in GT911 IC, which supports I2C interface and  multi-touch function. The H050A11 model has a projected capacitive  touch panel (PCAP), but no touch panel option (TFT-H050A11FWIST5N20).  The supply voltage (VCC) of the TFT-H050A11FWIST4C20 is 3.0V to 3.6V,  with a typical value of 3.3V. It can work in temperatures from -20°C to  +70°C and storage temperatures from -30°C to +80°C.
