Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  2.3寸TFT橫屏|320*240分辨率|12H視角|8080 MCU 8/16-Bit接口|TFT-H023A61LQTIL2N40
  • Model : 2.3 inch TFT horizontal screen /320*240 resolution/TN/8080 MCU 8/16-Bitinterface/TFT-H023A61LQTIL2N40

    Product type:TFT橫屏

    Show contents:320x240

    Outline size(mm) :51.00x45.8x2.5

    Size of View Window(mm):2.3

    Display size(mm) :2.3

    Effective size(mm):46.75x35.06

    Product application:Instrumentation

    Visual angle:12H

    Backlight type or brightness:400cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:MCU

    Working temperature:-20~70℃

    Power supply voltage:2.8V

    Driver chip model:ILI9342C

Product description

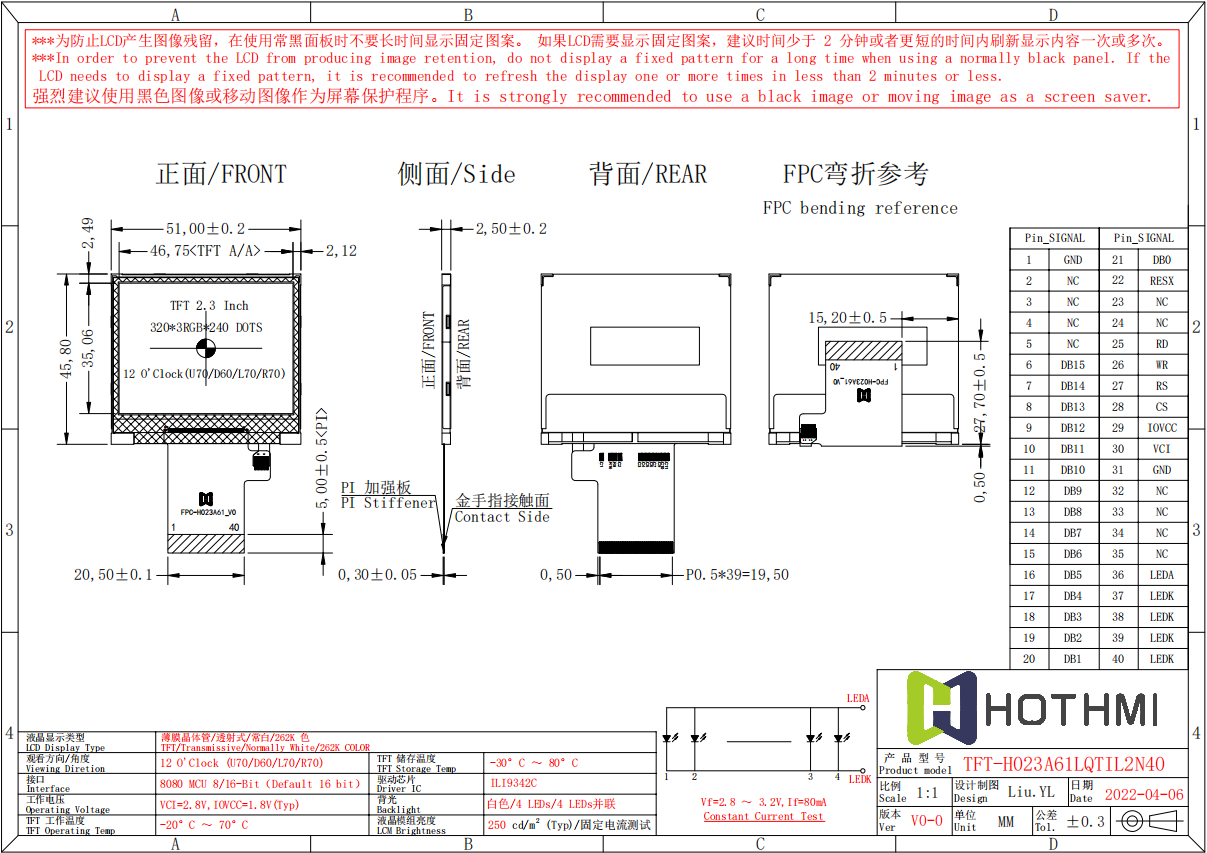

TFT-H023A61LQTIL2N40is an industrial-grade horizontal display TFT LCD with a resolution of 320*240 pixels, a typical brightness of 400 nits, a viewing angle of 12H, and a supply voltage (VCI) of 2.8V~3.2V , the typical value is 2.8V. The working temperature is -20℃~+70℃, and the storage temperature is -30℃~+80℃. The products are used in various small smart devices, home appliances, monitors, etc.image.png
