Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  4.3寸LVDS接口TFT橫屏/800*480分辨率/IPS全視角/TFT-H043A13SVIST6N40

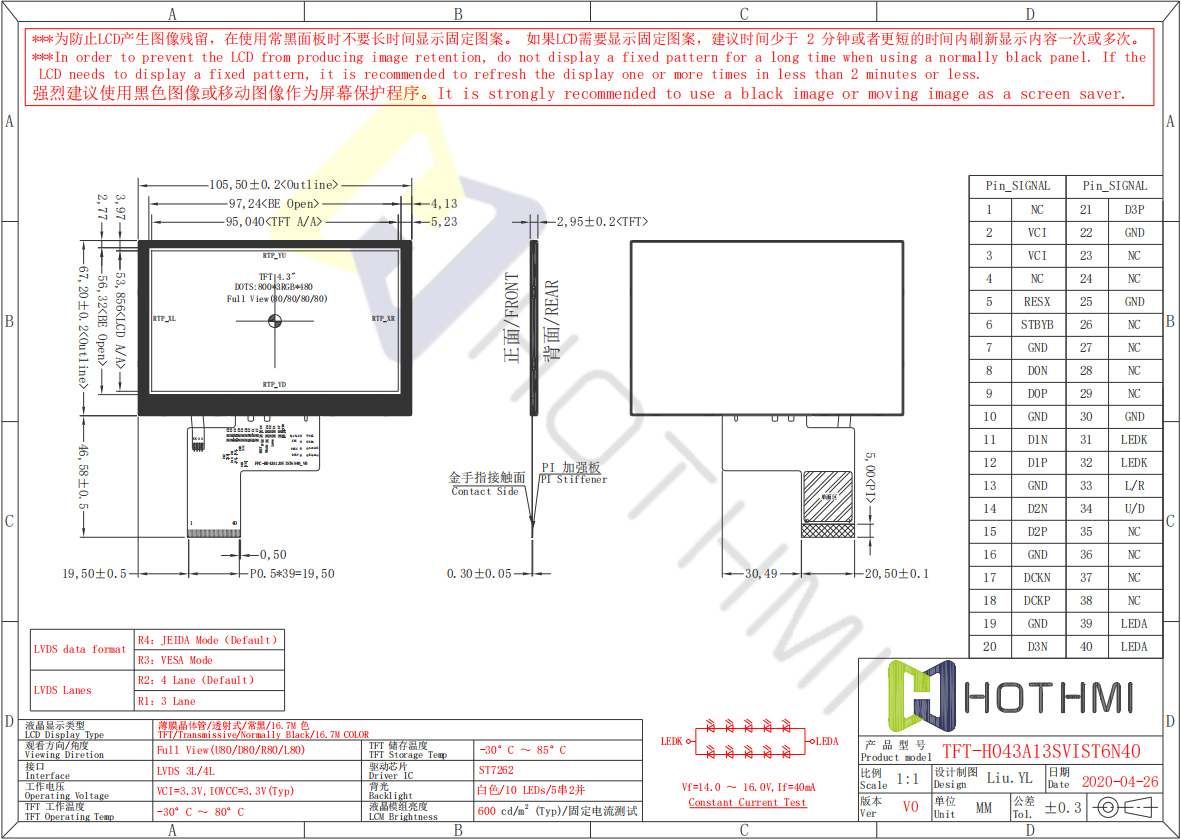

  • Model : 4.3 inch TFT LVDS Interface /800*480 resolution/Full View/TFT-H043A13SVIST6N40

    Product type:TFT LCD

    Show contents:800x480

    Outline size(mm) :105.5x67.2x4.55

    Size of View Window(mm):4.3

    Display size(mm) :4.3

    Effective size(mm):95.04x53.856

    Product application:Instruments and apparatus

    Visual angle:Full View

    Backlight type or brightness:600cd/m2

    Connection PIN Number:40pin

    Interface mode:LVDS

    Special instructions:LVDS 3L/4L

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7262
