Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  2.8寸TFT/240*320分辨率/12H視角/全兼容接口/帶CTP電容觸控/TFT-H028C2QVTST4C45
  • Model : 2.8 inch TFT/240*320 resolution/12H viewing angle/full compatible interface/with CTP capacitive touch/TFT-H028C2QVTST4C45

    Product type:TFT LCD

    Show contents:240x320

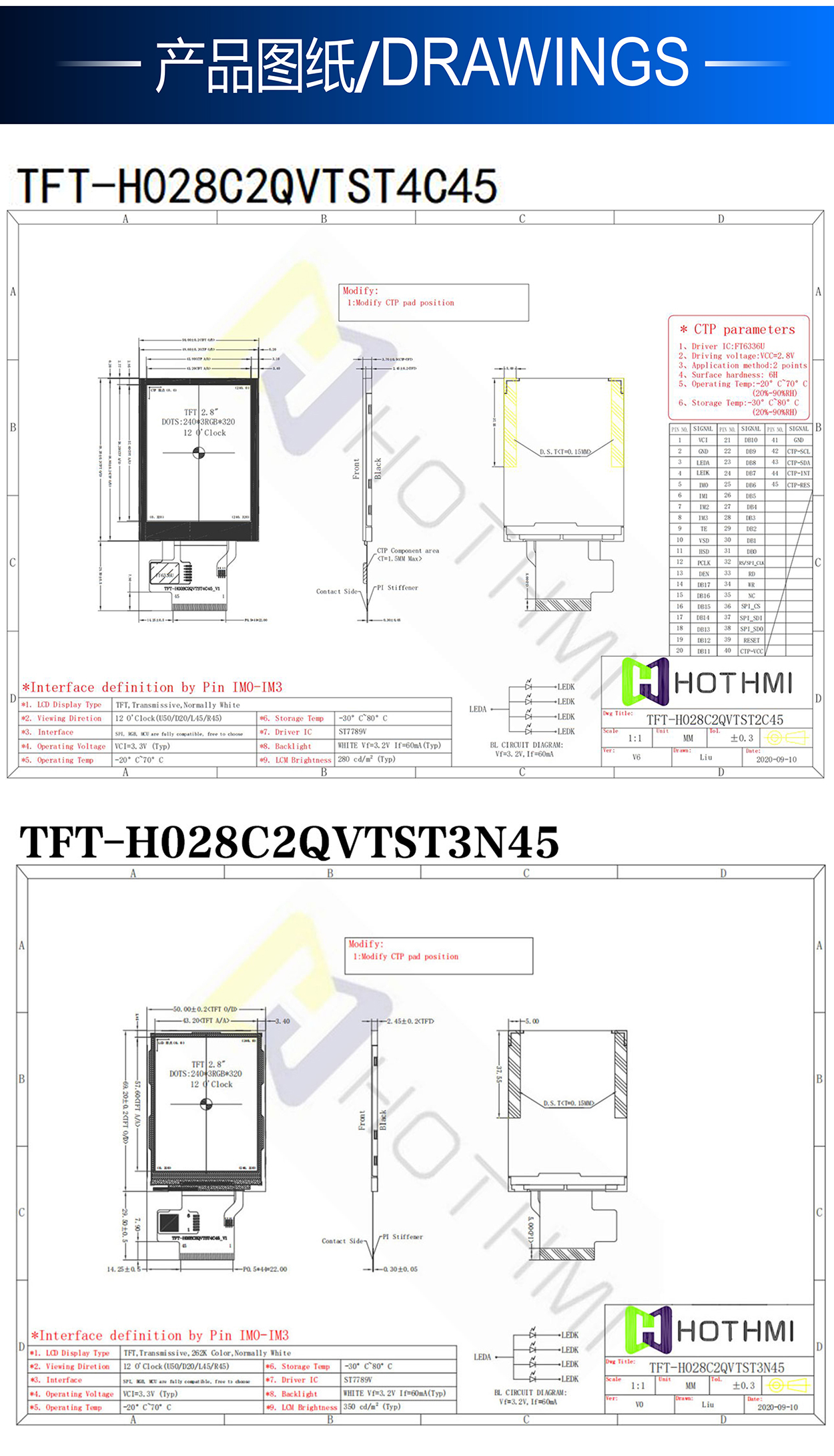

    Outline size(mm) :50.00x69.20x2.45

    Size of View Window(mm):2.8

    Display size(mm) :2.8

    Effective size(mm):43.20x57.60

    Product application:Instruments and apparatus

    Visual angle:12H

    Backlight type or brightness:350cd/m2

    Connection PIN Number:FPC-45PIN

    Interface mode:SPI

    Special instructions:With CTP capacitive touch chip

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7789V

    PDF download
Product description


Product Description

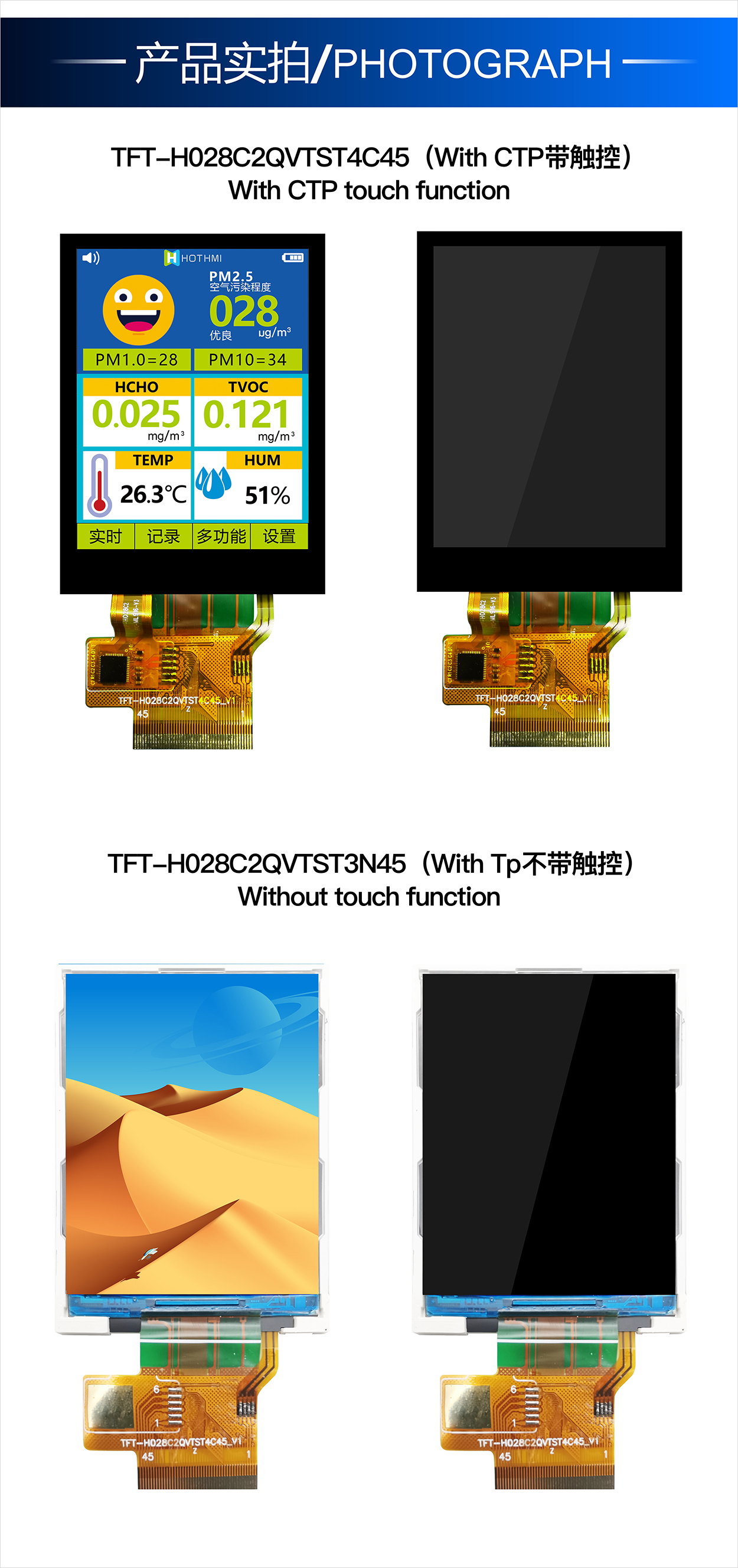

The TFT-H028C2QVTST2C45 is a 2.8-inch wide temperature IPS TFT-LCD display with projected capacitive touchscreen with a resolution of 240x320 pixels. The module has built-in ST7789V driver IC and supports SPI/RGB/MCU fully compatible interface. TFT-H028C2QVTST2C45 adopts IPS panel, which has the advantage of wider viewing angle, left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typ.), contrast ratio 800:1 (typ.), brightness 280 nits (typ. value), glare panel, 16:9 aspect ratio. The touch screen has built-in FT6336U IC, which supports I2C interface and multi-touch function. The H028C2Q model has a projected capacitive touch panel (PCAP) but no touch panel option (TFT-H028C2QVTST3N45). The supply voltage (VCC) of the TFT-H028C2QVTST2C45 is 3.0V to 3.6V, with a typical value of 3.3V. It can work at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C. 2.8 inch TFT color screen /240*320 resolution /12H White LED /RGB/SPI/MCU interface /TFT-H028C2QVTST2C45/used in handheld instruments
