Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  2.4寸TFT/240*320分辨率/手持檢測儀液晶屏/高亮/SPI接口/TFT-H024B11QVIST8N41
  • Model : 2.4 inch TFT /240*320 resoliution/highlight/LCD screen of handheld detector/Full View/SPI 4-line serial/TFT-H024B11QVIST8N41

    Product type:TFT LCD

    Show contents:240x320

    Outline size(mm) :42.52x59.86x2.20

    Size of View Window(mm):2.4

    Display size(mm) :2.4

    Effective size(mm):36.72x48.96

    Product application:Instrumentation

    Visual angle:Full View

    Backlight type or brightness:800cd/m2

    Connection PIN Number:FPC-41PIN

    Interface mode:SPI

    Special instructions:MCU 8/9/16/18 ,SPI 3L/4L

    Working temperature:-20~70℃

    Power supply voltage:2.8V

    Driver chip model:ST7789V

Product description

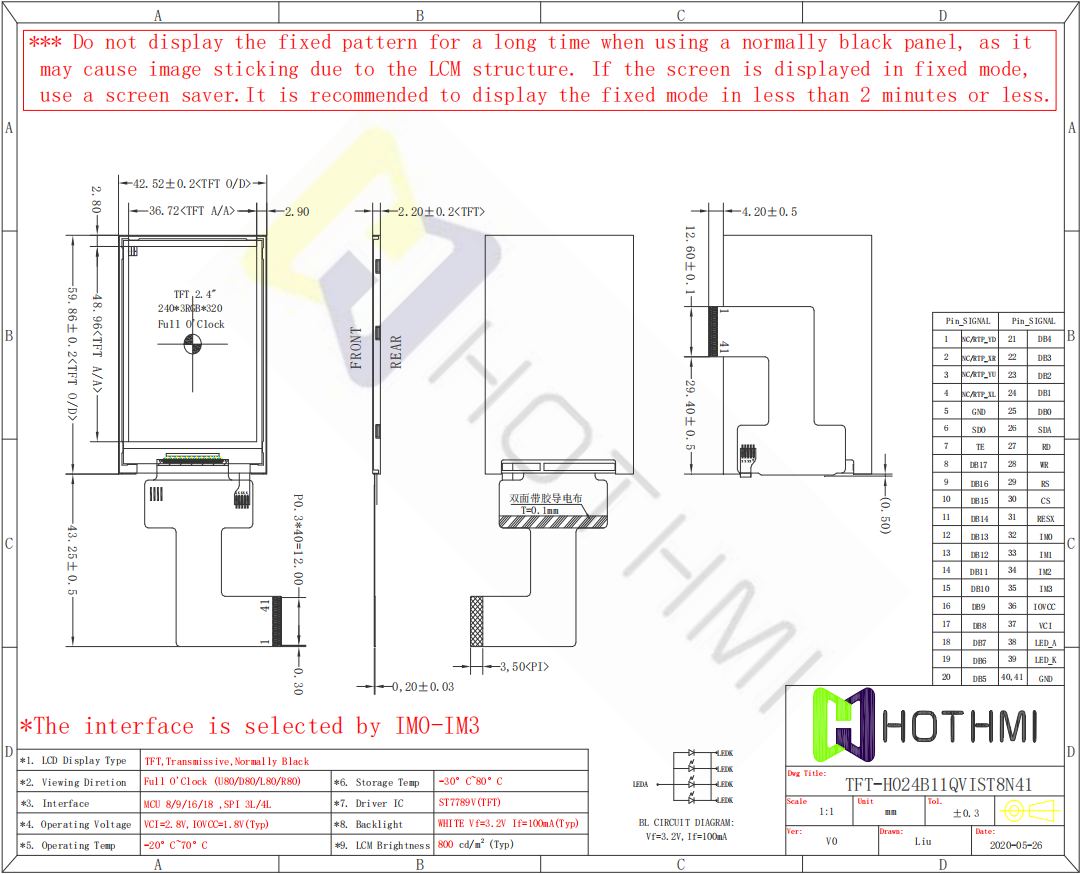

TFT-H024B11QVIST8N41 is a 2.4-inch TFT color LCD screen carefully designed by Xinhongtai HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU 8/9/16/18 interface and 3-wire SPI, 4-wire SPI serial interface, no need for peripheral circuits, 41PIN plug-in FPC can be connected to the main board (optional connector), single power supply DC2.8V power supply. This TFT module can be equipped with a touch screen, and all materials comply with the RoHS standard of environmental protection requirements. It is widely used in various instruments, smart devices, analytical instruments, hand-held instruments, driving recorders, etc. : 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi, etc.image.png
