Location：Home  >  Product center  >  TFT display &OLED &E-Paper  >  An on-board & Special TFT Module  >  1.4寸TFT方屏/240*240分辨率/全視角/SPI接口/TFT-H014A3DQIST4N10
  • Model : 1.4 inch TFT /240*240resolution/full view/SPI 4-line 8bit serial/TFT-H014A3DQIST4N10

    Product type：TFT

    Show contents：240x240

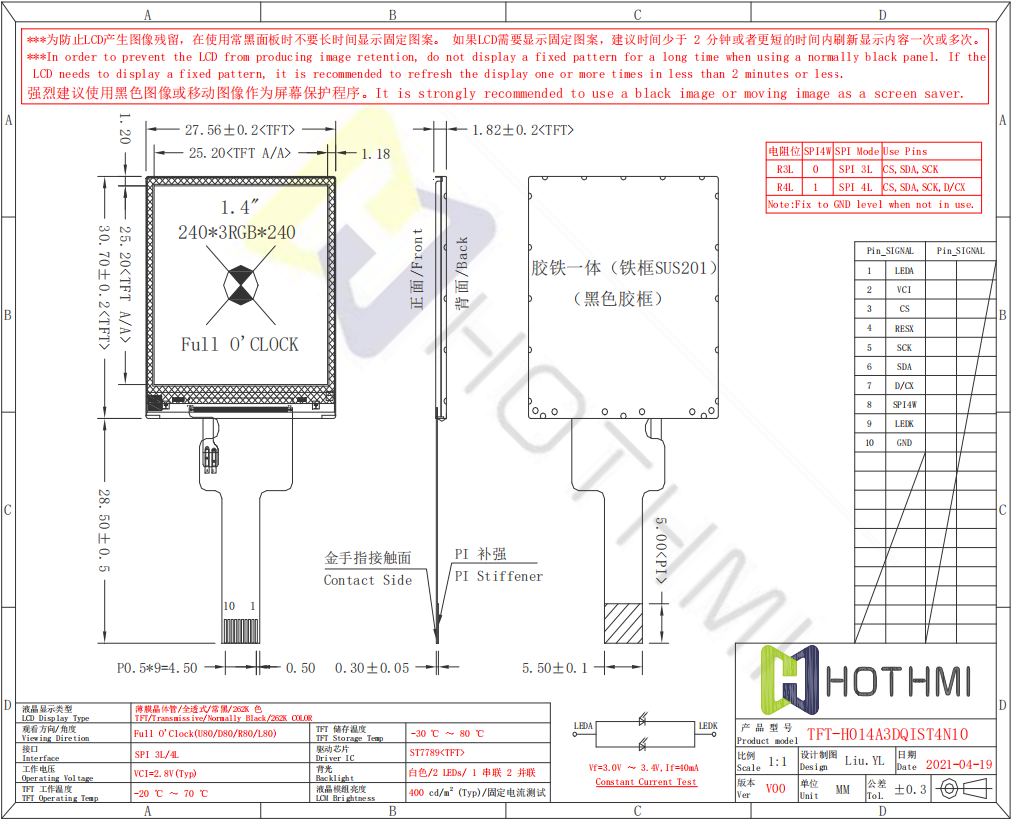

    Outline size(mm) ：27.56x30.70x1.82

    Size of View Window(mm)：1.4

    Display size(mm) ：1.4

    Effective size(mm)：25.2x25.20

    Product application：Instruments and apparatus, smartwatches

    Visual angle：Full View

    Backlight type or brightness：400cd/m2

    Connection PIN Number：FPC-10PIN

    Interface mode：SPI

    Special instructions：Touch screen availbale

    Working temperature：-20~70℃

    Power supply voltage：3.3V

    Driver chip model：ST7789

    PDF download
Product description

     1.4inch TFT LCD (TFT-H014A3DQIST4N10) is a 1.4inch  TFT color LCD module with 240*240 resolution, which is carefully designed by HOTDISPLAY,65K / 262K true color, builtin st7789 controller, support 4-wire SPI, 3-wire serial interface. 10pinfpc connection (optional connector), 3.2Vvoltage。 All materials meet the ROHS standard of environmental protection requirements. This module can be equipped with touch screen, which is widely used in various instruments, intelligent equipment, analytical instruments, hand-held instruments, driving recorder, etc. it is suitable for a variety of single-chip development platforms, such as 8051, PIC, AVR, Arduino, arm and Raspberry PI.
