Location：Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  10寸TFT|10.1寸TFT橫屏|1280*800IPS寬視角|LVDS接口|厚度5.0高亮度/TFT-H101A10WXIFTKN40
  • Model : 10.1-inch TFT horizontal screen|1280*800IPS wide viewing angle|LVDS interface|thickness 5.0 high brightness/TFT-H101A10WXIFTKN40

    Product type：TFT LCD

    Show contents：1280x800

    Outline size(mm) ：229.16x148.8x4.7

    Size of View Window(mm)：10.1

    Display size(mm) ：10.1

    Effective size(mm)：216.96x135.6

    Visual angle：Full View

    Backlight type or brightness：1000cd/m2

    Connection PIN Number：FPC-40PIN

    Interface mode：LVDS

    Special instructions：Anti-static ESD 8KV

    Working temperature：-20~70℃

    Power supply voltage：3.3v

    Driver chip model：EK79202B1(TFT)

    PDF download
Product description

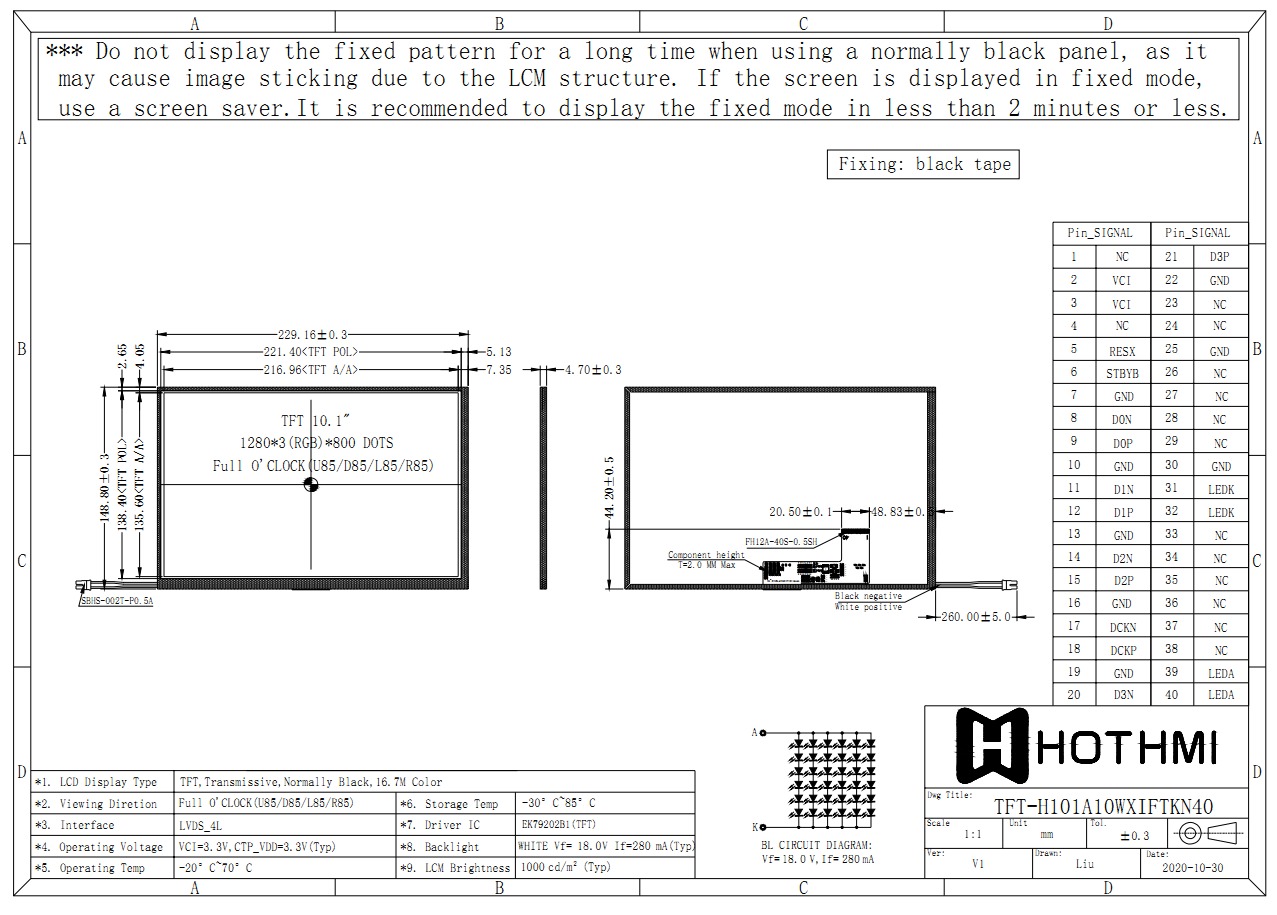

10.1-inch TFT horizontal screen|1280*800IPS wide viewing angle|LVDS interface|thickness 5.0 high brightness/TFT-H101A10WXIFTKN40image.png
