Location：Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  10.1寸TFT橫屏|1024*600IPS寬視角|LVDS接口|厚度5.0高亮度TFT-H101A2WSIFT7N40
  • Model : 10.1 inch TFT landscape |1024 * 600 ips wide Angle of view | LVDS interface thickness |5.0 high brightness TFT - H101A2WSIFT7N40

    Product type：TFT LCD

    Show contents：1024x600

    Outline size(mm) ：235.0x143.0x5.0

    Size of View Window(mm)：10.1

    Display size(mm) ：10.1

    Effective size(mm)：222.72x125.28

    Product application：Industrial equipment

    Visual angle：Full View

    Backlight type or brightness：1000cd/m2

    Connection PIN Number：40pin

    Interface mode：LVDS

    Working temperature：-20~70℃

    Power supply voltage：3.3V

    Driver chip model：EK79001+EK73215

Product description

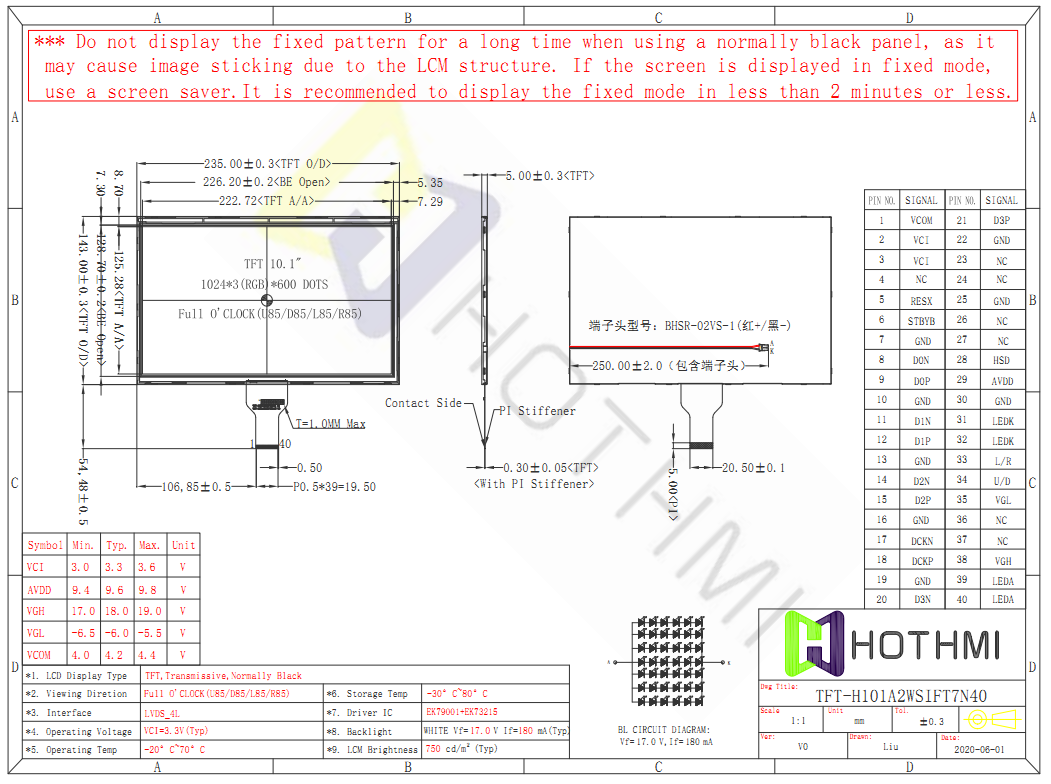

10.1 inch TFT landscape |1024 * 600 ips wide Angle of view |  LVDS interface thickness |5.0 high brightness TFT - H101A2WSIFT7N40image.png
