Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  8.0寸TFT彩屏|寬視角800*600分辨率|帶電阻觸摸屏|醫療設備專用|兼容EJ080NA-05B|TFT-H080A1
  • Model : 8 inch TFT | 800 * 600 resolution | medical equipment dedicated | compatible EJ080NA - 05B| TFT - H080A1

    Product type:TFT LCD

    Show contents:800x600

    Outline size(mm) :183.0x141.0x7.0

    Size of View Window(mm):8.0

    Display size(mm) :8.0

    Effective size(mm):162.0x121.5

    Product application:Medical equipment

    Visual angle:12 o 'clock

    Backlight type or brightness:300cd/m2

    Connection PIN Number:50PIN

    Interface mode:RGB

    Special instructions:RTP

    Working temperature:-20~70 ℃

    Power supply voltage:3.3V

    Driver chip model:HX8264+HX8696

    PDF download
Product description

8 inch TFT  | 800 * 600 resolution  | medical equipment dedicated  |  compatible EJ080NA - 05B| TFT - H080A1

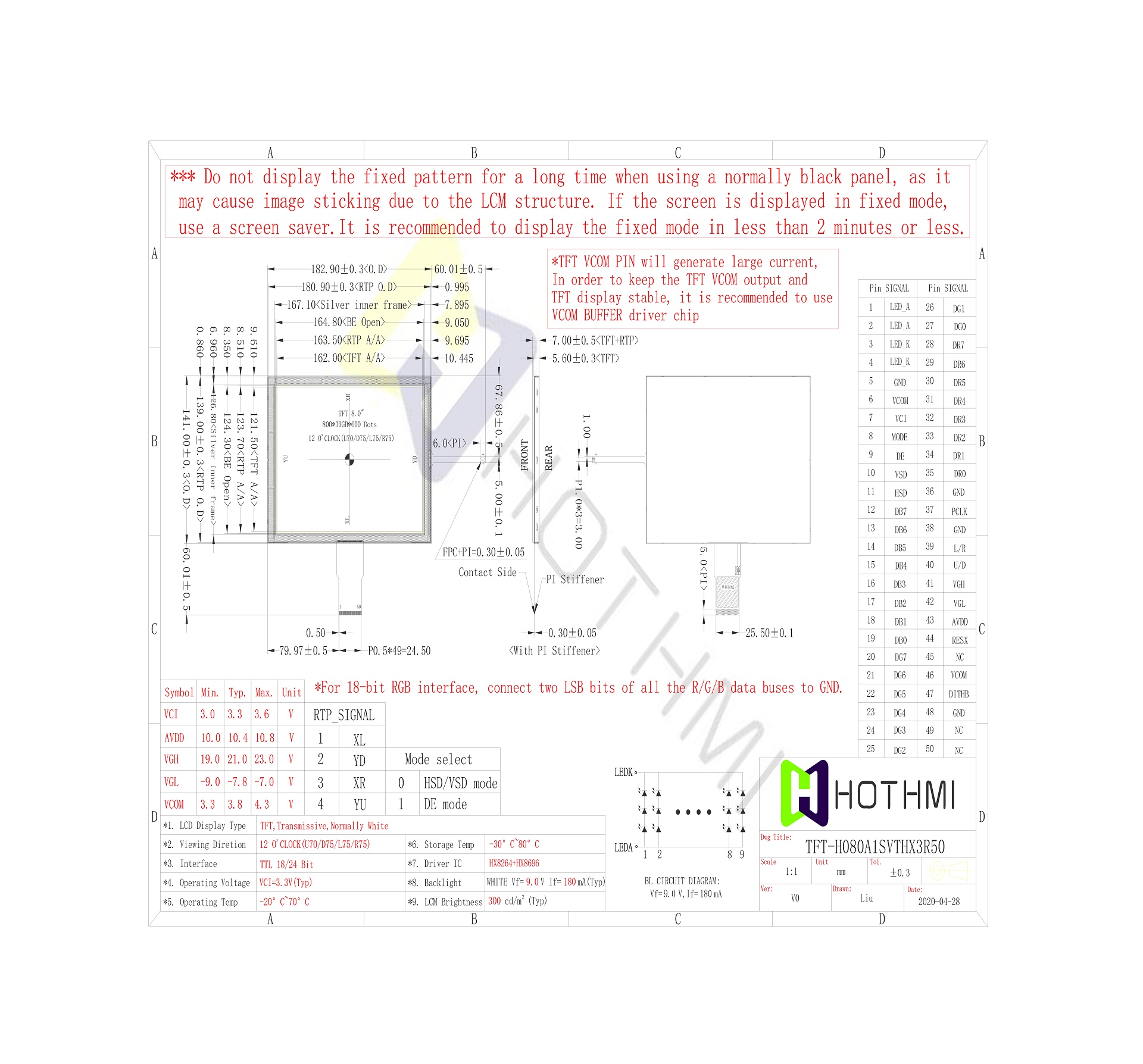

SPEC-H080A1SVTHX3R50_V0 4.jpg
