Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  10.1寸TFT彩屏 電容觸摸/800*1280寬視角IPS/MIPI_4L/10.1寸/TFT-H101W8WXIWZ1C40
  • Model : 10.1寸TFT CTP/800*1280Full viewIPS/MIPI_4L/10.1寸/TFT-H101W8WXIWZ1C40

    Product type:TFT LCD

    Show contents:800x1280

    Outline size(mm) :240.58x159.36x4.4

    Size of View Window(mm):10.1

    Display size(mm) :10.1

    Effective size(mm):216.58x135.36

    Visual angle:Full View

    Backlight type or brightness:180cd/m2

    Connection PIN Number:40PIN

    Interface mode:MIPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3v

    Driver chip model:EK79029+GT7291

Product description

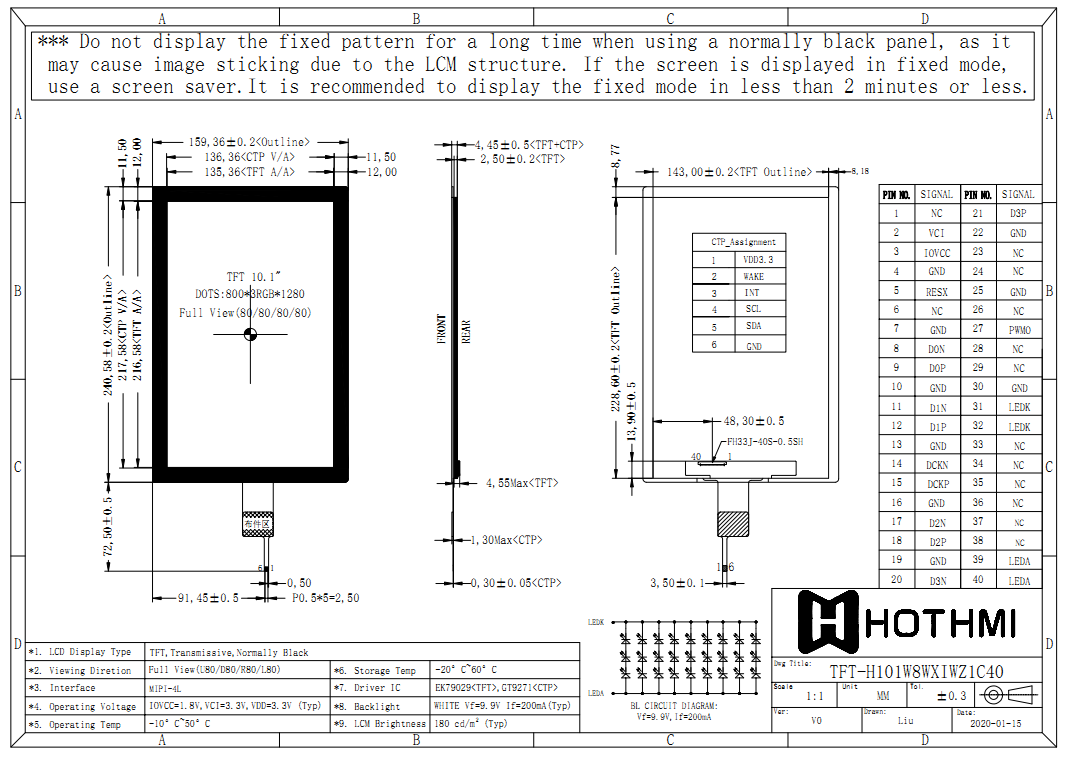

10.1寸TFT+CTP/1280*800Full viewIPS/MIPI_4L/10.1寸/TFT-H101W8WXIWZ1C40image.png
