Location：Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  3.5寸橫屏豎屏兩用TFT/640*480分辨率/RGB接口/TFT-T350MTVH-01
  • Model : 3.5-inch horizontal and vertical screen dual-use TFT/640*480 resolution/RGB interface/TFT-T350MTVH-01

    Product type：TFT LCD

    Show contents：640x480

    Outline size(mm) ：85.0x64.0x3.0

    Size of View Window(mm)：3.5

    Display size(mm) ：3.5

    Effective size(mm)：71.04x53.28

    Visual angle：9H

    Backlight type or brightness：500cd/m2

    Connection PIN Number：FPC-60PIN

    Interface mode：RGB

    Working temperature：-20~70℃

    Power supply voltage：2.8v

    Driver chip model：HX8363A

Product description

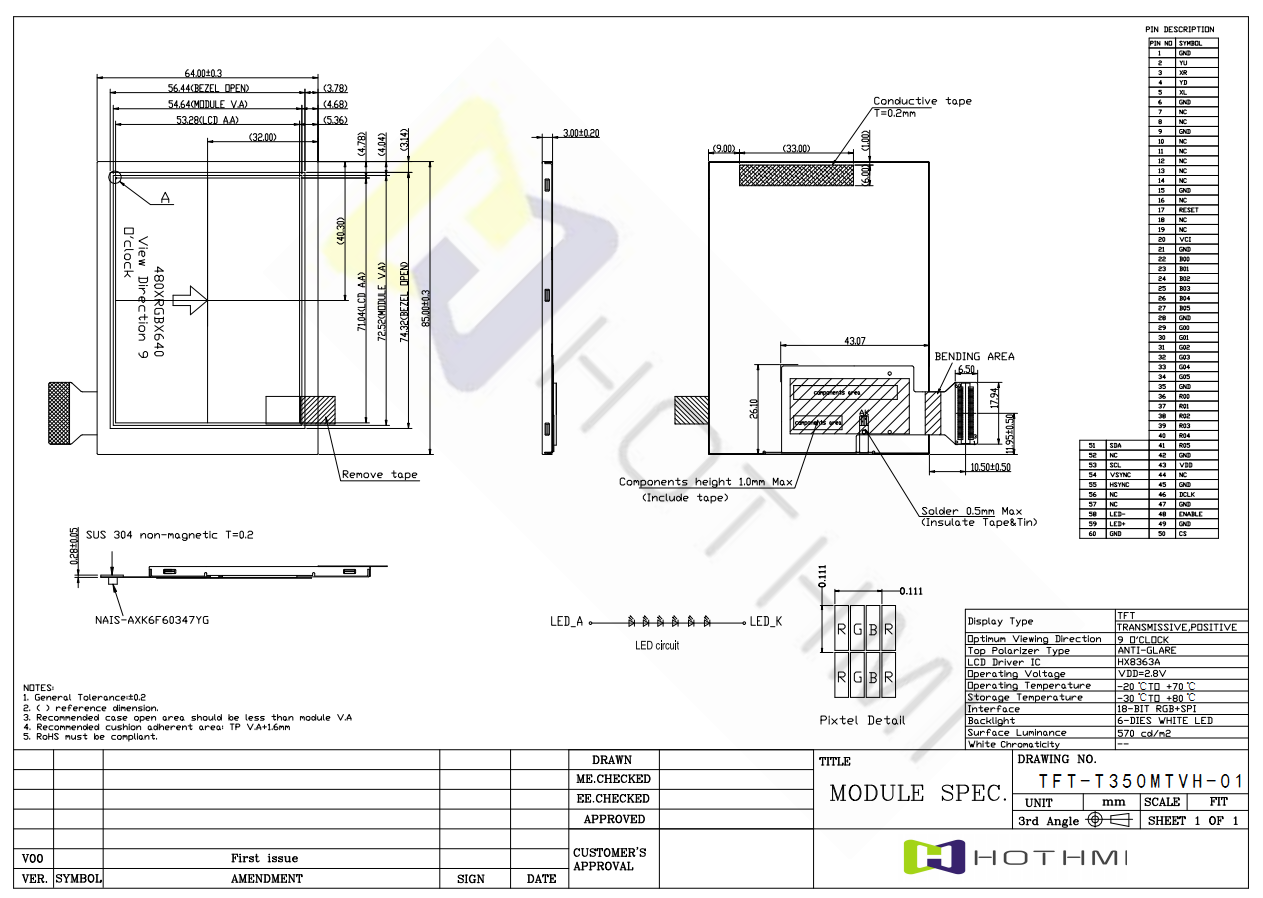

3.5-inch horizontal and vertical screen dual-use TFT/640*480 resolution/RGB interface/TFT-T350MTVH-01image.png
