Location：Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules |MCU8/16|SPI 3/4L|WIth Board  >  7.0寸8080 MCU接口驅動 /TFT LCM/800*480分辨率 /7寸HTM070A01

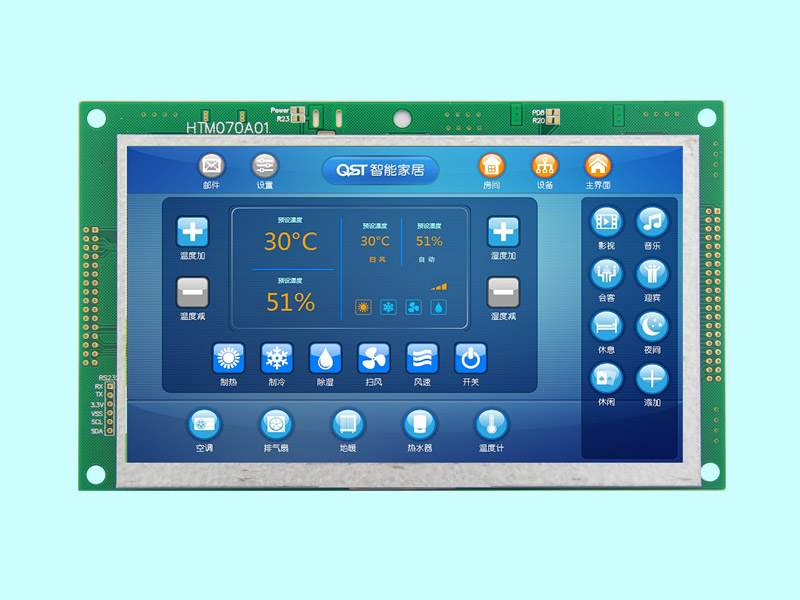

  • Model : 7.0"8080 MPU interface(8/16 Bit Bus)/TFT LCM/800*480分辨率 /7"HTM070A01

    Product type：TFT LCM

    Show contents：800x480

    Outline size(mm) ：185.52x112.12x12.

    Size of View Window(mm)：7.0

    Display size(mm) ：7.0

    Effective size(mm)：156.4x89.0

    Product application：Vehicle, medical, industrial control

    Visual angle：6H

    Interface mode：MCU

    Special instructions：Anti-static ESD 8KV

    Working temperature：-20~70℃

    Power supply voltage：3.3v

    Driver chip model：SSD1963

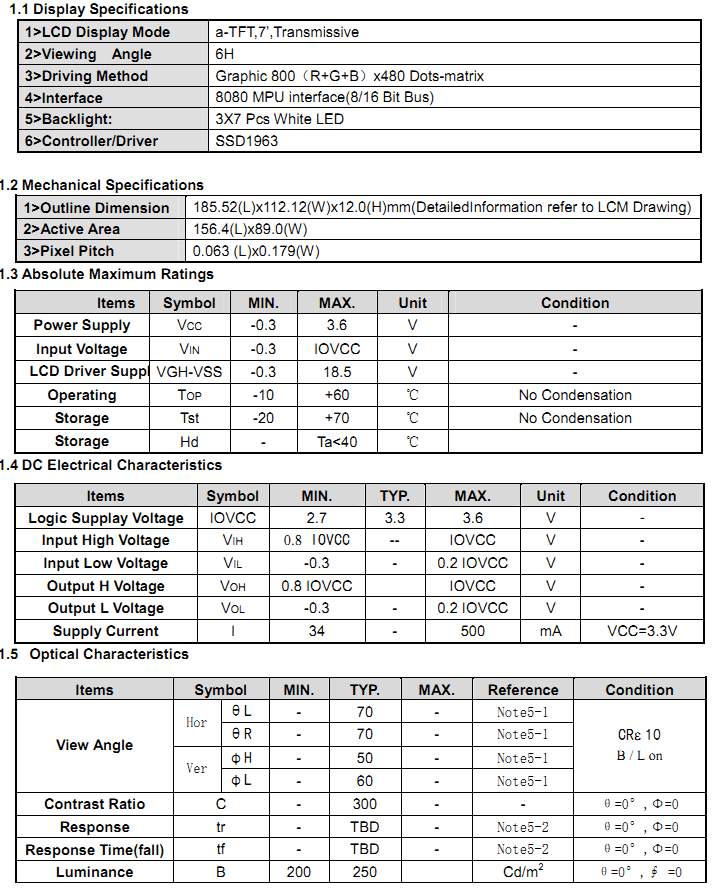

    PDF download
Product description
