Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  1.44寸 128x128分辨率/串并口兼容/可選觸摸屏/TFT-H014A1QQTST2N26
  • Model : 1.44 inch/128*128 resolution/serial and parallel compatible/optional touch screen/TFT-H014A1QQTST2N26

    Product type:TFT Strip

    Show contents:128x128

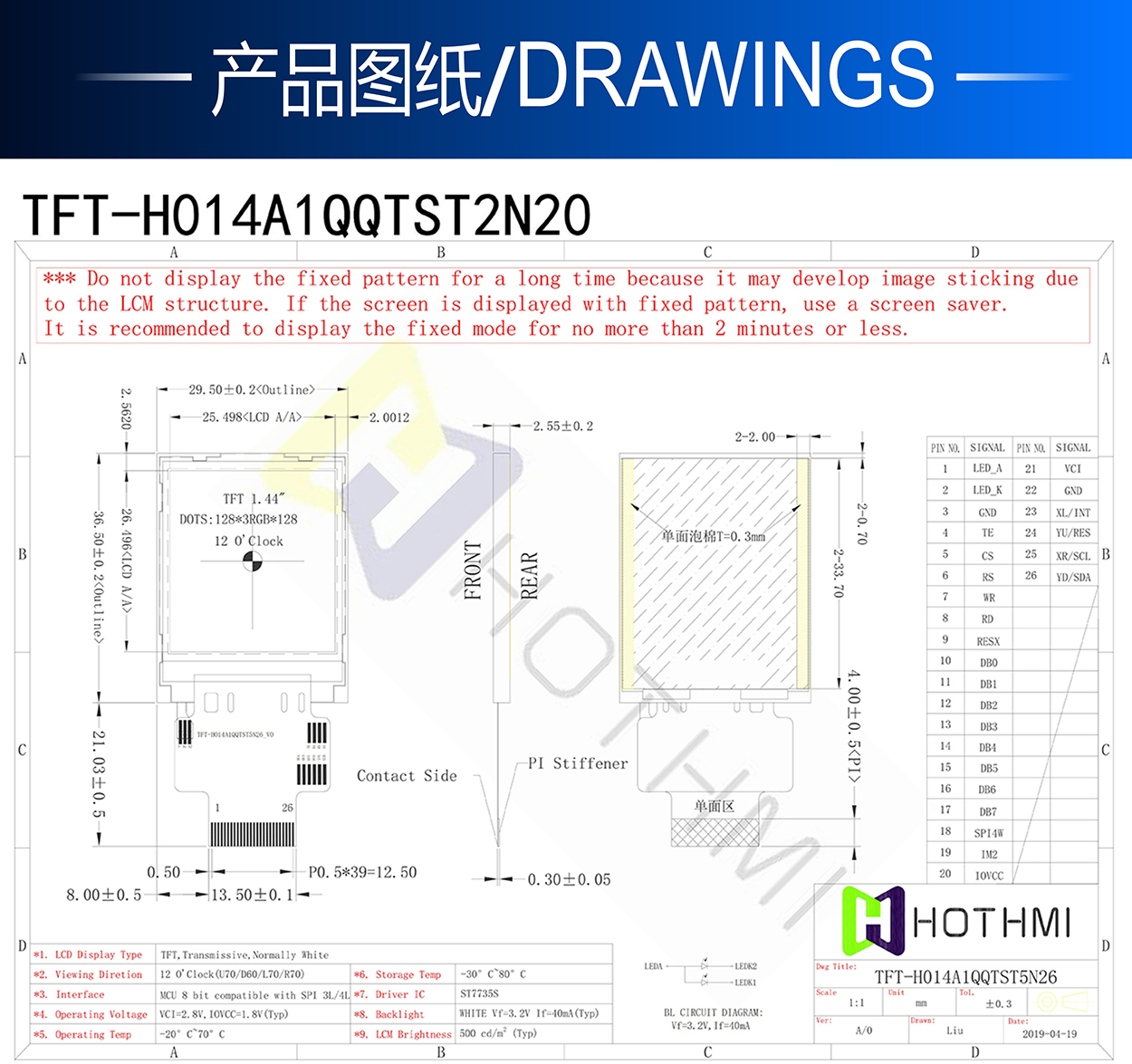

    Outline size(mm) :29.5x36.5x2.55

    Size of View Window(mm):1.44

    Display size(mm) :1.44

    Effective size(mm):25.498x26.496

    Product application:Instruments and meters, smart watches

    Visual angle:12OClock(U70/D60/L70/R70)

    Backlight type or brightness:500cd/m2

    Connection PIN Number:26PIN0.5

    Interface mode:MCU

    Working temperature:-20~70℃

    Power supply voltage:2.8V

    Driver chip model:ST7735S

Product description

Product Description TFT-H014A1QQTST5N26 is a 1.44-inch full-color TFT LCD display module with a resolution of 128x128 pixels and an aspect ratio of 1:1. The TFT module adopts ST7735S driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 500 nits (typical value). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.
