Location:Home  >  Product center  >  TFT display &OLED &E-Paper  >  Wide View TFT Display Screen  >  7寸TFT|1024*600高清寬視角高亮帶電容觸摸7寸TFT-H7001WSIF8C40

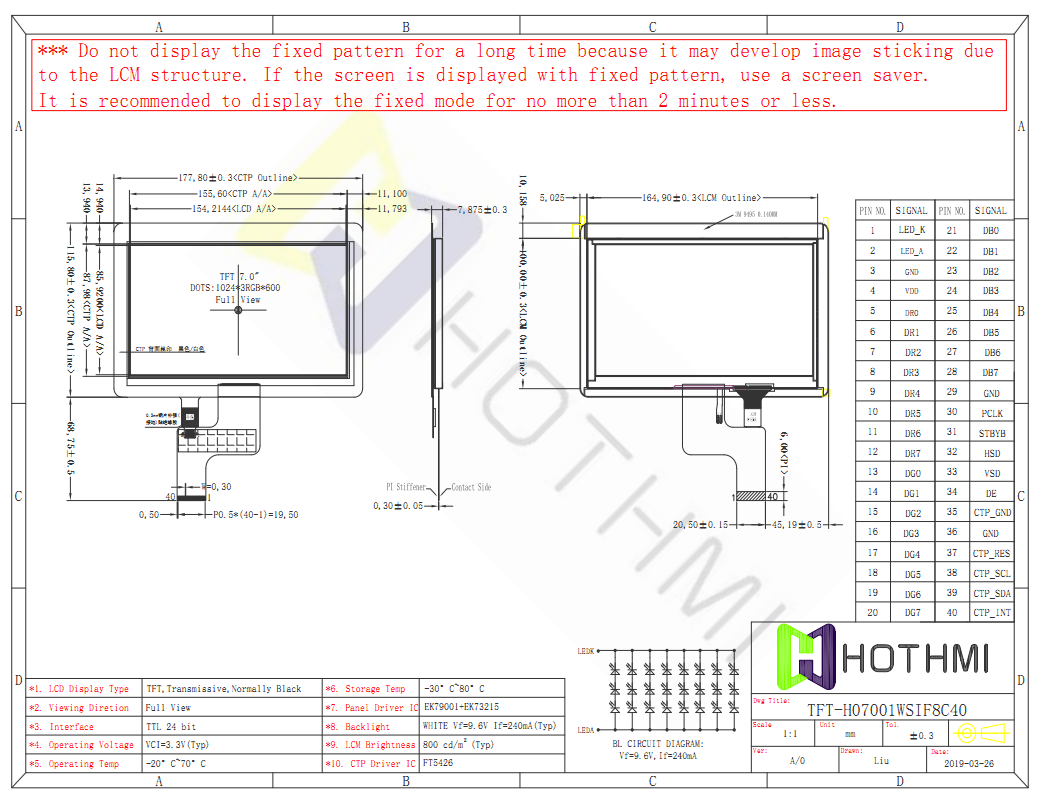

  • Model : 7.0"HD1024*600/Full View/CTP/TFT-H7001WSIF8C40

    Product type:TFT LCD

    Show contents:1024x600

    Outline size(mm) :177.8x115.8x7.88

    Size of View Window(mm):7.0

    Display size(mm) :7.0

    Effective size(mm):154.21x85.92

    Visual angle:Full View

    Backlight type or brightness:800cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:RGB

    Special instructions:TTL 24 bit

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:EK79001+EK73215,觸摸芯片F(xiàn)T5426

    PDF download
Product description

7.0"HD1024*600/Full View/CTP/TFT-H7001WSIF8C40

This is a 7-inch high-definition full-view TFT display with capacitive touch designed by the engineer. The FPC has a built-in T-CON circuit, which can be directly driven by only 3.3V, and has a built-in 10-point touch chip. The peripheral circuit of the customer's motherboard improves the efficiency of the customer's development of the product. Ideal for smart home products and industrial equipment human-machine interfaces.
